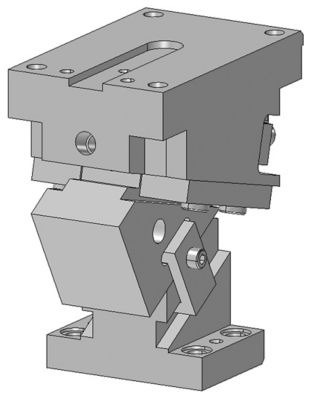

V Shape Guide Flying Cam Units for Trim & Flange MGFVT / MEVTN 65
Click this image to zoom it.
Move the mouse over the image to zoom
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| MGFVT65-05 |
| MGFVT65-15 |
| MGFVT65-25 |
| MGFVT65-40 |
| MGFVT65-55 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Tilt angle (°) |
|---|---|---|---|---|---|
MYR 2,042.61 | 1 Piece(s) | 23 Day(s) or more | 5 | ||
MYR 2,042.61 | 1 Piece(s) | 23 Day(s) or more | 15 | ||
MYR 2,042.61 | 1 Piece(s) | 23 Day(s) or more | 25 | ||
MYR 2,042.61 | 1 Piece(s) | 23 Day(s) or more | 40 | ||
MYR 2,042.61 | 1 Piece(s) | 23 Day(s) or more | 55 |
Loading...
Basic Information
| Type | High precision / High durability | Cam Types | For Trim & Flange -V Shape Guide- | Capacity(tonf) | 4 |
|---|---|---|---|---|---|
| Installation space(mm) | 65 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
