Single Axis Actuators LX20 Standard / Cover Type
Part Number
Configured Part Number is shown.
| Specifications | |
| LX20 | |
| Standard / Cover | |
| Screw Shaft Dia. (mm) | 6 |
| Lead (mm) | 1, 5 |
| Accuracy | High Grade / Precision Grade |
| Accessory | |
| Motor Adapter Plate EN AW-5052 Equiv. Black Anodize Adapter Plate Screw 4 pcs. EN 1.4567 Equiv. No accessory is included with No Motor Bracket Type. | |
Specifications
| Part Number | - | Block Qty. | - | Motor Adapter Plates | - | Base Length (L) |
| LX2001C LX2005-MX |
- - |
B1 B1 |
- - |
A2025 A2028 |
- - |
200 150 |
| Part Number | Standard Grease | Low Dust Generation Grease | Lubrication Unit MX-equipped (Standard Grease) | |||
| High Grade | Precision Grade | High Grade | Precision Grade | High Grade | Precision Grade | |
| Lead 1 | LX2001 (C) | LX2001 (C) P | LX2001 (C) G | LX2001 (C) PG | LX2001 (C) -MX | LX2001 (C) P-MX |
| Lead 5 | LX2005 (C) | LX2005 (C) P | LX2005 (C) G | LX2005 (C) PG | LX2005 (C) -MX | LX2005 (C) P-MX |
| Part Number | Block Qty. | Motor Adapter Plates | Base Length (L) | * Effective Stroke | Total Mass (kg) | Mounting Hole Dimensions | ||||||||||
| Standard | Cover | |||||||||||||||
| High Grade | * Precision Grade | B1 | B2 | MX-equipped (B1) | B1 | B2 | B1 | B2 | A | P | B | Number of Pitches | Number of Holes (N) | |||
| (Standard Grease) LX2001 (C) LX2005 (C) (Low Dust Generation Grease) LX2001 (C) G LX2005 (C) G (Lubrication Unit MX-equipped, Standard Grease) LX2001 (C) -MX LX2005 (C) -MX |
(Standard Grease) LX2001 (C) P LX2005 (C) P (Low Dust Generation Grease) LX2001 (C) PG LX2005 (C) PG (Lubrication Unit MX-equipped, Standard Grease) LX2001 (C) P-MX LX2005 (C) P-MX |
(1 pc.) B1 * MX-equipped types are available in B1 only. (2 pcs.) B2 |
(Servo Motor) A2025 A2028 A2038 A2040 E2040 (Stepping Motor) T2028 T2042 T2056.4 *(No Adapter Plate) N *(No Motor Bracket) F |
80 (Lead 1 only) |
16.5 | - | - | 0.40 | - | 0.51 | - | 10 | 60 | 10 | 1 | 4 |
| 100 | 36.5 | 0.45 | 0.56 | 20 | 20 | |||||||||||
| 150 | 86.5 | 76.5 | 0.58 | 0.69 | 15 | 15 | 2 | 6 | ||||||||
| 200 | 136.5 | 79.5 | 126.5 | 0.71 | 0.79 | 0.81 | 0.97 | 40 | 40 | |||||||
| 250 (Lead 5 only) |
186.5 | 129.5 | 176.5 | 0.83 | 0.92 | 0.94 | 1.10 | 35 | 35 | 3 | 8 | |||||
| 300 (Lead 5 only) |
236.5 | 179.5 | 226.5 | 0.96 | 1.05 | 1.07 | 1.23 | 30 | 30 | 4 | 10 | |||||
* Motor adapter plate and mounting screws are not included with No Adapter Plate Type.
* Effective stroke is indicated in dimensions with a margin of 2.5mm each from the ends.
* (C) is for Cover Type.
For Max. Velocity, see P.413
For Moment of Inertia, see P.412
0.004kg will be added to MX-equipped types.
■Accuracy Standards
| Accuracy Standards | High Grade | Precision Grade |
| Positioning (mm) | 0.06 | 0.02 |
| Backlash (mm) | 0.01 | 0.003 |
| Positioning Repeatability (mm) | ±0.005 | ±0.003 |
| Running Parallelism (mm) | 0.025 | 0.01 |
| Starting Torque (N•cm) | 1.2 | 1.2 |
Alterations

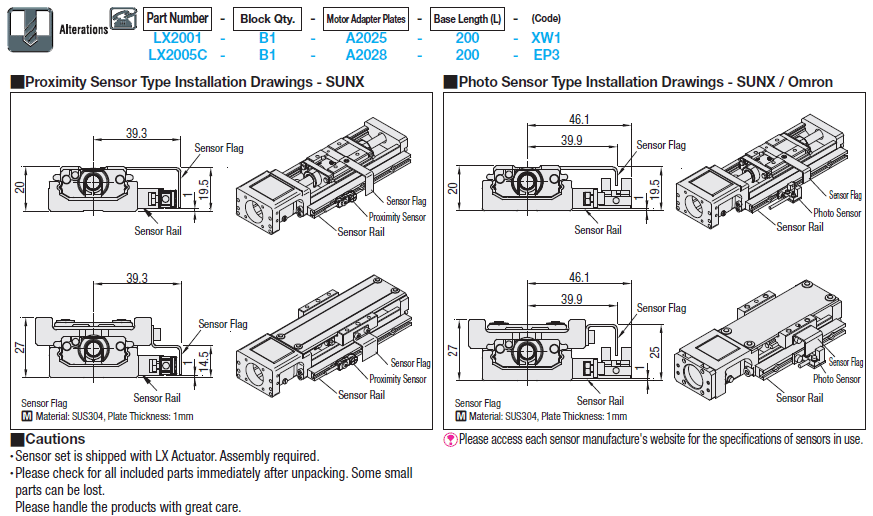

■ Proximity Sensor (SUNX) - Set Part Specification
| LX Part Number | Code (□ is Sensor Qty.) *For L≤100, Max. 2 For L≥150, Max. 3 |
Sensor Type/Qty. | Sensor Rail | Sensor (* Qty per Sensor Included) |
Sensor Flag | Unit Price (L≤150) |
Unit Price (L≥200) |
||||||||
| GX-F8A (ON when near) |
GX-F8B (ON when away) |
Rail (1 pc.) |
Mounting Screw (Pitch +1 pc.) |
Sensor Mounting Screw (1 pc.) |
Mounting Nut (1 pc.) |
Sensor Flag (1 pc.) |
Sensor Flag Mounting Screw |
Sensor Qty. | Sensor Qty. | ||||||
| 1 pc. | 2 pcs. | 3 pcs. | 1 pc. | 2 pcs. | 3 pcs. | ||||||||||
| LX20□□ | XA□ | □ pc(s). | - | SENAT3□H | SCB3-6 | CBSST3-10 | LBNR3 | Dedicated | Flat Head Machine Screw M2.6-4 (1 pc.) |
||||||
| XB□ | - | □ pc(s). | |||||||||||||
| LX20□□C | FA□ | □ pc(s). | - | SCB3-6 (2 pcs.) |
|||||||||||
| FB□ | - | □ pc(s). | |||||||||||||
| LX20□□ | XW1 | 1 pc. | 1 pc. | Flat Head Machine Screw M2.6-4 (1 pc.) |
- | - | - | - | |||||||
| XW2 | 2 pcs. | - | - | ||||||||||||
| XW3 | 2 pcs. | 1 pc. | |||||||||||||
| LX20□□C | FW1 | 1 pc. | 1 pc. | SCB3-6 (2 pcs.) |
- | - | |||||||||
| FW2 | 2 pcs. | - | - | ||||||||||||
| FW3 | 2 pcs. | 1 pc. | |||||||||||||
■ Photo Sensor (SUNX) - Set Part Specification
| LX Part Number | Code (□ is Sensor Qty.) *For L≤100, Max. 2 For L≥150, Max. 3 |
Photo Sensor | Sensor Rail | Sensor (* Qty per Sensor Included) | Sensor Flag | Unit Price (L≤150) |
Unit Price (L≥200) |
|||||||||
| Rail (1 pc.) |
Mounting Screw (Pitch +1 pc.) |
Sensor Bracket | Bracket Mounting Screw Nut | Sensor Mounting Screw | Sensor Mounting Washer | Sensor Flag (1 pc.) |
Sensor Flag Mounting Screw | |||||||||
| Sensor Qty. | Sensor Qty. | |||||||||||||||
| 1 pc. | 2 pcs. | 3 pcs. | 1 pc. | 2 pcs. | 3 pcs. | |||||||||||
| LX20□□ | SP□ | PM-L25 | SENAT3□H | SCB3-6 | Dedicated | SCB3-5 (2 pcs.) LBNR3 (2 pcs.) |
SCB3-6 (2 pcs.) |
M3 Small Flat Washer (2 pcs.) |
Dedicated | Flat Head Machine Screw M2.6-4 (1 pc.) |
||||||
| LX20□□C | MP□ | SCB3-6 (2 pcs.) |
||||||||||||||
The Photo Sensor PM-L24 is to be discontinued and replaced by the next-generation product PM-L25 in April 2017.
■ Photo Sensor (Omron) - Set Part Specification
| LX Part Number | Code (□ is Sensor Qty.) *For L≤100, Max. 2 For L≥150, Max. 3 |
Photo Sensor | Sensor Rail | Sensor (* Qty per Sensor Included) | Sensor Flag | Unit Price (L≤150) |
Unit Price (L≥200) |
|||||||||
| Rail (1 pc.) |
Mounting Screw (Pitch +1 pc.) |
Sensor Bracket | Bracket Mounting Screw Nut | Sensor Mounting Screw | Sensor Mounting Washer | Sensor Flag (1 pc.) |
Sensor Flag Mounting Screw | |||||||||
| Sensor Qty. | Sensor Qty. | |||||||||||||||
| 1 pc. | 2 pcs. | 3 pcs. | 1 pc. | 2 pcs. | 3 pcs. | |||||||||||
| LX20□□ | OP□ | EE-SX911-R 1M | SENAT3□H | SCB3-6 | Dedicated | SCB3-5 (2 pcs.) LBNR3 (2 pcs.) |
SCB3-6 (2 pcs.) |
M3 Small Flat Washer (2 pcs.) |
Dedicated | Flat Head Machine Screw M2.6-4 (1 pc.) |
||||||
| LX20□□C | EP□ | SCB3-6 (2 pcs.) |
||||||||||||||
* Sensors are not sold separately.
EE-SX911-R1M is scheduled to change to EE-SX951-R1M from April 2015.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| LX2001C-B1-A[2025,2028,2038,2040]-[80,100,150,200] |
| LX2001C-B1-E2040-[80,100,150,200] |
| LX2001C-B1-F-[80,100,150,200] |
| LX2001C-B1-N-[80,100,150,200] |
| LX2001C-B1-T[2028,2042,2056.4]-[80,100,150,200] |
| LX2001C-B2-A[2025,2028,2038,2040]-200 |
| LX2001C-B2-E2040-200 |
| LX2001C-B2-F-200 |
| LX2001C-B2-N-200 |
| LX2001C-B2-T[2028,2042,2056.4]-200 |
| LX2001C-MX-B1-A[2025,2028,2038,2040]-[150,200,250,300] |
| LX2001C-MX-B1-E2040-[150,200,250,300] |
| LX2001C-MX-B1-F-[150,200] |
| LX2001C-MX-B1-N-[150,200] |
| LX2001C-MX-B1-T[2028,2042,2056.4]-[150,200,250,300] |
| LX2001CG-B1-A[2025,2028,2038,2040]-[80,100,150,200] |
| LX2001CG-B1-F-[80,100,150,200] |
| LX2001CG-B1-N-[80,100,150,200,250] |
| LX2001CG-B1-T[2028,2042,2056.4]-[80,100,150,200] |
| LX2001CG-B2-A[2025,2028,2038,2040]-200 |
| LX2001CG-B2-F-200 |
| LX2001CG-B2-N-200 |
| LX2001CG-B2-T[2028,2042,2056.4]-200 |
| LX2001CP-B1-A[2025,2028,2038,2040]-[80,100,150,200] |
| LX2001CP-B1-E2040-[80,100,150,200] |
| LX2001CP-B1-F-[80,100,150,200] |
| LX2001CP-B1-N-[80,100,150,200] |
| LX2001CP-B1-T[2028,2042,2056.4]-[80,100,150,200] |
| LX2001CP-B2-A[2025,2028,2038,2040]-200 |
| LX2001CP-B2-E2040-200 |
| LX2001CP-B2-F-200 |
| LX2001CP-B2-N-200 |
| LX2001CP-B2-T[2028,2042,2056.4]-200 |
| LX2001CP-MX-B1-A[2025,2028,2038,2040]-[150,200] |
| LX2001CP-MX-B1-E2040-[150,200] |
| LX2001CP-MX-B1-F-[150,200] |
| LX2001CP-MX-B1-N-[150,200] |
| LX2001CP-MX-B1-T[2028,2042,2056.4]-[150,200] |
| LX2001CPG-B1-A[2025,2028,2038,2040]-[80,100,150,200] |
| LX2001CPG-B1-E2040-[80,100,150,200] |
| LX2001CPG-B1-F-[80,100,150,200] |
| LX2001CPG-B1-N-[80,100,150,200] |
| LX2001CPG-B1-T[2028,2042,2056.4]-[80,100,150,200] |
| LX2001CPG-B2-A[2025,2028,2038,2040]-200 |
| LX2001CPG-B2-E2040-200 |
| LX2001CPG-B2-F-200 |
| LX2001CPG-B2-N-200 |
| LX2001CPG-B2-T[2028,2042,2056.4]-200 |
| LX2005C-B1-A[2025,2028,2038,2040]-[100,150,200,250] |
| LX2005C-B1-E2040-[100,150,200,250] |
| LX2005C-B1-F-[100,150,200,250] |
| LX2005C-B1-N-[100,150,200,250] |
| LX2005C-B1-T[2028,2042,2056.4]-[100,150,200,250] |
| LX2005C-B2-A[2025,2028,2038,2040]-[200,250] |
| LX2005C-B2-F-[200,250] |
| LX2005C-B2-N-[200,250] |
| LX2005C-B2-T[2028,2042,2056.4]-[200,250] |
| LX2005C-MX-B1-A[2025,2028,2038,2040]-[150,200,250,300] |
| LX2005C-MX-B1-E2040-[150,200,250,300] |
| LX2005C-MX-B1-F-[150,200,250,300] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Nominal (Height) | Accuracy | Table (Block) | Lead (mm) | Cover | Grease | With or w/o Lubricant Unit | Table Width (mm) | Basic Load Rating: Dynamic Load (N) | Basic Load Rating: Static Load (N) | Allowable Static Moment MP (N•m) | Allowable Static Moment MY (N•m) | Allowable Static Moment MR (N•m) | Positioning Repeatability (µm) | Positioning Accuracy (µm) | Running Parallelism (µm) | Maximum Velocity (mm/s) | Motor Attachment | Base Overall Length [L] (mm) | Motor Adapter Plate (For Servo Motor) [A] | Motor Adapter Plate (For Servo Motor) [E] | Motor Adapter Plate (For Stepping Motor) [T] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | - | 80 ～ 200 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | - | 80 ～ 200 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | 10 | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | F (No Bracket) | 80 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | N (No Attachment) | 80 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | - | 80 ～ 200 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 190 | - | 200 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 190 | - | 200 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 190 | F (No Bracket) | 200 | - | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 190 | N (No Attachment) | 200 | - | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 190 | - | 200 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | - | 150 ～ 300 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | - | 150 ～ 300 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | F (No Bracket) | 150 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | N (No Attachment) | 150 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | - | 150 ～ 300 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | - | 80 ～ 200 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | F (No Bracket) | 80 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | 10 | 27 | High Grade | Long 1 pc. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | N (No Attachment) | 80 ～ 300 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 190 | - | 80 ～ 200 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 2 pcs. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 190 | - | 200 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 2 pcs. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 190 | F (No Bracket) | 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 2 pcs. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 190 | N (No Attachment) | 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 2 pcs. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 190 | - | 200 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 7 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | - | 80 ～ 200 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 7 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | - | 80 ～ 200 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | F (No Bracket) | 80 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 7 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | N (No Attachment) | 80 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 7 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | - | 80 ～ 200 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 7 Day(s) | - | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | - | 200 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 7 Day(s) | - | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | - | 200 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | F (No Bracket) | 200 | - | - | - | ||
- | 1 Piece(s) | 7 Day(s) | 10 | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | N (No Attachment) | 200 | - | - | - | ||
- | 1 Piece(s) | 7 Day(s) | - | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | - | 200 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | - | 150 ～ 200 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | - | 150 ～ 200 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | F (No Bracket) | 150 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | N (No Attachment) | 150 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | - | 150 ～ 200 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | - | 80 ～ 200 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | - | 80 ～ 200 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | F (No Bracket) | 80 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | N (No Attachment) | 80 ～ 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 1 pc. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±3 | 20 | 10 | 190 | - | 80 ～ 200 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | - | 200 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | - | 200 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | F (No Bracket) | 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | 10 | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | N (No Attachment) | 200 | - | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | Precision Grade | Long 2 pcs. | 1 | Provided | Low Particle Generation | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±3 | 20 | 10 | 190 | - | 200 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 1 pc. | 5 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 694 | - | 100 ～ 300 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 1 pc. | 5 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 694 | - | 100 ～ 300 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | 10 | 27 | High Grade | Long 1 pc. | 5 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 694 | F (No Bracket) | 100 ～ 300 | - | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 1 pc. | 5 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 694 | N (No Attachment) | 100 ～ 300 | - | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 1 pc. | 5 | Provided | Standard | Not Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 694 | - | 100 ～ 300 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 2 pcs. | 5 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 694 | - | 200 ～ 300 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 2 pcs. | 5 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 694 | F (No Bracket) | 200 ～ 300 | - | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 2 pcs. | 5 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 694 | N (No Attachment) | 200 ～ 300 | - | - | - | ||
- | 1 Piece(s) | 5 Day(s) | - | 27 | High Grade | Long 2 pcs. | 5 | Provided | Standard | Not Provided | 52 | 6454 | 12398 | 353 | 353 | 186 | ±5 | 60 | 25 | 694 | - | 200 ～ 300 | - | - | 2028 ～ 2056.4 | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 5 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 694 | - | 150 ～ 300 | 2025 ～ 2040 | - | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 5 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 694 | - | 150 ～ 300 | - | 2040 | - | ||
- | 1 Piece(s) | 10 Day(s) | - | 27 | High Grade | Long 1 pc. | 5 | Provided | Standard | Provided | 52 | 3227 | 6199 | 27 | 27 | 93 | ±5 | 60 | 25 | 694 | F (No Bracket) | 150 ～ 300 | - | - | - |
Loading...
More Information
Basic Information
| Main Body, Peripheral Components | Main Body | Motor Mounting Orientation | Straight | With or w/o Motors | Not Provided (Installed by customers) |
|---|---|---|---|---|---|
| Ball Screw Shaft Dia.(Ø) | 6 | Table Length(mm) | 33.2 | Drive Method | Ground Ball Screw |
| Slider Material | Chrome Molybdenum Steel | Slider Surface Treatment | Low Temperature Black Chrome | Operating Ambient Temperature(°C) | 0::50 |
Specification/Dimensions
-
Nominal (Height)
- 20
- 27
-
Accuracy
- High Grade
- Precision Grade
-
Table (Block)
- Long 1 pc.
- Long 2 pcs.
-
Lead(mm)
-
Grease
- Standard
- Low Particle Generation
-
With or w/o Lubricant Unit
- Not Provided
- Provided
-
Motor Attachment
- F (No Bracket)
- N (No Attachment)
-
Base Overall Length [L](mm)
-
Motor Adapter Plate (For Servo Motor) [A]
-
Motor Adapter Plate (For Servo Motor) [E]
-
Motor Adapter Plate (For Stepping Motor) [T]
-
type
- LX2001
- LX2001-MX
- LX2001C
- LX2001C-MX
- LX2001CG
- LX2001CP
- LX2001CP-MX
- LX2001CPG
- LX2001G
- LX2001P
- LX2001P-MX
- LX2001PG
- LX2005
- LX2005-MX
- LX2005C
- LX2005C-MX
- LX2005CG
- LX2005CP
- LX2005CP-MX
- LX2005CPG
- LX2005G
- LX2005P
- LX2005P-MX
- LX2005PG
-
Cover
- Not Provided
- Provided
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 5 Day(s) or Less
- 7 Day(s) or Less
- 10 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- Single Axis Actuators LX26 Standard / Cover Type
- Single Axis Actuators LX30 Standard / Cover Type
- Single Axis Actuators LX45 Standard / Cover Type
- Single Axis Actuators LX30 Motor Folded Type
- Single Axis Actuators LX45 Motor Folded Type
- Single Axis Actuators LX15 Standard / Cover Type
- Rack and pinion system LBE series
- Compact Linear Actuator, DRL II Series
Complementary Products
-
Cable Carriers - Flap Open-Close Type
MISUMI_Test Standard Price : MYR 67.09- Days to Ship : 1 Day(s) or more
Customers Who Viewed This Item Also Viewed
-
-
-
-
-
-
-
Precision Ball Screws Compact Nut - Shaft Dia. 6, 8, Lead 1, 2 - Accuracy Grade C3, C5, C7MISUMI_Test
Days to Ship : 4 Day(s) or more
-
Rolled Ball Screws Block Nut - Shaft Dia. 15, 20, 25; Lead 5, 10 - Accuracy Grade C10MISUMI_Test
Days to Ship : 4 Day(s) or more
-
Precision Ball Screws Standard Nut - Shaft Dia. 15, Lead 5, 10, 20 - Accuracy Grade C3, C5, C7MISUMI_Test
Days to Ship : 4 Day(s) or more
-
Precision Ball Screws Standard Nut - Shaft Dia. 10, Lead 2, 4, 10 - Accuracy Grade C3, C5, C7MISUMI_Test
Days to Ship : 4 Day(s) or more
-
-
Precision Ball Screws Standard Nut - Shaft Dia. 12, Lead 2, 4, 5, 10 - Accuracy Grade C3, C5, C7MISUMI_Test
Days to Ship : 4 Day(s) or more
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
