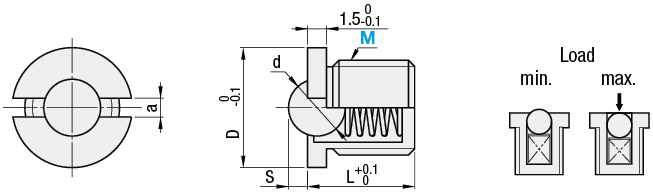

Ball Plungers-Flanged Type
Click this image to zoom it.
Move the mouse over the image to zoom
Part Number
Configured Part Number is shown.
| Type | Body | Ball | Spring | Operation Temperature | |||
| [ M ]Material | [ H ]Hardness | [ S ] Surface Treatment | [ M ]Material | [ H ]Hardness | [ M ]Material | ||
| FBPJ | S45C | 29~35HRC | Blackening | SUS440C | 55HRC~ | SUS631J1 | -30~80°C |
| FBPJS | SUS303 | - | - | -30~260°C | |||
Specifications
| Part Number |
| FBPJ5 |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| FBPJ5 |
| FBPJ6 |
| FBPJ8 |
| FBPJ10 |
| FBPJ12 |
| FBPJ16 |
| FBPJS5 |
| FBPJS6 |
| FBPJS8 |
| FBPJS10 |
| FBPJS12 |
| FBPJS16 |

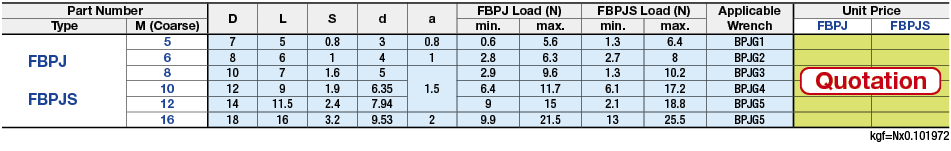

| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Body Material | Outer Dia. M (mm) | Stroke (S) (mm) | Main Body Surface Treatment | Initial Load (N) | Max. Load (N) |
|---|---|---|---|---|---|---|---|---|---|---|
MYR 16.49 | 1 Piece(s) | Available | 1 Day(s) | [Steel] S45C | 5 | 0.8 | Black Oxide | 0.6 | 5.6 | |
MYR 16.49 | 1 Piece(s) | Available | 1 Day(s) | [Steel] S45C | 6 | 1 | Black Oxide | 2.8 | 6.3 | |
MYR 16.49 | 1 Piece(s) | Available | 1 Day(s) | [Steel] S45C | 8 | 1.6 | Black Oxide | 2.9 | 9.6 | |
MYR 18.73 | 1 Piece(s) | Available | 1 Day(s) | [Steel] S45C | 10 | 1.9 | Black Oxide | 6.4 | 11.7 | |
MYR 18.73 | 1 Piece(s) | Available | 1 Day(s) | [Steel] S45C | 12 | 2.4 | Black Oxide | 9 | 15 | |
MYR 31.44 | 1 Piece(s) | Available | 1 Day(s) or more | [Steel] S45C | 16 | 3.2 | Black Oxide | 9.9 | 21.5 | |
MYR 17.22 | 1 Piece(s) | Available | 1 Day(s) | [Stainless Steel] SUS303 | 5 | 0.8 | Not Provided | 1.3 | 6.4 | |
MYR 17.22 | 1 Piece(s) | Available | 1 Day(s) | [Stainless Steel] SUS303 | 6 | 1 | Not Provided | 2.7 | 8 | |
MYR 17.22 | 1 Piece(s) | Available | 1 Day(s) | [Stainless Steel] SUS303 | 8 | 1.6 | Not Provided | 1.3 | 10.2 | |
MYR 19.46 | 1 Piece(s) | Available | 1 Day(s) | [Stainless Steel] SUS303 | 10 | 1.9 | Not Provided | 6.1 | 17.2 | |
MYR 19.46 | 1 Piece(s) | Available | 1 Day(s) | [Stainless Steel] SUS303 | 12 | 2.4 | Not Provided | 2.1 | 18.8 | |
MYR 32.21 | 1 Piece(s) | Available | 1 Day(s) | [Stainless Steel] SUS303 | 16 | 3.2 | Not Provided | 13 | 25.5 |
Loading...
More Information
Basic Information
| Mounting Method | Flanged | Ball Material | SUS440C | Thread Locking Treatment | Not Provided |
|---|---|---|---|---|---|
| Pin Surface Treatment | Not Provided | Tip Heat Treatment | Hardening | Initial Load (Range)(N) | 0.01~50 |
Specification/Dimensions
-
Body Material
- Steel
- Stainless Steel
- Steel
-
Outer Dia. M(mm)
-
Stroke (S)(mm)
-
Main Body Surface Treatment
- Not Provided
- Black Oxide
-
Initial Load(N)
-
type
- FBPJ
- FBPJS
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
