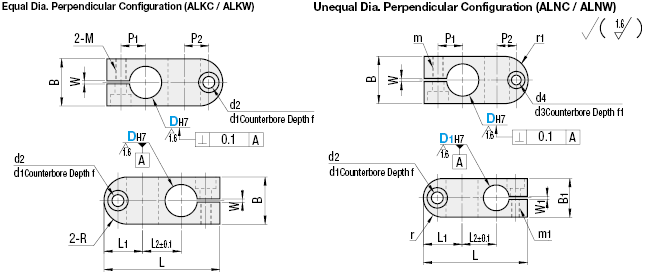

Super Compact Strut Clamps / Resin Compact Strut Clamps - Equal / Unequal Dia.
Part Number
Configured Part Number is shown.
| Type | [ M ]Material | [ S ]Surface Treatment | [ A ]Accessory | |
| Equal Dia. | Unequal Dia. | |||
| ALKC | ALNC | 6000series Aluminum Alloy | Black Anodize | Hexagon Socket Head Cap Screws |
| ALKW | ALNW | Clear Anodize | ||
Specifications
| Part Number | - | D1 |
| ALKC8 ALNC10 | - | 8 |

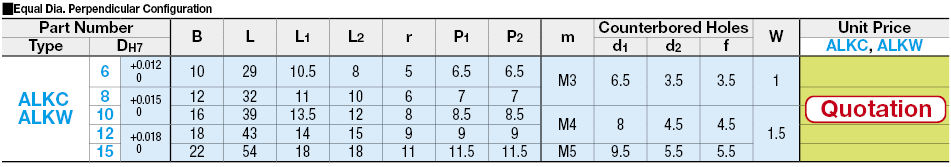

| ■Included Screws Equal Dia. Perpendicular Configuration | ||
| D | Included Screws | |
| 6 | M3-6 | 2 pcs. |
| 8 | M3-8 | |
| 10 | M4-10 | |
| 12 | M4-12 | |
| 15 | M5-15 | |

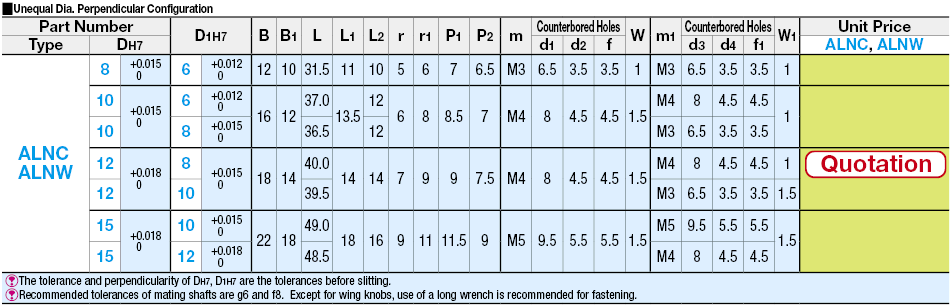

| ■Included Screws Unequal Dia. Perpendicular Configuration | |||
| D | D1 | Included Screws | |
| 8 | 6 | M3-6 / M3-8 | 1Pc. Each |
| 10 | 8 | M4-6 / M4-10 | |
| 10 | 8 | M3-8 / M4-10 | |
| 12 | 10 | M4-8 / M4-12 | |
| 12 | 10 | M3-10 / M4-12 | |
| 15 | 10 | M5-12 / M5-15 | |
| 15 | 12 | M4-12 / M5-15 | |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| ALKW6 |
| ALKW8 |
| ALKW10 |
| ALKW12 |
| ALKW15 |
| ALNW8-6 |
| ALNW10-6 |
| ALNW12-8 |
| ALNW15-12 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Post Dia. (mm) | Post Dia. 2 (mm) | Surface Treatment | Combined-Post Dia. |
|---|---|---|---|---|---|---|---|---|---|
MYR 34.24 | 1 Piece(s) | Available | 5 Day(s) | 10 | 6 | - | Clear Anodize | Equal Dia. | |
MYR 34.24 | 1 Piece(s) | Available | 1 Day(s) | 10 | 8 | - | Clear Anodize | Equal Dia. | |
MYR 37.51 | 1 Piece(s) | Available | 1 Day(s) | 10 | 10 | - | Clear Anodize | Equal Dia. | |
MYR 42.22 | 1 Piece(s) | Available | 1 Day(s) | 10 | 12 | - | Clear Anodize | Equal Dia. | |
MYR 94.90 | 1 Piece(s) | Available | 1 Day(s) | 10 | 15 | - | Clear Anodize | Equal Dia. | |
MYR 39.47 | 1 Piece(s) | Available | 5 Day(s) or more | 10 | 8 | 6 | Clear Anodize | Unequal Dia. | |
MYR 40.83 | 1 Piece(s) | Available | 5 Day(s) or more | 10 | 10 | 6 | Clear Anodize | Unequal Dia. | |
MYR 46.28 | 1 Piece(s) | Available | 4 Day(s) or more | 10 | 12 | 8 | Clear Anodize | Unequal Dia. | |
MYR 136.46 | 1 Piece(s) | Available | 5 Day(s) | 10 | 15 | 12 | Clear Anodize | Unequal Dia. |
Loading...
Basic Information
| Type | Perpendicular | Post Shape | Round | Material | Aluminum Alloy |
|---|
Specification/Dimensions
-
Post Dia.(mm)
-
Post Dia. 2(mm)
-
Combined-Post Dia.
- Equal Dia.
- Unequal Dia.
-
type
- ALKC
- ALKW
- ALNC
- ALNW
-
Surface Treatment
- Clear Anodize
- Black Anodize
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 4 Day(s) or Less
- 5 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
