Caster - Light Load
Part Number
Configured Part Number is shown.
| Body | Wheel | Bearings | ||
| [ M ]Material | [ S ]Surface Treatment | [ M ]Material (Color) | Swiveling | Wheel |
| SPHC | Trivalent Chromate | Synthetic Rubber (Black) / Nylon (White) / Urethane (Brown) / FC250 (Gray) | Incorporated | None |
Specifications
| Part Number | - | Wheel Material |
| CLGJ38 | - | R |

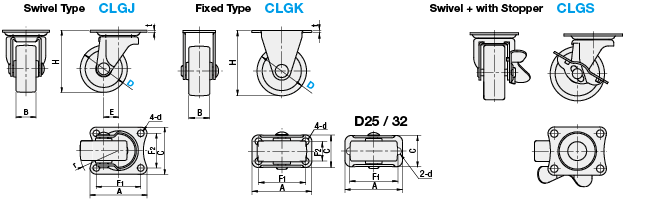

| Body | Part Number | Wheel Material | H | A | C | F1 | F2 | d | B | r | E | t | Allowable Load (N) | Mass (g) | |||||||
| Type | Type | D | Rubber | Nylon | Urethane | Casting | Rubber | Nylon | Urethane | Casting | |||||||||||
| Swivel Type | CLGJ | 25 | R(Rubber) N(Nylon) U(Urethane) G(Casting) | 35 | 35 | 30 | 28 | 23 | 4.2 | 12 | 21 | 8 | 1.6 | 80 | 100 | 100 | 120 | 35 | 30 | 40 | 53 |
| 32 | 42 | 38 | 32 | 30 | 24 | 14 | 27 | 10 | 1.6 | 120 | 180 | 180 | 200 | 50 | 40 | 50 | 68 | ||||
| 38 | 50 | 46 | 38 | 36 | 28 | 5.3 | 17 | 32 | 12 | 1.6 | 200 | 280 | 280 | 300 | 80 | 75 | 80 | 116 | |||
| 50 | 65 | 59 | 47 | 46 | 35 | 6.5 | 20 | 42 | 16 | 2 | 300 | 380 | 380 | 400 | 140 | 110 | 119 | 213 | |||
| 65 | 80 | 70 | 58 | 55 | 42 | 8.8 | 25 | 53 | 19 | 2.3 | 400 | 550 | 550 | 600 | 245 | 180 | 195 | 450 | |||
| 75 | 90 | 26 | 58 | 500 | 650 | 650 | 700 | 290 | 195 | 215 | 555 | ||||||||||
| Fixed Type | CLGK | 25 | 35 | 36 | 18 | 29 | - | 4.2 | 12 | - | - | 1.6 | 80 | 100 | 100 | 120 | 25 | 23 | 31 | 47 | |
| 32 | 42 | 20 | 14 | 1.6 | 120 | 180 | 180 | 200 | 38 | 30 | 40 | 58 | |||||||||
| 38 | 50 | 46 | 25 | 36 | 15 | 5.3 | 17 | 1.6 | 200 | 280 | 280 | 300 | 63 | 48 | 52 | 106 | |||||
| 50 | 65 | 58 | 40 | 45 | 25 | 6.5 | 20 | 2 | 300 | 380 | 380 | 400 | 130 | 95 | 110 | 220 | |||||
| 65 | 80 | 70 | 47 | 55 | 28 | 8.8 | 25 | 2.3 | 400 | 550 | 550 | 600 | 240 | 175 | 190 | 395 | |||||
| 75 | 90 | 26 | 500 | 650 | 650 | 700 | 290 | 195 | 215 | 530 | |||||||||||
| Swivel + Stopper Type | CLGS | 50 | 65 | 59 | 47 | 46 | 35 | 6.5 | 20 | 44 | 16 | 2 | 300 | 380 | 380 | 500 | 165 | 135 | 145 | 420 | |
| 65 | 80 | 70 | 58 | 55 | 42 | 8.8 | 25 | 58 | 19 | 2.3 | 400 | 550 | 550 | 600 | 280 | 215 | 230 | 485 | |||
| 75 | 90 | 26 | 58 | 500 | 650 | 650 | 700 | 325 | 230 | 250 | 590 | ||||||||||
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| CLGJ25-R |
| CLGJ25-U |
| CLGJ32-N |
| CLGJ32-U |
| CLGJ38-G |
| CLGJ38-N |
| CLGJ38-R |
| CLGJ38-U |
| CLGJ50-R |
| CLGJ65-U |
| CLGJ75-N |
| CLGK25-N |
| CLGK50-R |
| CLGK50-U |
| CLGS50-N |
| CLGS50-R |
| CLGS50-U |
| CLGS65-R |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Caster Type | Mounting Height H (mm) | Load Range (daN) | Stopper (Detail) | Allowable Load (daN) | Wheel Material | Mounting Hole Pitch, Long Length Direction (mm) | Mounting Hole Pitch, Short Length Direction (mm) | Plate Length (mm) | Plate Width (mm) | Wheel Dia. D (Ø) | Wheel Width B (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 6.84 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 35 | ~35.00 | Not Provided | 8 | [Synthetic Rubber] Synthetic Rubber (General) | 28 | 23 | 35 | 30 | 25 | 12 | |
MYR 7.06 | 1 Piece(s) | Available | 2 Day(s) or more | - | Swivel Type | 35 | ~35.00 | Not Provided | 10 | [Urethane] Urethane (General) | 28 | 23 | 35 | 30 | 25 | 12 | |
MYR 6.84 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 42 | ~35.00 | Not Provided | 18 | [Nylon] Nylon (General) | 30 | 24 | 38 | 32 | 32 | 14 | |
MYR 8.24 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 42 | ~35.00 | Not Provided | 18 | [Urethane] Urethane (General) | 30 | 24 | 38 | 32 | 32 | 14 | |
MYR 16.48 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 50 | ~35.00 | Not Provided | 30 | [Steel] Cast | 36 | 28 | 46 | 38 | 38 | 17 | |
MYR 10.70 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 50 | ~35.00 | Not Provided | 28 | [Nylon] Nylon (General) | 36 | 28 | 46 | 38 | 38 | 17 | |
MYR 11.77 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 50 | ~35.00 | Not Provided | 20 | [Synthetic Rubber] Synthetic Rubber (General) | 36 | 28 | 46 | 38 | 38 | 17 | |
MYR 15.84 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 50 | ~35.00 | Not Provided | 28 | [Urethane] Urethane (General) | 36 | 28 | 46 | 38 | 38 | 17 | |
MYR 20.01 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 65 | ~35.00 | Not Provided | 30 | [Synthetic Rubber] Synthetic Rubber (General) | 46 | 35 | 59 | 47 | 50 | 20 | |
MYR 32.96 | 1 Piece(s) | Available | 2 Day(s) | - | Swivel Type | 80 | 35.01~80.00 | Not Provided | 55 | [Urethane] Urethane (General) | 55 | 42 | 70 | 58 | 65 | 25 | |
MYR 18.83 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 90 | 35.01~80.00 | Not Provided | 65 | [Nylon] Nylon (General) | 55 | 42 | 70 | 58 | 75 | 26 | |
MYR 4.71 | 1 Piece(s) | Available | 1 Day(s) | - | Fixed Type | 35 | ~35.00 | Not Provided | 10 | [Nylon] Nylon (General) | 29 | - | 36 | 18 | 25 | 12 | |
MYR 15.30 | 1 Piece(s) | Available | 2 Day(s) | 10 | Fixed Type | 65 | ~35.00 | Not Provided | 30 | [Synthetic Rubber] Synthetic Rubber (General) | 45 | 25 | 58 | 40 | 50 | 20 | |
MYR 26.10 | 1 Piece(s) | Available | 1 Day(s) | - | Fixed Type | 65 | 35.01~80.00 | Not Provided | 38 | [Urethane] Urethane (General) | 45 | 25 | 58 | 40 | 50 | 20 | |
MYR 15.30 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 65 | 35.01~80.00 | With Rotation Stopper | 38 | [Nylon] Nylon (General) | 46 | 35 | 59 | 47 | 50 | 20 | |
MYR 16.48 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 65 | ~35.00 | With Rotation Stopper | 30 | [Synthetic Rubber] Synthetic Rubber (General) | 46 | 35 | 59 | 47 | 50 | 20 | |
MYR 23.54 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 65 | 35.01~80.00 | With Rotation Stopper | 38 | [Urethane] Urethane (General) | 46 | 35 | 59 | 47 | 50 | 20 | |
MYR 24.72 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 80 | 35.01~80.00 | With Rotation Stopper | 40 | [Synthetic Rubber] Synthetic Rubber (General) | 55 | 42 | 70 | 58 | 65 | 25 |
Loading...
Basic Information
| Wheel Characteristics | Not Provided | Fitting Material | Steel | Load Category | Light Load |
|---|---|---|---|---|---|
| Bearing in Wheel | Not Provided |
Specification/Dimensions
-
Caster Type
- Swivel Type
- Fixed Type
-
Mounting Height H(mm)
-
Load Range(daN)
- ~35.00
- 35.01~80.00
-
Stopper (Detail)
- Not Provided
- With Rotation Stopper
-
Allowable Load(daN)
-
Wheel Material
- Synthetic Rubber
- Nylon
- Urethane
- Steel
- Synthetic Rubber
-
Mounting Hole Pitch, Long Length Direction(mm)
-
Mounting Hole Pitch, Short Length Direction(mm)
-
Plate Length(mm)
-
Plate Width(mm)
-
Wheel Dia. D(Ø)
-
Wheel Width B(mm)
-
type
- CLGJ
- CLGK
- CLGS
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
