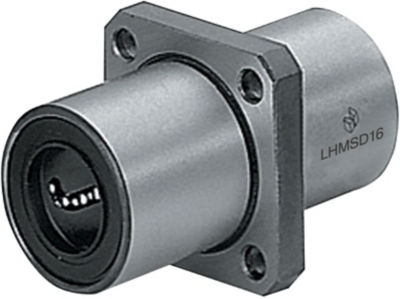

Flanged Linear Bushings - Medium, Center Flanged
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| LHMCD10 |
| LHMCD13 |
| LHMCD16 |
| LHMCD20 |
| LHMRD20 |
| LHMSD8 |
| LHMSD10 |
| LHMSD30 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Inscribed Circle Dia. dr (Ø) | Overall Length L (mm) | Outer Dia. D (Ø) | Basic Load Rating: Dynamic Load (Details) (N) | Basic Load Rating: Static Load (N) | Inscribed Circle Dia. Tolerance (Negative Side) (mm) | Eccentricity (µm) | Flange Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 66.86 | 1 Piece(s) | Available | 1 Day(s) | 10 | 10 | 47 | 19 | 508 | 718 | -0.01 | 15 | Compact Flange | |
MYR 61.03 | 1 Piece(s) | Available | 1 Day(s) | 10 | 13 | 47 | 23 | 640 | 826 | -0.01 | 15 | Compact Flange | |
MYR 71.20 | 1 Piece(s) | Available | 1 Day(s) | - | 16 | 56 | 28 | 1164 | 1448 | -0.01 | 15 | Compact Flange | |
MYR 83.93 | 1 Piece(s) | Available | 1 Day(s) | 10 | 20 | 65 | 32 | 1554 | 2068 | -0.012 | 20 | Compact Flange | |
MYR 75.87 | 1 Piece(s) | Available | 1 Day(s) | - | 20 | 65 | 32 | 1554 | 2068 | -0.012 | 20 | Round Flanged | |
MYR 53.40 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 37 | 15 | 310 | 452 | -0.01 | 15 | Square Flanged | |
MYR 54.14 | 1 Piece(s) | Available | 1 Day(s) | - | 10 | 47 | 19 | 508 | 718 | -0.01 | 15 | Square Flanged | |
MYR 188.32 | 1 Piece(s) | Available | 1 Day(s) | - | 30 | 90 | 45 | 2440 | 3974 | -0.012 | 20 | Square Flanged |
