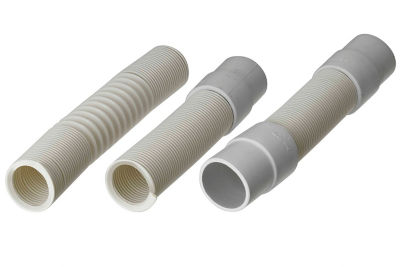

Duct Hoses/Lightweight Type
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| HOSEE38-[0.5-50/0.1] |
| HOSEE50-[0.5-30/0.1] |
| HOSEE90-[0.5-30/0.1] |
| HOSEE150-[0.5-20/0.1] |
| HOSEEK90-[0.5-30/0.1] |
| HOSSD38-[0.5-5/0.1] |
| HOSSD100-[0.5-5/0.1] |
| HOSSDK65-[0.5-5/0.1] |
| HOSSDK90-[0.5-5/0.1] |
| HOSSDK125-[0.5-5/0.1] |
| HOSSDR65-[0.5-5/0.1] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Material | I.D. (Ø) | Outer Dia. D (Ø) | Operating Temperature Range (°C) | Allowable Bending Radius (mm) | With or w/o Cuffs | Hose Length (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 4 Day(s) or more | [PVC] Flexible or Hard PVC | 37.3 | 44.5 | -10～50 | 38 | Not Provided (Hose Main Body Only) | 0.5 ～ 50 | ||
- | 1 Piece(s) | 4 Day(s) or more | [PVC] Flexible or Hard PVC | 50.6 | 60.2 | -10～50 | 50 | Not Provided (Hose Main Body Only) | 0.5 ～ 30 | ||
- | 1 Piece(s) | 4 Day(s) or more | [PVC] Flexible or Hard PVC | 88.9 | 99.5 | -10～50 | 90 | Not Provided (Hose Main Body Only) | 0.5 ～ 30 | ||
- | 1 Piece(s) | 4 Day(s) or more | [PVC] Flexible or Hard PVC | 152.4 | 164.8 | -10～50 | 150 | Not Provided (Hose Main Body Only) | 0.5 ～ 20 | ||
- | 1 Piece(s) | 4 Day(s) or more | [PVC] Flexible or Hard PVC | 88.9 | 99.5 | -10～50 | 90 | Provided (One side) | 0.5 ～ 30 | ||
- | 1 Piece(s) | 4 Day(s) or more | [Polypropylene] Polypropylene, Hard Steel Wire | 35 | 42.0 | -20～80 | 30 | Not Provided (Hose Main Body Only) | 0.5 ～ 5 | ||
- | 1 Piece(s) | 4 Day(s) or more | [Polypropylene] Polypropylene, Hard Steel Wire | 97.0 | 108.0 | -20～80 | 80 | Not Provided (Hose Main Body Only) | 0.5 ～ 5 | ||
- | 1 Piece(s) | 4 Day(s) or more | [Polypropylene] Polypropylene, Hard Steel Wire | 63 | 72 | -20～80 | 55 | Provided (One side) | 0.5 ～ 5 | ||
- | 1 Piece(s) | 4 Day(s) or more | [Polypropylene] Polypropylene, Hard Steel Wire | 83 | 94 | -20～80 | 70 | Provided (One side) | 0.5 ～ 5 | ||
- | 1 Piece(s) | 4 Day(s) or more | [Polypropylene] Polypropylene, Hard Steel Wire | 123.0 | 135.0 | -20～80 | 100 | Provided (One side) | 0.5 ～ 5 | ||
- | 1 Piece(s) | 4 Day(s) or more | [Polypropylene] Polypropylene, Hard Steel Wire | 63 | 72 | -20～80 | 55 | Provided (Both sides) | 0.5 ～ 5 |
Loading...
Basic Information
| Cutting Service Usage | Yes | Properties | Standard | Applicable Fluid | Air |
|---|
Specification/Dimensions
-
Material
- Polypropylene
- PVC
- Polypropylene
-
I.D.(Ø)
-
Outer Dia. D(Ø)
-
With or w/o Cuffs
- Not Provided (Hose Main Body Only)
- Provided (Both sides)
- Provided (One side)
-
Hose Length(m)
-
type
- HOSEE
- HOSEEK
- HOSSD
- HOSSDK
- HOSSDR
-
CAD
- 2D
- 3D
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
