Brackets for Cam Followers-L-Shaped
Click this image to zoom it.
Move the mouse over the image to zoom

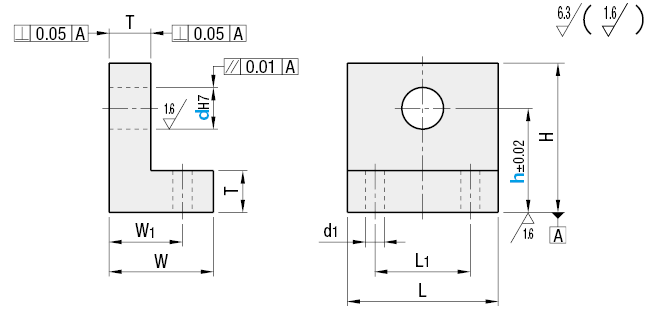

L-Shaped Brackets dedicated for cam followers.
Part Number
Configured Part Number is shown.
| Type | [ M ]Material | [ S ]Surface Treatment |
| CMFLB | S45C | Blackening |
| CMFL | Electroless Nickel Plating | |
| CMFLS | SUS304 | - |

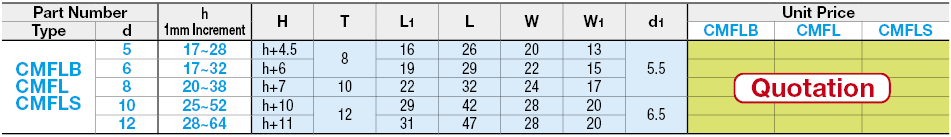

Specifications
| Part Number | - | h |
| CMFLB8 | - | 30 |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| CMFL5-[17-28/1] |
| CMFL6-[17-32/1] |
| CMFL8-[20-38/1] |
| CMFL10-[25-52/1] |
| CMFL12-[28-64/1] |
| CMFLB5-[17-28/1] |
| CMFLB6-[17-32/1] |
| CMFLB8-[20-38/1] |
| CMFLB10-[25-52/1] |
| CMFLB12-[28-64/1] |
| CMFLS5-[17-28/1] |
| CMFLS6-[17-32/1] |
| CMFLS8-[20-38/1] |
| CMFLS10-[25-52/1] |
| CMFLS12-[28-64/1] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Stud Screw Nominal (M) (mm) | Material | d (Ø) | Surface Treatment | h (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 4 Day(s) or more | - | M5 | [Carbon Steel] S45C | 5 | Electroless Nickel Plating | 17 ～ 28 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M6 | [Carbon Steel] S45C | 6 | Electroless Nickel Plating | 17 ～ 32 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M8 | [Carbon Steel] S45C | 8 | Electroless Nickel Plating | 20 ～ 38 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M10 | [Carbon Steel] S45C | 10 | Electroless Nickel Plating | 25 ～ 52 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M12 | [Carbon Steel] S45C | 12 | Electroless Nickel Plating | 28 ～ 64 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M5 | [Carbon Steel] S45C | 5 | Black Oxide | 17 ～ 28 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M6 | [Carbon Steel] S45C | 6 | Black Oxide | 17 ～ 32 | ||
- | 1 Piece(s) | 4 Day(s) or more | 10 | M8 | [Carbon Steel] S45C | 8 | Black Oxide | 20 ～ 38 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M10 | [Carbon Steel] S45C | 10 | Black Oxide | 25 ～ 52 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M12 | [Carbon Steel] S45C | 12 | Black Oxide | 28 ～ 64 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M5 | [Stainless Steel] SUS304 | 5 | Not Provided | 17 ～ 28 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M6 | [Stainless Steel] SUS304 | 6 | Not Provided | 17 ～ 32 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M8 | [Stainless Steel] SUS304 | 8 | Not Provided | 20 ～ 38 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M10 | [Stainless Steel] SUS304 | 10 | Not Provided | 25 ～ 52 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | M12 | [Stainless Steel] SUS304 | 12 | Not Provided | 28 ～ 64 |
Loading...
Basic Information
| Product Category | Cam Followers | Roller Lining | Not Provided | Shaft | Not Provided |
|---|
Specification/Dimensions
-
Stud Screw Nominal (M)(mm)
-
Material
- Carbon Steel
- Stainless Steel
- Carbon Steel
-
d(Ø)
- 5
- 6
- 8
- 10
- 12
-
Surface Treatment
- Black Oxide
- Electroless Nickel Plating
- Not Provided
-
h(mm)
-
type
- CMFL
- CMFLB
- CMFLS
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 4 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
