[Economy Type] Three Lobed Plastic Knobs
![[Economy Type] Three Lobed Plastic Knobs](http://stg0-my.misumi-ec.com/linked/material/mech/MSM1/PHOTO/10302518810.jpg?$product_main$)
- Volume Discount
Three Lobed Plastic Knobs so shaped as to prevent slippery are offered at economical price.
Part Number
Configured Part Number is shown.
| Type | Knobs | Thread | |
| [ M ]Material | [ M ]Material | [ S ]Surface Treatment | |
| C-NTM | Phenol Resin | SUM22L | Zinc Plating |
Specifications
| Part Number (Type∙M) |
| C-NTM4 |

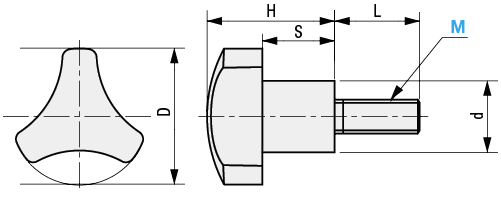

| Part Number | L | D | H | S | d | Mass (g) | |
| Type | M | ||||||
| C-NTM | 4 | 10 | 25 | 15 | 8 | 13 | 6 |
| 5 | 20 | 25 | 15 | 8 | 13 | 9 | |
| 6 | 20 | 25 | 15 | 8 | 13 | 10 | |
| 8 | 25 | 32 | 20 | 11 | 16 | 23 | |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| C-NTM4 |
| C-NTM5 |
| C-NTM6 |
| C-NTM8 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Mounting Section Dia. M | Mounting Section, Length L (mm) | Main Body Dia. (D) (Ø) | Main Body Height (mm) |
|---|---|---|---|---|---|---|---|---|
MYR 6.86 | 1 Piece(s) | 1 Day(s) | 4 | 10 | 25 | 15 | ||
MYR 6.86 | 1 Piece(s) | 1 Day(s) | 5 | 20 | 25 | 15 | ||
MYR 9.01 | 1 Piece(s) | 1 Day(s) | 6 | 20 | 25 | 15 | ||
MYR 12.83 | 1 Piece(s) | Available | 1 Day(s) | 8 | 25 | 32 | 20 |
Loading...
Basic Information
| Main Body, Type | Polygonal Shape | Mounting Section Type | Threaded | Polygonal Shape, Type | Three Lobed |
|---|---|---|---|---|---|
| Additional Function | None | Threaded End Machining | None | Main Body Material | Phenol |
| Mounting Section, Material | SWCH12A | Mounting Section, Surface Treatment | Bright Chromate Plating (Matte Black) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
