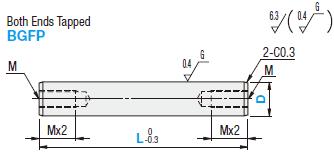

Shafts for Miniature Ball Guides - Both Ends Machined - Both Ends Tapped
- Volume Discount
Shafts having the one end threaded and the other end tapped.
Part Number
Configured Part Number is shown.
| Type | [ M ] Material | [ H ] Hardness | |
| Both Ends Tapped | BGFP | SUJ2 | 58HRC~ |
Specifications
| Part Number | - | L |
| BGFP5 | - | 70 |
| Part Number | L | M (Coarse) |
||||||||
| Type | D | Shaft Dia. Tolerance | ||||||||
| BGFP | 5 | 0 -0.005 |
40 | 50 | 60 | 70 | 80 | 90 | M3 | |
| 6 | 0 -0.005 |
M3 | ||||||||
| 8 | 0 -0.005 |
40 | 50 | 60 | 70 | 80 | 90 | 100 | M4 | |
| 10 | 0 -0.005 |
M5 | ||||||||
| 12 | 0 -0.005 |
M6 | ||||||||
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| BGFP5-90 |
| BGFP8-50 |
| BGFP8-100 |
| BGFP10-40 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Shaft Outer Dia. D (Ø) | Shaft Length L (mm) |
|---|---|---|---|---|---|---|---|
MYR 50.73 | 1 Piece(s) | Available | 3 Day(s) or more | 10 | 5 | 90 | |
MYR 45.92 | 1 Piece(s) | Available | 3 Day(s) or more | 10 | 8 | 50 | |
MYR 56.07 | 1 Piece(s) | Available | 3 Day(s) or more | - | 8 | 100 | |
MYR 46.46 | 1 Piece(s) | Available | 3 Day(s) or more | - | 10 | 40 |
Loading...
More Information
Circularity of Part D 0.004 or Less (Except Annealed Range)
Basic Information
| Sale Type | Shafts | Shaft Shape | Both Ends Tapped | Shaft/Bushing Material | SUJ2 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
