Fulcrum Pins - Selectable / Configurable - Hex Socket
- Volume Discount
Selectable from 4 types of head shape.
Part Number
Configured Part Number is shown.
| Standard | Configurable | [ M ]Material | [ H ]Hardness | [ S ]Surface Treatment | ||||
| Standard Grade | Precision Grade | Standard Grade | Precision Grade | |||||
| D | -0.01 -0.05 | Dg6 | D | -0.01 -0.05 | Dg6 | |||
| CBDBR | CBDGBR | FCBDBR | FCBDGBR | S45C Equivalent | - | Black Oxide | ||
| CBDBRH | - | FCBDBRH | - | 40~45HRC | ||||
| CBDR | CBDGR | FCBDR | FCBDGR | SUS303 Equivalent (CBDR CBDGR) SUS303 (FCBDR FCBDGR) | - | - | ||
Specifications
| Part Number | - | L |
| CBDR | - | 10 |
| Part Number | - | L | - | A | - | E | - | F |
| FCBDBR6 | - | 10.0 | - | A10 | - | E2.5 | - | F6 |
| Standard | Configurable | |
| Unhardened | +0.15 +0.05 | +0.1 0 |
| Hardened | +0.2 0 | +0.2 0 |
| D Tolerance (g6) | |
| 4~6 | -0.004 -0.012 |
| 8, 10 | -0.005 -0.014 |
| 12~15 | -0.006 -0.017 |

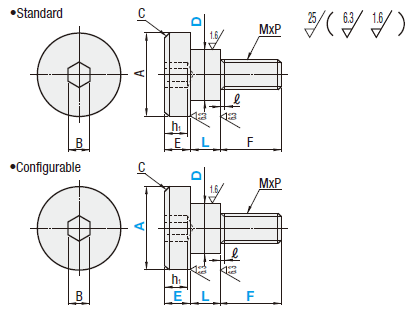

| Part Number | L | A | E | MxP (Coarse Thread) | F | ℓ | B | h1 | C | |
| Type | D | |||||||||
| Hex Socket (Standard) CBDBR CBDBRH CBDR Hex Socket (Precision) CBDGBR CBDGR | 4 | 5 6 7 8 | 6 | 3.5 | 2.6x0.45 | 4 | 0.8 | 2 | 2 | 0.5 |
| 5 | 5 6 7 8 10 | 8 | 4 | 3x0.5 | 6 | 1 | 2.5 | 2.5 | 0.5 | |
| 6 | 5 6 7 8 10 | 10 | 4 | 4x0.7 | 8 | 1.2 | 3 | 3 | 0.5 | |
| 8 | 5 6 7 8 9 10 12 20 | 12 | 4.5 | 5x0.8 | 10 | 1.4 | 4 | 3.5 | 1 | |
| 10 | 5 6 7 8 9 10 12 15 20 | 16 | 5 | 6x1.0 | 12 | 1.5 | 5 | 4 | 1 | |
| 12 | 6 7 8 9 10 12 13 15 20 | 18 | 5 | 8x1.25 | 12 | 1.5 | 5 | 4 | 1 | |
| Part Number | L=0.1mm Increment | A | E=0.1mm Increment | F=1mm Increment | MxP (Coarse Thread) | ℓ | B | h1 | C | ||||
| Type | D | ||||||||||||
| Hex Socket (Standard) FCBDBR FCBDBRH FCBDR Hex Socket (Precision) FCBDGBR FCBDGR | 4 | 5.0~20.0 | 6 | 8 | 2.0~4.0 | 3, 4 | 2.6x0.45 | 0.8 | 2 | 2 | 0.5 | ||
| 5 | 8 | 10 | 3~6 | 3x0.5 | 1 | 2.5 | 2.5 | 0.5 | |||||
| 6 | 10 | 12 | 2.5~4.5 | 4~8 | 4x0.7 | 1.2 | 3 | 3 | 0.5 | ||||
| 8 | 12 | 16 | 5~10 | 5x0.8 | 1.4 | 4 | 3.5 | 1 | |||||
| 10 | 16 | 18 | 20 | 3.0~5.0 | 6~12 | 6x1.0 | 1.5 | 5 | 4 | 1 | |||
| 12 | 18 | 20 | 22 | 24 | 8~12 | 8x1.25 | 1.5 | 5 | 4 | 1 | |||
| 13 | 8x1.25 | 1.5 | 5 | 4 | 1 | ||||||||
| 15 | 20 | 22 | 24 | 10~15 | 10 x1.5 | 1.5 | 5 | 4 | 1 | ||||

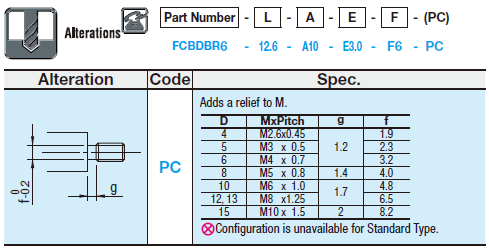

Alterations
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Shaft Dia. D (mm) | Thread Dia. | Material | Surface Treatment | Select L Dimension (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
MYR 15.30 | 1 Piece(s) | Available | 1 Day(s) | - | - | - | - | - | - | |
MYR 16.48 | 1 Piece(s) | Available | 1 Day(s) | - | 5 | 3 | S45C Equivalent | Black Oxide | 5 | |
MYR 16.68 | 1 Piece(s) | Available | 1 Day(s) | - | - | - | - | - | - | |
MYR 16.48 | 1 Piece(s) | Available | 1 Day(s) | 10 | 6 | 4 | S45C Equivalent | Black Oxide | 8 | |
MYR 18.83 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 5 | SUS303 Equivalent | Black Oxide | 6 | |
MYR 21.16 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 5 | SUS303 Equivalent | Black Oxide | 12 | |
MYR 21.19 | 1 Piece(s) | Available | 1 Day(s) | - | 10 | 6 | S45C Equivalent | Black Oxide | 15 | |
MYR 17.66 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 2.6 | SUS303 Equivalent | Not Provided | 5 | |
MYR 19.28 | 1 Piece(s) | Available | 1 Day(s) | 10 | 5 | 3 | SUS303 Equivalent | Not Provided | 5 | |
MYR 19.28 | 1 Piece(s) | Available | 1 Day(s) | - | - | - | - | - | - | |
MYR 18.83 | 1 Piece(s) | Available | 1 Day(s) | - | - | - | - | - | - | |
MYR 18.83 | 1 Piece(s) | Available | 1 Day(s) | - | - | - | - | - | - | |
MYR 19.28 | 1 Piece(s) | Available | 1 Day(s) | - | 5 | 3 | SUS303 Equivalent | Not Provided | 10 | |
MYR 20.62 | 1 Piece(s) | Available | 1 Day(s) | 10 | 6 | 4 | SUS303 Equivalent | Not Provided | 5 | |
MYR 20.62 | 1 Piece(s) | Available | 1 Day(s) | - | - | - | - | - | - | |
MYR 20.62 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 4 | SUS303 Equivalent | Not Provided | 7 | |
MYR 20.62 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 4 | SUS303 Equivalent | Not Provided | 8 | |
MYR 20.62 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 4 | SUS303 Equivalent | Not Provided | 10 | |
MYR 24.52 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 5 | SUS303 Equivalent | Not Provided | 7 | |
MYR 21.19 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 5 | SUS303 Equivalent | Not Provided | 8 | |
MYR 21.19 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 5 | SUS303 Equivalent | Not Provided | 12 | |
MYR 21.19 | 1 Piece(s) | Available | 2 Day(s) or more | - | 8 | 5 | SUS303 Equivalent | Not Provided | 20 | |
MYR 24.72 | 1 Piece(s) | Available | 1 Day(s) | - | 10 | 6 | SUS303 Equivalent | Not Provided | 10 | |
MYR 24.72 | 1 Piece(s) | Available | 1 Day(s) | - | 10 | 6 | SUS303 Equivalent | Not Provided | 12 | |
MYR 27.07 | 1 Piece(s) | Available | 1 Day(s) | - | 12 | 8 | SUS303 Equivalent | Not Provided | 6 |
Loading...

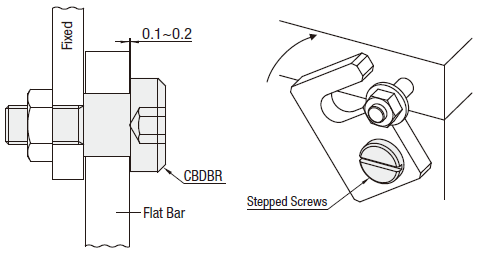

Example
Basic Information
| Basic Shape | Hex Socket | Shaft Tolerance | Standard Grade (-0.01/-0.05) | Hardness | No Hardened |
|---|---|---|---|---|---|
| Accuracy | Standard Grade (-0.01/-0.05) | Detailed Hardness | No Hardened |
Specification/Dimensions
-
Shaft Dia. D(mm)
-
Thread Dia.
-
Material
- S45C Equivalent
- SUS303 Equivalent
-
Surface Treatment
- Black Oxide
- Not Provided
-
Select L Dimension(mm)
-
type
- CBDBR
- CBDR
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
