Vertical Guide Rollers-Metal/Core Only

Metal Vertical Guide Rollers:Related Image
[ ! ]Please use these products for vertical applications.

Type[ M ]Material[ S ]Surface Treatment
RollerShaftRetaining RingBearingRollerShaftRetaining Ring
TGRBS45C EquivalentS45C EquivalentSpring SteelSteelElectroless Nickel PlatingElectroless Nickel Plating-
TGRSSUS304SUS304SUS304---
TGRAAluminum AlloyS45CSpring SteelClear AnodizeElectroless Nickel Plating-

Specifications

Part Number-L
TGRS30-30
Part NumberLNdCBrnmdhD1FM (Coarse)WUsedRetaining Ring Standards
TypeDBearingShapeJIS Nominal

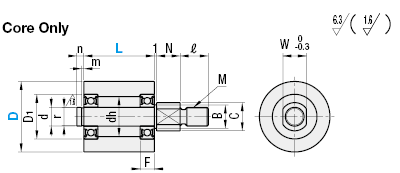

Core Only
TGRB
(S45C)
TGRS
(SUS304)
TGRA
(A5052)
202025   1069108520.71015568696ZZE TypeNo.5
  3040501069108520.71015568696ZZE TypeNo.5
252025   1069108520.71015568696ZZE TypeNo.5
  3040501069108520.71015568696ZZE TypeNo.5
302025   108121210730.915196810698ZZE TypeNo.7
  304050108121210730.915196810698ZZE TypeNo.7
352025   10101515139.631.151822610136900ZZC TypeNo.10
  30405010101515139.631.151822610136900ZZC TypeNo.10
402025   101218181411.531.152428812146001ZZC TypeNo.12
  304050101218181411.531.152428812146001ZZC TypeNo.12
50 25   101218181411.531.1524321012146201ZZC TypeNo.12
  304050101218181411.531.1524321012146201ZZC TypeNo.12
