Flanged Idlers with Teeth - S5M, S8M, S14M - Both Sides Bearing

Volume Discount

MISUMI_Test

Part Number

Configured Part Number is shown.

Flanged Idlers with Teeth/Both Sides Bearing/S5M/S8M/S14M:Related Image

[ ! ]Bearings are press-fitted. * Bearing Accuracy: JIS B1514 Class 0

Type	[ M ]Material					[ S ] Surface Treatment
	Main Body			Flange	Bearing
	S5M	S8M	S14M
AHTFW	Aluminum Alloy	A7075	-	A5052	Steel	Clear Anodize
KHTFW		Aluminum Alloy				Hard Clear Anodize^*1
BHTFW	S45C Equivalent			S45C Equivalent		Black Oxide
BHTFWNF^*2
MHTFW				S45C Equivalent		Electroless Nickel Plating

*1 Hard Clear Anodize: Film Hardness 300HV ~

*2 BHTFW_ -S14M is replaced with
BHTFWNF_-S14M as of April 1st, 2014

Specifications

Part Number				-	d

Type	Teeth	-	Applicable Belt
BHTFWNF	28	-	S14M400	-	30

■S5M Type (Both Sides Bearing Type)

Part Number			Shaft Diameter d	P.D.	O.D.	F	E	A	W	Dh	Bearing Dimensions			Compliance with Standard
Type	Teeth	Applicable Belt	Shaft Diameter d	P.D.	O.D.	F	E	A	W	Dh	No.	D	B	AHTFW	KHTFW	BHTFW	MHTFW
AHTFW KHTFW BHTFW MHTFW	16	S5M150	6	25.46	24.50	32	20	17	22	14.5	606ZZx2	17	6	●	●	●	●
	16	S5M250	6	25.46	24.50	32	20	27	32	14.5	606ZZx2	17	6	●	●	-	-
	18	S5M150	8	28.65	27.69	33	22	17	22	16.5	698ZZx2	19	6	●	●	●	●
	18	S5M250	8	28.65	27.69	33	22	27	32	16.5	698ZZx2	19	6	●	●	-	-
	20	S5M150	8	31.83	30.87	36	24	17	22	16.5	698ZZx2	19	6	●	●	●	●
	20	S5M250	8	31.83	30.87	36	24	27	32	16.5	698ZZx2	19	6	●	●	-	-
	22	S5M150	8	35.01	34.05	40	27	17	22	19.5	608ZZx2	22	7	●	●	●	●
	22	S5M250	8	35.01	34.05	40	27	27	32	19.5	608ZZx2	22	7	●	●	-	-
	24	S5M150	8	38.20	37.24	45	30	17	22	19.5	608ZZx2	22	7	●	●	●	●
	24	S5M250	8	38.20	37.24	45	30	27	32	19.5	608ZZx2	22	7	●	●	-	-
	25	S5M100	6	39.79	38.83	45	30	11	16	13	696ZZx2	15	5	●	●	●	●
		S5M150		39.79	38.83	45	30	17	22	13	696ZZx2	15	5	●	●	●	●
		S5M250		39.79	38.83	45	30	27	32	14.5	606ZZx2	17	6	●	●	-	-
	25	S5M100	8	39.79	38.83	45	30	11	16	16.5	698ZZx2	19	6	●	●	●	●
		S5M150		39.79	38.83	45	30	17	22	16.5	698ZZx2	19	6	●	●	●	●
		S5M250		39.79	38.83	45	30	27	32	19.5	608ZZx2	22	7	●	●	-	-
	26	S5M150	10	41.38	40.42	48	35	17	22	25	6200ZZx2	30	9	●	●	●	●
	26	S5M250	10	41.38	40.42	48	35	27	32	25	6200ZZx2	30	9	●	●	-	-
	28	S5M100	10	44.56	43.60	48	35	11	16	19.5	6900ZZx2	22	6	●	●	●	●
		S5M150		44.56	43.60	48	35	17	22	19.5	6900ZZx2	22	6	●	●	●	●
		S5M250		44.56	43.60	48	35	27	32	25	6200ZZx2	30	9	●	●	-	-
	30	S5M150	12	47.75	46.79	52	36	17	22	25	6001ZZx2	28	8	●	●	●	●
	30	S5M250	12	47.75	46.79	52	36	27	32	27	6201ZZx2	32	10	●	●	-	-
	32	S5M150	12	50.93	49.97	55	40	17	22	25	6001ZZx2	28	8	●	●	-	-
	32	S5M250	12	50.93	49.97	55	40	27	32	27	6201ZZx2	32	10	●	●	-	-
	36	S5M150	15	57.30	56.34	61	45	17	22	29	6002ZZx2	32	9	●	●	●	●
	36	S5M250	15	57.30	56.34	61	45	27	32	30	6202ZZx2	35	11	●	●	-	-
	40	S5M150	15	63.66	62.70	67	50	17	22	29	6002ZZx2	32	9	●	●	-	-
	40	S5M250	15	63.66	62.70	67	50	27	32	30	6202ZZx2	35	11	●	●	-	-

■S8M Type (Both Sides Bearing Type)

Part Number			Shaft Diameter d	P.D.	O.D.	F	E	A	W	Dh	Bearing Dimensions			Compliance with Standard
Type	Teeth	Applicable Belt	Shaft Diameter d	P.D.	O.D.	F	E	A	W	Dh	No.	D	B	AHTFW	KHTFW	BHTFW	MHTFW
AHTFW KHTFW BHTFW MHTFW	22	S8M250	12	56.02	54.65	61	45	28	33	27	6201ZZx2	32	10	●	●	●	●
		S8M300		56.02	54.65	61	45	33	38	27	6201ZZx2	32	10	-	-	●	●
		S8M400		56.02	54.65	61	45	44	49	27	6201ZZx2	32	10	●	●	●	●
	24	S8M250	12	61.12	59.74	67	50	28	33	27	6201ZZx2	32	10	●	●	●	●
		S8M300		61.12	59.74	67	50	33	38	27	6201ZZx2	32	10	-	-	●	●
		S8M400		61.12	59.74	67	50	44	49	27	6201ZZx2	32	10	●	●	●	●
	25	S8M250	12	63.66	62.29	70	56	28	33	27	6201ZZx2	32	10	●	●	●	●
		S8M300		63.66	62.29	70	56	33	38	27	6201ZZx2	32	10	-	-	●	●
		S8M400		63.66	62.29	70	56	44	49	27	6201ZZx2	32	10	●	●	●	●
	26	S8M150	12	66.21	64.84	74	58	17	22	25	6001ZZx2	28	8	●	●	●	●
		S8M250		66.21	64.84	74	58	28	33	25	6001ZZx2	28	8	●	●	●	●
		S8M300		66.21	64.84	74	58	33	38	27	6201ZZx2	32	10	-	-	●	●
		S8M400		66.21	64.84	74	58	44	49	27	6201ZZx2	32	10	●	●	●	●
	28	S8M250	15	71.30	69.93	80	60	28	33	30	6202ZZx2	35	11	●	●	●	●
		S8M300		71.30	69.93	80	60	33	38	30	6202ZZx2	35	11	-	-	●	●
		S8M400		71.30	69.93	80	60	44	49	30	6202ZZx2	35	11	●	●	●	●
	30	S8M150	15	76.39	75.02	87	67	17	22	29	6002ZZx2	32	9	●	●	●	●
		S8M250		76.39	75.02	87	67	28	33	29	6002ZZx2	32	9	●	●	●	●
		S8M300		76.39	75.02	87	67	33	38	30	6202ZZx2	35	11	-	-	●	●
		S8M400		76.39	75.02	87	67	44	49	30	6202ZZx2	35	11	●	●	●	●
	30	S8M250	20	76.39	75.02	87	67	28	33	37	6004ZZx2	42	12	●	●	●	●
		S8M300		76.39	75.02	87	67	33	38	41	6204ZZx2	47	14	-	-	●	●
		S8M400		76.39	75.02	87	67	44	49	41	6204ZZx2	47	14	●	●	●	●
	32	S8M250	20	81.49	80.12	87	67	28	33	41	6204ZZx2	47	14	●	●	●	●
		S8M300		81.49	80.12	87	67	33	38	41	6204ZZx2	47	14	-	-	●	●
		S8M400		81.49	80.12	87	67	44	49	41	6204ZZx2	47	14	●	●	●	●
	34	S8M250	20	86.58	85.21	95	75	28	33	41	6204ZZx2	47	14	●	●	●	●
		S8M300		86.58	85.21	95	75	33	38	41	6204ZZx2	47	14	-	-	●	●
		S8M400		86.58	85.21	95	75	44	49	41	6204ZZx2	47	14	●	●	●	●
	40	S8M250	25	101.86	100.49	111	90	28	33	43	6005ZZx2	47	12	●	●	-	-
		S8M300		101.86	100.49	111	90	33	38	47	6205ZZx2	52	15	●	●	-	-
		S8M400		101.86	100.49	111	90	44	49	47	6205ZZx2	52	15	●	●	-	-

■S14M Type (Both Sides Bearing Type) [ ! ] On 2014 and later, S14M Type is to be delivered with flange included (but not swaged on).

Part Number			Shaft Diameter d	P.D.	O.D.	F	E	A	W	Dh	Bearing Dimensions
Type	Teeth	Applicable Belt	Shaft Diameter d	P.D.	O.D.	F	E	A	W	Dh	No.	D	B
BHTFWNF	28	S14M400	30	124.78	121.98	136	101	46	53	57	6206ZZx2	62	16
		S14M600	30	124.78	121.98	136	101	67	74	57	6206ZZx2	62	16
		S14M400	40	124.78	121.98	136	101	46	53	73.5	6208ZZx2	80	18
		S14M600	40	124.78	121.98	136	101	67	74	73.5	6208ZZx2	80	18

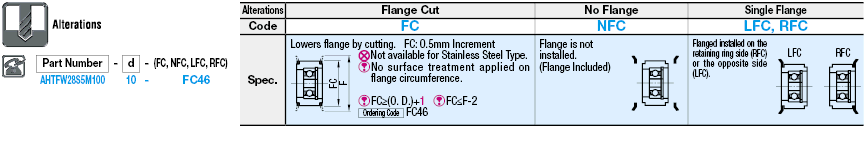

Alterations
