Hex Socket Set Screws - Flat End
Part Number
Configured Part Number is shown.
| Type | [ M ]Material | [ H ]Hardness | [ S ]Surface Treatment | |
| L Dimension Selectable | MSSF | SCM435 equivalent | 45HRC~ | Black Oxide |
| MSSFS | SCM435 equivalent | - | - | |
| L Configurable | FSSF | S45C | - | Black Oxide |
| FSSFS | SCM435 equivalent | - | - | |
Specifications
| Part Number | - | L |
| MSSF5 -10 FSSF6 | - | 100 |
| Part Number | Thread Pitch | B | C (Min.) | d (Max.) | |||
| Type | M | - | L | ||||
| MSSF MSSFS (Stainless Steel) | 2 | - | 2 | 0.4 | 0.9 | 0.8 | 1 |
| 3 | 0.4 | 0.9 | 0.8 | 1 | |||
| 4 | 0.4 | 0.9 | 0.8 | 1 | |||
| 2.6 | - | 3 | 0.45 | 1.3 | 1.2 | 1.2 | |
| 4 | 0.45 | 1.3 | 1.2 | 1.2 | |||
| 5 | 0.45 | 1.3 | 1.2 | 1.2 | |||
| 3 | - | 2.5 | 0.5 | 1.5 | 1.2 | 1.4 | |
| 3 | 0.5 | 1.5 | 1.2 | 1.4 | |||
| 4 | 0.5 | 1.5 | 1.2 | 1.4 | |||
| 5 | 0.5 | 1.5 | 1.2 | 1.4 | |||
| 6 | 0.5 | 1.5 | 1.2 | 1.4 | |||
| 8 | 0.5 | 1.5 | 1.2 | 1.4 | |||
| 10 | 0.5 | 1.5 | 1.2 | 1.4 | |||
| 12 | 0.5 | 1.5 | 1.2 | 1.4 | |||
| 4 | - | 3 | 0.7 | 2 | 1.5 | 2 | |
| 4 | 0.7 | 2 | 1.5 | 2 | |||
| 5 | 0.7 | 2 | 1.5 | 2 | |||
| 6 | 0.7 | 2 | 1.5 | 2 | |||
| 8 | 0.7 | 2 | 1.5 | 2 | |||
| 10 | 0.7 | 2 | 1.5 | 2 | |||
| 12 | 0.7 | 2 | 1.5 | 2 | |||
| 16 | 0.7 | 2 | 1.5 | 2 | |||
| Part Number | Thread Pitch | B | C (Min.) | d (Max.) | |||
| Type | M | - | L | ||||
| MSSF MSSFS (Stainless Steel) | 5 | - | 4 | 0.8 | 2.5 | 2 | 2.5 |
| 5 | 0.8 | 2.5 | 2 | 2.5 | |||
| 6 | 0.8 | 2.5 | 2 | 2.5 | |||
| 8 | 0.8 | 2.5 | 2 | 2.5 | |||
| 10 | 0.8 | 2.5 | 2 | 2.5 | |||
| 12 | 0.8 | 2.5 | 2 | 2.5 | |||
| 16 | 0.8 | 2.5 | 2 | 2.5 | |||
| 20 | 0.8 | 2.5 | 2 | 2.5 | |||
| 6 | - | 5 | 1.0 | 3 | 2 | 3 | |
| 6 | 1.0 | 3 | 2 | 3 | |||
| 8 | 1.0 | 3 | 2 | 3 | |||
| 10 | 1.0 | 3 | 2 | 3 | |||
| 12 | 1.0 | 3 | 2 | 3 | |||
| 16 | 1.0 | 3 | 2 | 3 | |||
| 20 | 1.0 | 3 | 2 | 3 | |||
| 25 | 1.0 | 3 | 2 | 3 | |||
| 8 | - | 6 | 1.25 | 4 | 3 | 5 | |
| 8 | 1.25 | 4 | 3 | 5 | |||
| 10 | 1.25 | 4 | 3 | 5 | |||
| 12 | 1.25 | 4 | 3 | 5 | |||
| 16 | 1.25 | 4 | 3 | 5 | |||
| 20 | 1.25 | 4 | 3 | 5 | |||
| 25 | 1.25 | 4 | 3 | 5 | |||
| 30 | 1.25 | 4 | 3 | 5 | |||
| Part Number | L 1mm Increment | B | C (Min.) | d (Max.) | |
| Type | M | ||||
| FSSF FSSFS (Stainless Steel) | 5 | 20~250 | 2.5 | 3 | 3.5 |
| 6 | 3.0 | 3.5 | 4.0 | ||
| 8 | 20~400 | 4.0 | 5 | 5.5 | |
| 10 | 5.0 | 6 | 7 | ||
| 12 | 6.0 | 8 | 8.5 | ||
| 16 | 8.0 | 10 | 12 | ||
| 20 | 10.0 | 12 | 15 | ||

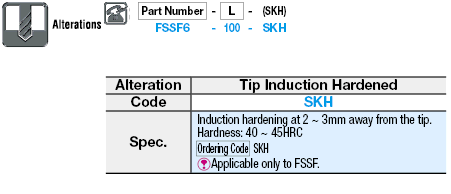

Alterations
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Nominal of Thread (M) | Length L (mm) (mm) | Material | Surface Treatment_ |
|---|---|---|---|---|---|---|---|---|---|
MYR 8.20 | 1 Piece(s) | Available | 1 Day(s) | - | 2 | 2 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 8.20 | 1 Piece(s) | Available | 1 Day(s) | - | 2 | 4 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.60 | 1 Piece(s) | Available | 1 Day(s) | - | 2.6 | 3 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.60 | 1 Piece(s) | Available | 1 Day(s) | - | 2.6 | 5 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 3 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 4 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 5 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 6 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 8 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 10 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 12 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.50 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 3 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 4 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 5 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 6 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 8 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 10 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 12 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 16 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 5.50 | 1 Piece(s) | Available | 1 Day(s) | - | 5 | 4 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.11 | 1 Piece(s) | Available | 1 Day(s) | - | 5 | 5 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.11 | 1 Piece(s) | Available | 1 Day(s) | - | 5 | 6 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.11 | 1 Piece(s) | Available | 1 Day(s) | - | 5 | 8 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.11 | 1 Piece(s) | Available | 1 Day(s) | - | 5 | 10 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.11 | 1 Piece(s) | Available | 1 Day(s) | 10 | 5 | 12 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.11 | 1 Piece(s) | Available | 1 Day(s) | - | 5 | 16 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.11 | 1 Piece(s) | Available | 1 Day(s) | - | 5 | 20 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.29 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 6 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.29 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 8 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.29 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 10 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.29 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 12 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.29 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 16 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.29 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 20 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.29 | 1 Piece(s) | Available | 1 Day(s) | - | 6 | 25 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 7.19 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 8 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 7.19 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 10 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 7.19 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 12 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.60 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 16 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 7.19 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 20 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 7.19 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 25 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 6.60 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | 30 | [Steel] SCM435 Equiv. | Black Oxide | |
MYR 8.20 | 1 Piece(s) | Available | 1 Day(s) | - | 2 | 2 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 8.20 | 1 Piece(s) | Available | 1 Day(s) | - | 2 | 3 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 8.20 | 1 Piece(s) | Available | 1 Day(s) | - | 2 | 4 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 6.60 | 1 Piece(s) | Available | 2 Day(s) or more | - | 2.6 | 3 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 6.60 | 1 Piece(s) | Available | 2 Day(s) or more | - | 2.6 | 4 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 6.60 | 1 Piece(s) | Available | 2 Day(s) or more | - | 2.6 | 5 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | 10 | 3 | 3 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 4 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 5 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 6 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.29 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 8 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 4.40 | 1 Piece(s) | Available | 1 Day(s) | - | 3 | 12 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.50 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 3 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 4 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 5 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | 10 | 4 | 6 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 8 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 5.46 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 10 | [Stainless Steel] SUS304 Equiv. | Not Provided | |
MYR 4.40 | 1 Piece(s) | Available | 1 Day(s) | - | 4 | 12 | [Stainless Steel] SUS304 Equiv. | Not Provided |
Loading...
Basic Information
| Mounting Hole Shape | Hex Socket | Basic Shape | Set Screw | Thread Type | Metric, Coarse |
|---|---|---|---|---|---|
| Tip Shape | Flat End | Sales Unit | Low Quantity (Available beginning with 1 pc.) | Application | Standard |
Specification/Dimensions
-
Nominal of Thread (M)
-
Length L (mm)(mm)
-
Material
- Steel
- Stainless Steel
- Steel
-
Surface Treatment_
- Not Provided
- Black Oxide
-
type
- MSSF
- MSSFS
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
- 3 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- Crush Pads
- Hex Socket Set Screws/Flat End (Box)
- Socket Head Cap Screws/with Soft Point
- Hex Socket Set Screws - Cup Point
- Hex Socket Set Screw Flat Tip
- Hex Socket Set Screw Cone Point
- Rounded-Tip Hex Socket Set Screw
- Hex Set Screw with Cupped End - Inch Size
Complementary Products
-
Nuts/Right-Hand Thread (Box)
MISUMI_Test Standard Price : MYR 72.60- Days to Ship : 1 Day(s) or more
-
Socket Head Cap Screws (Box)【150-1,000 Pieces Per Package】
MISUMI_Test Standard Price : MYR 124.96- Days to Ship : 1 Day(s) or more
Customers Who Viewed This Item Also Viewed
-
Metal Washers - T Dimension Configurable, Precision ClassMISUMI_Test
Days to Ship : 1 Day(s) or more
-
-
-
-
-
-
Hex Socket Extra Low Head Cap ScrewsMISUMI_Test
Standard Price : MYR 0.68-
Days to Ship : 1 Day(s) or more
-
-
Hex Socket Set Screws - Soft TipsMISUMI_Test
Standard Price : MYR 7.70-
Days to Ship : 1 Day(s) or more
-
Hex Socket Set Screws - Cup PointMISUMI_Test
Standard Price : MYR 3.30-
Days to Ship : 1 Day(s) or more
-
Socket Head Cap Screws/Stainless SteelMISUMI_Test
Standard Price : MYR 3.50-
Days to Ship : 1 Day(s) or more
-
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：(60) 3 7960 8499 / FAX：(60) 3 7960 7499
- 9:00am - 6:00pm (Monday - Friday)
9:00am - 1:00pm (Saturday) - Technical Inquiry
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
