Hex Socket Head Reamer Bolts - Configurable Length
Part Number
Configured Part Number is shown.
RMBR5-23

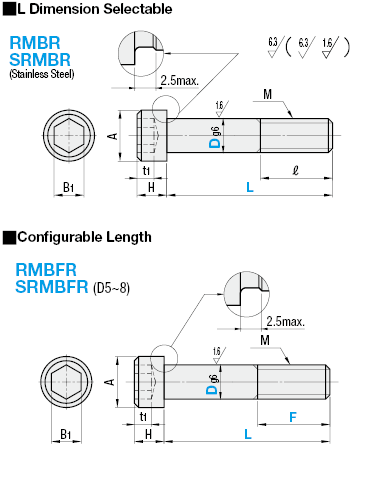

| Type | [ M ]Material | [ S ]Surface Treatment | |
| L Dimension Selectable | Configurable Length | ||
| RMBR | RMBFR | S45C | Black Oxide |
| SRMBR | SRMBFR | SUS304 equivalent | - |
Specifications
| Part Number | - | L |
| RMBR6 | - | 32 |
| Part Number | - | L | - | F |
| RMBFR5 | - | 28 | - | F10 |
| Part Number | L | M (Coarse) | ℓ | B1 | A | H | t1 max |
|||||||||||||||
| Type | Dg6 | |||||||||||||||||||||
| RMBR (D5~8) SRMBR (D5~8) |
5 | -0.004 -0.012 |
23 | 26 | 29 | M5 | 6 | 3 | 8.5 | 3.5 | 2.4 | |||||||||||
| 6 | -0.004 -0.012 |
23 | 26 | 29 | 32 | 35 | M6 | 8 | 4 | 10 | 4.0 | 3 | ||||||||||
| 8 | -0.005 -0.014 |
32 | 35 | 36 | 38 | M8 | 10 | 5 | 13 | 5.0 | 3.75 | |||||||||||
| Part Number | 1mm Increment | M (Coarse) | B1 | A | H | t1 max |
d | a | |||
| Type | Dg6 | L | F | ||||||||
| RMBFR SRMBFR (D5~8) |
5 | -0.004 -0.012 |
20~29 | M≤F≤L-10 | M5 | 3 | 8.5 | 3.5 | 2.4 | 9.0 | 0.5 |
| 6 | -0.004 -0.012 |
20~35 | M6 | 4 | 10 | 4 | 3 | 9.0 | 0.5 | ||
| 8 | -0.005 -0.014 |
20~38 | M8 | 5 | 13 | 5 | 3.75 | 10.4 | 0.5 | ||
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| RMBR5-23 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Nominal of Thread (M) | Length L (mm) | Pitch (mm) | Material | Surface Treatment_ | Thread Length ℓ (mm) | Shaft Dia. Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 14.29 | 1 Piece(s) | Available | 1 Day(s) | 5 | 23 | 0.8 | [Steel] S45C | Black Oxide | 6 | -0.012~-0.004 |
Loading...
Basic Information
| Detailed Shape | Standard | Mounting Hole Shape | Hex Socket | Basic Shape | Reamer |
|---|---|---|---|---|---|
| Thread Type | Metric, Coarse | Sales Unit | Low Quantity (Available beginning with 1 pc.) | Application | Standard |
Please check the type/dimensions/specifications of the part RMBR5-23 in the Hex Socket Head Reamer Bolts - Configurable Length series.
Specification/Dimensions
-
Nominal of Thread (M)
-
Length L(mm)
-
Pitch(mm)
-
Material
- Steel
- Stainless Steel
- Steel
-
Thread Length ℓ(mm)
- 6
- 10
-
Shaft Dia. Tolerance
-
type
- RMBR
- SRMBR
-
Surface Treatment_
- Not Provided
- Black Oxide
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Products like this...
| Part Number |
|---|
| SRMBR5-29 |
| SRMBR8-38 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Nominal of Thread (M) | Length L (mm) | Pitch (mm) | Material | Surface Treatment_ | Thread Length ℓ (mm) | Shaft Dia. Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 21.19 | 1 Piece(s) | Available | 1 Day(s) | 5 | 29 | 0.8 | [Stainless Steel] SUS304 Equivalent | Not Provided | 6 | -0.012~-0.004 | |
MYR 25.15 | 1 Piece(s) | Available | 1 Day(s) | 8 | 38 | 1.25 | [Stainless Steel] SUS304 Equivalent | Not Provided | 10 | -0.014~-0.005 |
