KVC36SB 0.5 mm2 Shield Layer
With 300 V UL Standard Signal Shield
- c-UL
- VW-1
- FT-1
- ULAWM
- Oil-Resistant
- Strand Wire
- Single Shield
- Less than 100 V

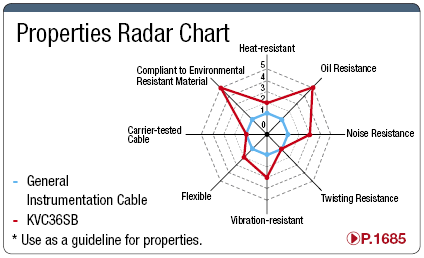

● Flexible / oil-resistant model cables for weak circuit signals (shielded). (UL2936/UL2576 acquisition by size)
· This product is compatible with "UL Traceability Program / Processed Wire."
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* Color and softness may vary slightly due to manufacturer changes.
The Electrical Appliance and Material Safety Law certificate has not been obtained.
Part Number
Configured Part Number is shown.

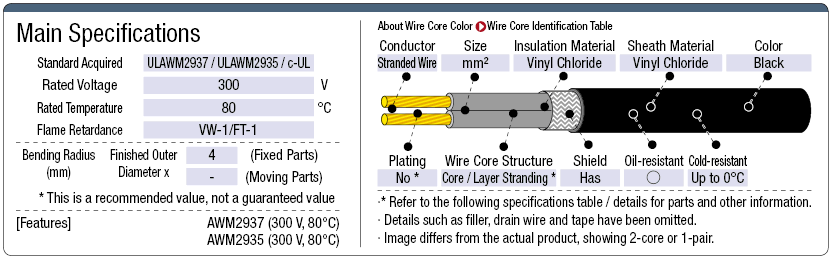

Specifications
| Model Number | Section Area (mm2) | Number of Cores | Total Length or Specified Length |
| KVC36SB | 0.5 | 2 | 1 ~ 100 (Specify 1 m Increment) |
| 3 | |||
| 4 | |||
| 6 | |||
| 8 | |||
| 10 | |||
| 12 | |||
| 14 | |||
| 16 | |||
| 20 | |||
| 24 | |||
| 30 | |||
| 40 | |||
| 50 | |||
| 60 |
More Information
Specifications

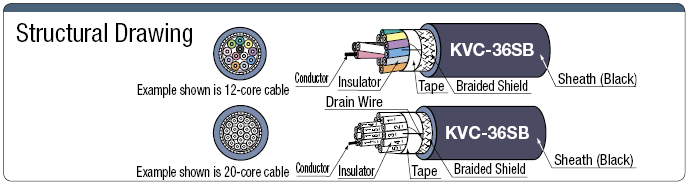

| Model Number | Section Area (mm2) | Number of Cores | AWG Estimate* 1 | Twisted Structure (See Figure) | Number of Wire Cores | Finished *7 Outer Diameter (mm) | Approximate Mass kg/km | Electrical Properties | Conductor | Insulation | Wire Core Outer Diameter Approx. (mm) | Sheath | Specification | Sample Provided* 4 | |||||||
| Allowable Current A (30°C)* 2 | Conductor Resistance Ω / km (20°C) | Insulation Properties MΩkm (20°C) | Withstand Voltage V / Min | Structure Strands / mm | Outer Diameter Approx. (mm) | Plating *3 | Thickness (mm) | Material *3 | Thickness (mm) | Material *3 | |||||||||||
| KVC36SB | 0.5 | 2 | 20 | Core / Layer Stranding | 2 | 5.6 | 45 | 10 | 34.3 or less | 50 or more | 2000 | 22/0.18 | 0.95 | N/A | 0.35 | PVC | 1.65 | 0.75 | PVC | ULAWM 2937 c-UL | — |
| 3 | 3 | 5.9 | 50 | 9 | 0.75 | — | |||||||||||||||
| 4 | 4 | 6.3 | 60 | 8 | 0.75 | — | |||||||||||||||
| 6 | 6 | 7.7 | 95 | 7 | 1.05 | ULAWM 2935 c-UL | — | ||||||||||||||
| 8 | 8 | 8.2 | 115 | 6 | 1.05 | — | |||||||||||||||
| 10 | 10 | 9.3 | 140 | 6 | 1.03 | — | |||||||||||||||
| 12 | 12 | 9.6 | 150 | 6 | 1.03 | — | |||||||||||||||
| 14 | 14 | 10.0 | 165 | 5 | 1.03 | — | |||||||||||||||
| 16 | 16 | 10.5 | 190 | 5 | 1.03 | — | |||||||||||||||
| 20 | 20 | 12.0 | 225 | 5 | 1.1 | — | |||||||||||||||
| 24 | 24 | 11.5 | 265 | 5 | 1.1 | — | |||||||||||||||
| 30 | 30 | 13.5 | 310 | 4 | 1.1 | — | |||||||||||||||
| 40 | 40 | 15.5 | 400 | 4 | 1.1 | — | |||||||||||||||
| 50 | 50 | 17.0 | 490 | 4 | 1.2 | — | |||||||||||||||
| 60 | 60 | 18.0 | 560 | 3 | 1.2 | — | |||||||||||||||
*1 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*2 Allowable current is to be used only as a reference value and is not guaranteed.
*3 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material; P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other
Current Reduction Factor
| Ambient Temperature (°C) | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Current Reduction Factor | 1.00 | 0.93 | 0.86 | 0.77 | 0.68 | 0.58 | 0.45 | 0.26 |
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value 10 x 0.93 = 9.3 (A) when the ambient temperature is 40°C at 2-core 0.5mm2
Wire Core Identification Table
| Number of Core Lines | Wire Core Identification Method |
| 12-core or less | Insulator Coloring Method (Order: Black, White, Red, Green, Yellow, Brown, Blue, Gray, Orange, Purple, Pink, Light Green) |
| 13-core or more | Numbering Method (Numbers 1,2, 3,4... are consecutively printed on the surface of the white insulator) |
Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
* For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
*5 Stock products are indicated with T or A in the price column at right.
*6 All unit prices above are per meter.
Unit Price Calculation Method
[Formula: Last digits of model number (m) x unit price per meter above]
*7 For the outer diameter size of cables, wire sheath (coat), etc., refer to "Finished Outer Diameter" in the table above.
| Part Number |
|---|
| KVC36SB-0.5-2-9 |
| KVC36SB-0.5-3-48 |
| KVC36SB-0.5-4-55 |
| KVC36SB-0.5-12-96 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Overall Length (m) | Number Of Cores (Core) | Finished outer diameter (mm) |
|---|---|---|---|---|---|---|---|
MYR 207.07 | 1 Piece(s) | 2 Day(s) or more | 9 | 2 | 5.6 | ||
MYR 1,263.74 | 1 Piece(s) | 2 Day(s) or more | 48 | 3 | 5.9 | ||
MYR 1,708.12 | 1 Piece(s) | 2 Day(s) or more | 55 | 4 | 6.3 | ||
MYR 5,861.56 | 1 Piece(s) | 2 Day(s) or more | 96 | 12 | 9.8 |
Loading...
Basic Information
| Conductor Cross Section(mm2) | 0.5 | AWG size(AWG) | 20 | Rated Voltage | 300V |
|---|---|---|---|---|---|
| Shield | Present | Properties | Oil resistance | Representative Standard | UL / CSA(c-UL) |
| Sheath (outer coating) color | Black | Sheath (outer coating) material | PVC | Insulation body materials | PVC |
| Power supply/signal | Dual use | Other properties | Pliability / Noise Resistance |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
