Cable Connector (Multi-Hole)
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
Cable connection with 2 φ4 Holes (Multi-hole)

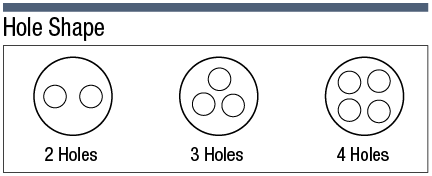

● This is a multi-hole model cable gland with 2 – 4 holes on the body.
● Mounting screws are M screws.
● It can also be mounted on unthreaded panels by using the supplied lock nut.
● It is IP68 protective structure compliant.
· Depending on the quantity of your order, the delivery time may require an estimate.
· The appearance and specifications are subject to change without notice.
Part Number
Configured Part Number is shown.
CRMPH-2M16-3041-G
Specifications
■Standard Table

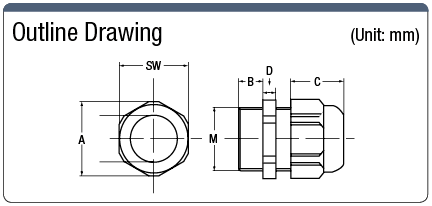

| Model Number | No. | Color | Number of Holes | Applicable Electric Wire Diameter (mm) | SW | A | B | C | D | Weight (g) | Mounting Screw | Mounting Hole Diameter (mm) | Compatible Plate Thickness |
| CRMPH | 2M12-2031 | G (Gray) B (Black) | 2 | Ø2.0 ~ 3.1 | 19 | 21.2 | 9 | 16.6 | 5 | 8 | M12 (P = 1.5) | 12.3 | 2.5mm or less |
| 2M16-3041 | Ø3.0 ~ 4.1 | 22 | 25 | 15 | 19 | 5.5 | 13 | M16 (P = 1.5) | 16.3 | 7mm or less | |||
| 2M20-4361 | Ø4.3 ~ 6.1 | 27 | 30.4 | 21.2 | 20 | M20 (P = 1.5) | 20.3 | ||||||
| 3M12-1626 | 3 | Ø1.6 ~ 2.6 | 19 | 21.2 | 9 | 16.6 | 5 | 8 | M12 (P = 1.5) | 12.3 | 2.5mm or less | ||
| 3M16-3042 | Ø3.0 ~ 4.2 | 22 | 25 | 15 | 19 | 5.5 | 13 | M16 (P = 1.5) | 16.3 | 7mm or less | |||
| 3M20-2636 | Ø2.6 ~ 3.6 | 27 | 30.4 | 21.2 | 21 | M20 (P = 1.5) | 20.3 | ||||||
| 3M20-3552 | Ø3.5 ~ 5.2 | 20 | |||||||||||
| 4M12-1323 | 4 | Ø1.3 ~ 2.3 | 19 | 21.2 | 9 | 16.6 | 5 | 8 | M12 (P = 1.5) | 12.3 | 2.5mm or less | ||
| 4M16-2434 | Ø2.4 ~ 3.4 | 22 | 25 | 15 | 19 | 5.5 | 13 | M16 (P = 1.5) | 16.3 | 7mm or less | |||
| 4M20-3448 | Ø3.4 ~ 4.8 | 27 | 30.4 | 21.2 | 21 | M20 (P = 1.5) | 20.3 |
More Information
Specifications

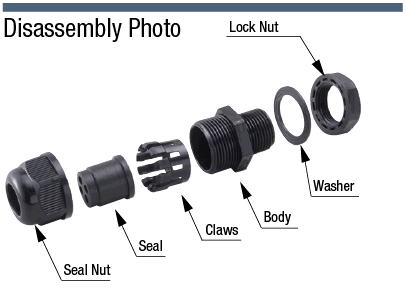

| Material | 66 Nylon (Body, Claws, Lock Nut, Seal Nut) UL94V-2 |
| EPDM (Washer and Seal) | |
| Protective Structure | IP68 |
| Operating Temperature Range | -40°C ~ +105°C |
| Color | Gray (Standard) or Black (Weather Resistant) |
Basic Information
| Material (Main body) | Nylon 66 / EPDM | Operating temperature range(℃) | -40 ~ 105 | Conforming wire diameter(mm) | Ø 3.0 ~ 4.1 |
|---|---|---|---|---|---|
| Mounting screw | M16 (P = 1.5) | Color | Gray | Mounting hole diameter(mm) | 16.3mm |
| Number of Holes(Piece) | 2 |
Please check the type/dimensions/specifications of the part CRMPH-2M16-3041-G in the Cable Connector (Multi-Hole) series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
