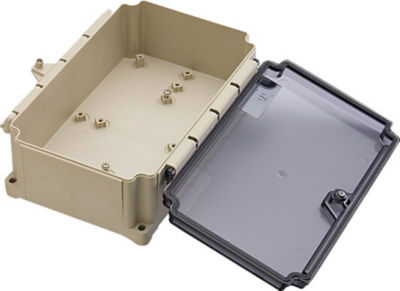

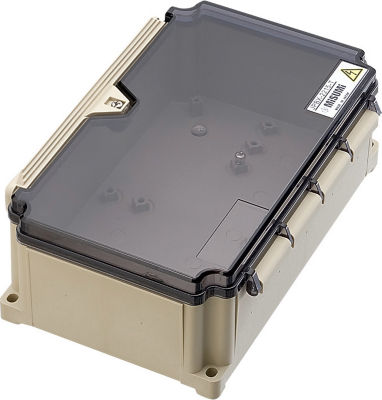

Plastic Control Box JPBX Series
Opening and closing type box ideal for relay applications of signal lines / power lines
- IP67

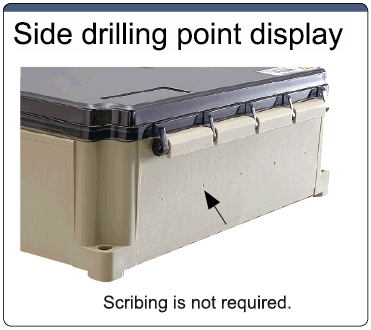

- Hole Machining
● Made in Japan to keep designers happy.

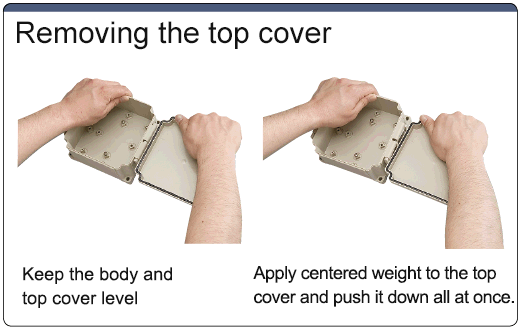

● Door can open and close with 1 screw, reducing the number of work-hours.

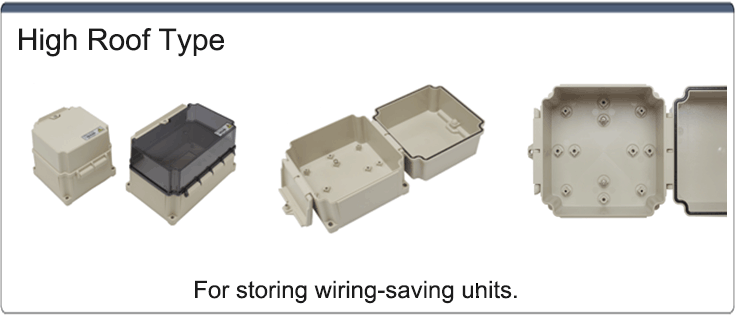

● Select a high roof-style product for storing tall equipment.
| Top Cover Color | Beige | Transparent (Smoky Brown) | |
| Material | Top Cover | PBT GF30% (UL94 V-0) | Polyarylate (UL94 V-2 Equivalent) |
| Body | PBT GF30% (UL94 V-0) | ||
| Handle | Nylon 66 GF30% (UL94 V-0) | ||
| Cover Fixing Screw | Stainless Steel | ||
| Seal | Urethane Foam | ||
| Tapping Screw | Iron (Nickel Plated) M4 × 8, 2 pieces (included inside main body) | ||
| Protection Grade | IP67 | ||
| Operating Temperature Range | -40°C to +80°C | -40°C to +65°C | |
| Plate Thickness | Top Cover: 3 mm, Body: 3.5 mm | ||
| Body color | Approximate Munsell No. 5Y7/1 | ||
· Hole drilling on top or bottom surfaces is not supported.
Part Number
Configured Part Number is shown.
JPBX-2215H-G
Specification Table
| Type | Model | Standard Unit Price | Slide Unit Price | Shipping Date Same-day shipping must be specified |
| 1 to 9 pcs | 10 to 99 pcs | |||
| Low Profile | JPBX-1315-G | - | - | - |
| JPBX-2215-G | - | - | ||
| High Roof | JPBX-1315H-G | - | - | - |
| JPBX-2215H-G | - | - |
| Type | Model | Standard Unit Price | Slide Unit Price | Shipping Date Same-day shipping must be specified |
| 1 to 9 pcs | 10 to 99 pcs | |||
| Low Profile | JPBX-1315-T | - | - | - |
| JPBX-2215-T | - | - | ||
| High Roof | JPBX-1315H-T | - | - | - |
| JPBX-2215H-T | - | - |
Basic Specifications
Basic Information
| Type | Control box | Dimension width W(mm) | 220 | Dimension vertical H(mm) | 151 |
|---|---|---|---|---|---|
| Dimension depth D(mm) | 121 | Material | Resin | Protection function (environmentally resistant) | IP67 |
| Intermediate plate | Without Board | Installation | Indoor | Locking type | Compact and Versatile Screw-Fastened Model |
| Main body plate thickness(mm) | 3.5 | Features | High Roof | Color | Beige Cover |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
