Sensor Amplifier Box (with Door, Transparent Lid)
Click this image to zoom it.
Move the mouse over the image to zoom

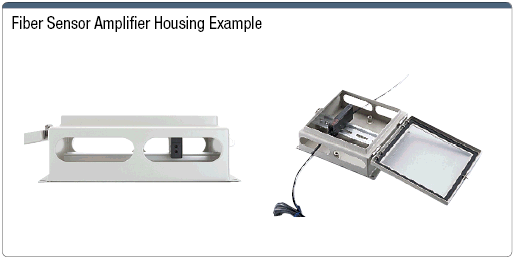

Sensor amplifier storage box in which display unit can be seen
- Space-saving
- Steel
- Fixed Size
● The door can be opened and closed, allowing the amplifier to be configured easily.
● It has the sturdiness that takes into account mounting on a global device and the design that considers maintainability and safety.
● The height of the long hole on the side is aligned with the fiber insertion position.
● Size variation that can accommodate the consolidation of a sensor amplifier.

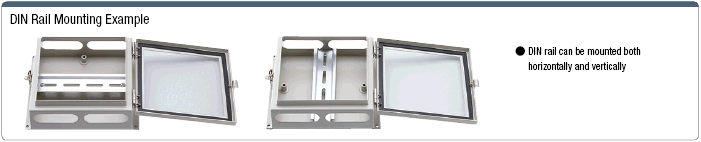

● Dedicated DIN rail is also available.
Components
| Thickness (Door / Body) | 1.5 mm | |
| Materials / Specifications | Door | SPCC Baked Finish |
| Body | SPCC Baked Finish | |
| Rubber Packing | EPDM t1.0 | |
| Transparent Panel | * Acrylic t1.0 / t1.2 | |

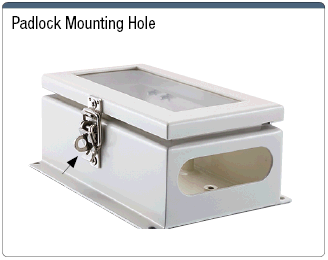

| Snap Lock (With Padlock Mounting Hole) | SUS304 Barrel Finish | |
| Snap Lock Mounting Screw | SUS304 Dish M3 x 6 | |
| Hinge | SUS304 Barrel Finish | |
| Hinge Mounting Screw | SUS304 Pan M3 x 5 | |
| Caulking Boss | SUS303 (Screw Holes M4 Thread, Effective Depth 8 mm) | |
| Film Grommet (Long Hole Model) | EPDM | |
| Dedicated DIN Rail | A6063S-T5 Anodize Treatment | |
Part Number
Configured Part Number is shown.
Specifications
| No Long Side Hole | Standard Unit Price | Slide Unit Price | Self Weight (kg) | With Long Side Hole | Standard Unit Price | Slide Unit Price | Self Weight (kg) | ||||
| Model Number | Color | 1 ~ 9 Pieces | 10 ~ 19 Pieces | 20 ~ 99 Pieces | Model Number | Color | 1 ~ 9 Pieces | 10 ~ 19 Pieces | 20 ~ 99 Pieces | ||

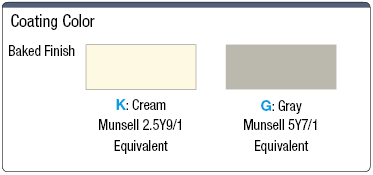

| BXT-SA80 | K (Cream) G (Gray) | 0.6 | BXGT-SA80 | K (Cream) G (Gray) | 0.6 | ||||||
| BXT-SA105 | 0.65 | BXGT-SA105 | 0.65 | ||||||||
| BXT-SA120 | 0.72 | BXGT-SA120 | 0.72 | ||||||||
| BXT-SA150 | 0.85 | BXGT-SA150 | 0.85 | ||||||||
| BXT-SA200 | 1.01 | BXGT-SA200 | 1.01 | ||||||||
Dedicated DIN Rail (35 mm Width)
| Dedicated DIN Rail Model Number | Boss Pitch (mm) | Corresponding Box Model Number | Standard Unit Price | Slide Unit Price | |
| 1 ~ 9 Pieces | 10 ~ 19 Pieces | 20 ~ 99 Pieces | |||
| BXDR-70 | 52 | BXT / BXGT-SA80 | |||
| BXDR-95 | 77 | BXT / BXGT-SA105 | |||
| BXDR-110 | 92 | BXT / BXGT-SA120 | |||
| BXDR-140 | 122 | BXT / BXGT-SA150 | |||
| BXDR-190 | 172 | BXT / BXGT-SA200 | |||
| BXDR-135 | 117 | Common for All Boxes | |||
More Information
| Part Number |
|---|
| BXGT-SA105-K |
| BXGT-SA120-K |
| BXGT-SA150-G |
| BXT-SA80-K |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Dimension width W (mm) | Features | Color |
|---|---|---|---|---|---|---|---|
MYR 225.89 | 1 Piece(s) | 2 Day(s) or more | 129.3 | No Side Hole, Dedicated DIN Rail End Stop | Cream (Munsell 2.5Y9/1) | ||
MYR 234.37 | 1 Piece(s) | 2 Day(s) or more | 144.3 | No Side Hole, Dedicated DIN Rail End Stop | Cream (Munsell 2.5Y9/1) | ||
MYR 263.25 | 1 Piece(s) | 2 Day(s) or more | 174.3 | No Long Side Hole, Dedicated DIN Rail End Stop | Gray (Approximately Munsell Value 5Y7/1) | ||
MYR 202.10 | 1 Piece(s) | 2 Day(s) or more | 104.3 | No Side Hole, Dedicated DIN Rail End Stop | Cream (Munsell 2.5Y9/1) |
Loading...

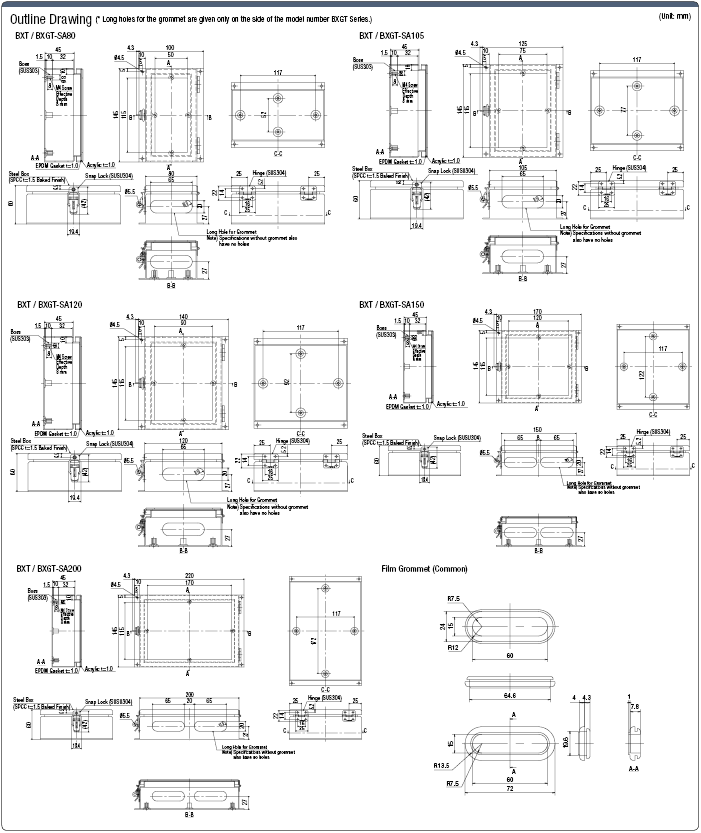

Drawing
Basic Information
| Dimension vertical H(mm) | 145 | Dimension depth D(mm) | 60 | Material | Iron |
|---|---|---|---|---|---|
| Protection function (environmentally resistant) | None | Intermediate plate | Without Board | Installation | Indoor |
| Locking type | Snap Key (Padlock Model with Mounting Hole) | Paint | Powder Paint | Main body plate thickness(mm) | 1.5 |
Specification/Dimensions
-
Dimension width W(mm)
-
Features
- No Long Side Hole, Dedicated DIN Rail End Stop
- No Side Hole, Dedicated DIN Rail End Stop
-
Color
-
CAD
- 2D
Days to Ship
-
- All
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
