Global Harness Series Mitsubishi Electric J4/3 for Power Supply
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
All-time-low price in series Sino-Japanese identical model sold
- Robot
- AC Servo
- Motor Power Supply
- Motor Brake
● A common model number has been adopted for Japan and China.
● We support local supply for customers who are expanding into global business.
● The least expensive product in this series.
The connector used is a Misumi original.
Part Number
Configured Part Number is shown.
Specifications
| Compatible Amplifier | Compatible Motor | Outline Image Drawing | Model Number | Cable Type | Specified Length (m) | |
| MR-J4-□ MR-J3-□ MR-JN□ (Power Supply) | HG-KR□ HG-MR□ HF-KP□ HF-MP□ HF-KN□ | (1) For Direct Connection | Load Side | SVPMZ-J3HF1 | D (For Low Speed Movable) | 2 5 10 |
| Anti-load Side | SVPMZ-J3HF1R | |||||
| MR-J4-□ MR-J3-□ MR-JN□ (Brake) | HG-KR□ HG-MR□ HF-KP□ HF-MP□ HF-KN□ | (2) For Direct Connection *1 | Load Side | SVPMZ-J3HF1B | ||
| Anti-load Side | SVPMZ-J3HF1BR | |||||
More Information

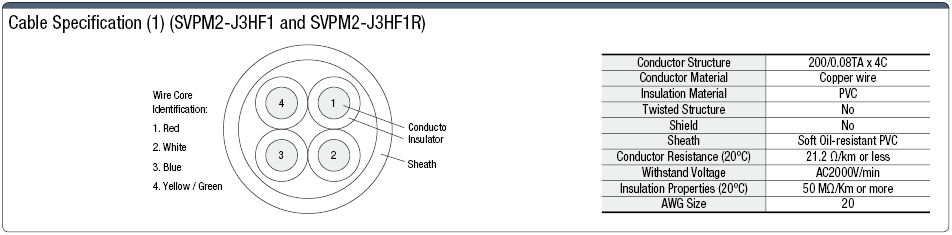

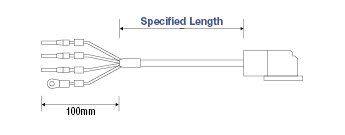

| Outline Image Drawing | (1) Amplifier Side Motor Side | (2) Amplifier Side Motor Side |
| Specified Length (m) | ~ 1 | 2 ~ 10 |
| Tolerance | +10mm | +50mm |
* The tolerance of the specified length is as described above.
Cable Flexibility Test Data
| Conditions | 1. Rotation Speed: 10 r/min 2. Average Measurement Distance: 1.8 m 3. Flexibility Radius: R = 125 mm |
| Remarks | Crawler cable curve tester used (LC859) Elastic cable material applied |
| Measurement Standard | Bend count of 5 million times or more when cable tore completely and stopped |
| Result | Tester stopped if cable was not torn by 5 million bend counts |
| Part Number |
|---|
| SVPMZ-J3HF1-D-10 |
| SVPMZ-J3HF1B-D-2 |
| SVPMZ-J3HF1BR-D-10 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Length (m) | Application 1 | Outer diameter image |
|---|---|---|---|---|---|---|---|
MYR 254.76 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | For Power Supply | Two Ends (Load Side) | |
MYR 99.82 | 1 Piece(s) | Available | 2 Day(s) or more | 2 | For Brake | Two Ends (Load Side) | |
MYR 169.84 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | For Brake | Both Ends (Anti-load Side) |
Loading...
Basic Information
| Supported equipment | Servo | Connector shape | Straight | Cable type | Low Speed Mobile |
|---|---|---|---|---|---|
| Shield | N/A | Supported amplifiers | MR-J4-□ MR-J3-□ MR-JN-□ | Supported motors | ( HG-KR□ / HG-MR□ / HF-KP□ / HF-MP□ / HF-KN□ ) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- Mitsubishi Electric Fixed-Length Harness for J3 Series
- Mitsubishi Electric Harness For J3W Series
- Global Harness Series Mitsubishi Electric J4/3 Encoder
- J4/J3/JN Series Mitsubishi Electric Cable For Motor Power
- J4/J3/JN Series Mitsubishi Electric Cable for Encoder
- Mitsubishi Electric J2S/J2 Series Motor Power Harness
- Yaskawa Electric ΣII (SGDM) Series Encoder Harness
- Yaskawa Electric ΣII (SGDH) Series Encoder Harness
Customers Who Viewed This Item Also Viewed
-
-
J4/J3/JN Series Mitsubishi Electric Cable For Motor PowerMISUMI_Test
Days to Ship : 3 Day(s) or more
-
-
-
-
MASWOLG-BP3KK CCC / UL / CE / PSE Compatible CableMISUMI_Test
Standard Price : MYR 65.32-
Days to Ship : 2 Day(s) or more
-
-
