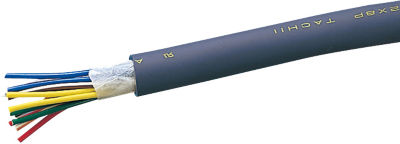

MASW-CSNT UL Compatible Cable

Click this image to zoom it.

Move the mouse over the image to zoom

Volume Discount

MISUMI_Test

UL Specification Mobile Signals Cable for Weak Current Circuit

VW-1
ULAWM
For Signal
Oil-Resistant
30 V

● The "SWING-MASTER" Class-C is one of Misumi's original MASTER cables.
● This product complies with UL standards.
● It uses composite stranded conductors, making it suitable for low-speed moving parts such as those in industrial robots.
● Excellent oil resistance as it uses oil-resistant PVC.

* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* Color and softness may vary slightly due to manufacturer changes.

The Electrical Appliance and Material Safety Law certificate has not been obtained.
* This product is compatible with "UL Traceability Program / Processed Wire." (c-UL is not compatible)

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

MASW-CSNT UL Compatible Cable:Related Image

* Before ordering, confirm that the following symbols in the order (if any) are correct: "( = single-byte bracket"; "1 = One"; "I = i"; "0 = zero"; "O = oh".

Model Number	Section Area (mm²)	Number of Cores	Total Length or Specified Length
MASW-CSNT	0.2	2	1 ~ 100 (Specify 1 m Increment)
		3
		4
		5
		6
		8
		10
		12
		16
		20
	0.3	2
		3
		4
		6
		8
		10
		12
		16
		20
	0.5	2
		3
		4
		5
		6
		8
		10
		12
		16
		20

Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
* For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
* 1 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
* Please note that when ordering 1000 m and 500 m, the order will be delivered as 100 m windings (we cannot accept orders for single cables).

More Information

Specifications

Model Number	Section Area (mm²)	Number of Cores	AWG Estimated Size ^*1	Twisted Structure	Number of Wire Cores	Finished Outer Diameter (mm)	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter (mm)	Sheath		Specification
Model Number	Section Area (mm²)	Number of Cores	AWG Estimated Size ^*1	Twisted Structure	Number of Wire Cores	Finished Outer Diameter (mm)	Approximate Mass kg/km	Allowable Current A (30°C)^*2	Conductor Resistance Ω/km (20 °C)	Insulation Properties MΩ / km (20°C)	Withstand Voltage V / min	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*3	Thickness (mm)	Material ^*3	Wire Core Outer Diameter (mm)	Thickness (mm)	Material ^*3	Specification
MASW-CSNT	0.2	2	24	Core / Layer Stranding	2	3.8	21	4.02	93	10	300	45/0.08	0.62	Tin	0.19	PVC	1.00	0.85	PVC	UL AWM
		3			3	3.95	24	3.49
		4			4	4.21	29	3.11
		5			5	4.5	32	2.84
		6			6	4.8	36	2.63
		8			8	5.41	46	2.3
		10			10	6.1	57	2.14										1.0
		12			12	6.25	64	1.82
		16			16	6.80	78	1.61
		20			20	7.41	94	1.61
	0.3	2	22		2	4.1	24	5.16	65			65/0.08	0.76		0.2		1.15	0.85
		3			3	4.27	29	4.47
		4			4	4.57	34	3.99
		6			6	5.25	46	3.37
		8			8	6.25	61	2.95										1.0
		10			10	6.7	71	2.75
		12			12	6.87	81	2.33
		16			16	7.51	101	2.06
		20			20	8.2	122	2.06
	0.5	2	20		2	4.6	30	7.17	39			108/0.08	0.96		0.22		1.40	0.85
		3			3	4.81	37	6.22
		4			4	5.17	43	5.55
		5			5	5.58	54	5.07
		6			6	6.3	66	4.68										1.0
		8			8	7.16	83	4.11
		10			10	7.7	97	3.82
		12			12	7.91	111	3.25
		16			16	8.68	141	2.87
		20			20	9.53	174	2.87

*1 Resizing is to be used only as a guide. Additionally, because this product has been designed with overseas standards,
the sizes shown have been replaced with an estimated section area calculated from the actual conductive structure.
For the comparison table of the AWG size and estimated section area (shown in mm²), refer to >>Click here.
*2 The value of allowable current is to be used only as a reference value and is not guaranteed.
*3 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other

Current Reduction Factor

Ambient Temperature (°C)	30	40	50	60	70
Current Reduction Factor	1	0.89	0.77	0.63	0.45

Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value 4.02 x 0.89 = 3.57 (A) when the ambient temperature is 40°C at 2-core 0.2 mm²

MASW-CSNT UL Compatible Cable:Related Image

Wire Core Identification Table

Color Identification	Wire Core No.	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
	Insulator Color	Black	White	Red	Green	Yellow	Brown	Blue	Gray	Orange	Pink	Light Blue	Purple	White	White	White	White	Black	Black	Black	Black
	Embedded Line Color	-	-	-	-	-	-	-	-	-	-	-	-	Black	Red	Green	Blue	White	Red	Green	Light Blue
