European-Model Spring Clamp Space-Saving Terminal Block Box
- Volume Discount
Box with European spring clamp terminal block for promoting use in Japan
- Space-saving
- Steel
- Fixed Size
● Comes with a European type spring clamp terminal block that is gaining traction in Japan
● 2 models selectable: "with holes" model that comes with round wiring holes punched on the side, and "no holes" model that allows user to punch the wiring holes arbitrarily.
● Compared to our previous screw-model terminal block box products, the size of 8-core model is equivalent to previous 4-core model, and the size of 12-core model is equivalent to previous 6-core model, offering excellent space-saving performance.
· The body does not have a waterproof and dustproof structure.
· Surface treatment is a baked finish, available in semi-gloss gray (5Y7/1) and matte black (N1).
Part Number
Configured Part Number is shown.
BOXT-A12EU-B
Specifications
◆ Order Example
| Type | - | Coating Color |
| BOXT-N8EU | - | G |
■ With Holes
| Part Number | Coating Color | Self Weight (g) | |
| Type | Pole Number | ||
| BOXT-A8EU | 8 | G (5Y7/1) or B (N1) | 609 |
| BOXT-A12EU | 12 | 674 | |
■ No Holes
| Part Number | Coating Color | Self Weight (g) | |
| Type | Pole Number | ||
| BOXT-N8EU | 8 | G (5Y7/1) or B (N1) | 590 |
| BOXT-N12EU | 12 | 665 | |
More Information
◆ Dimensional Table| Part Number | Size (Unit: mm) | Mounting Terminal Block | |||||
| Type | Pole Number | A | B | C | S | T | |
| BOXT-N BOXT-A | 8 | 125 | 105 | MAX | 105 | 51 | 261-108 |
| 12 | 140 | 105 | 120 | 65 | 261-112 | ||
◆ Outline Drawing
[BOXT-A8EU] * BOXT-N8EU is as per the outline drawing below without side round holes.

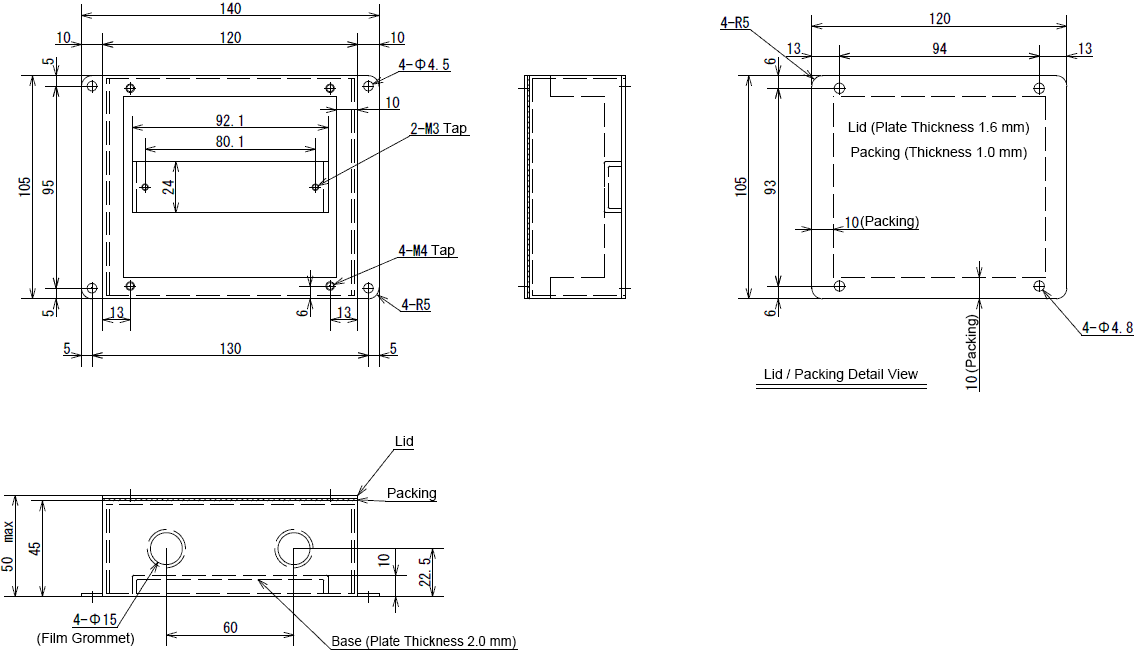

[BOXT-A12EU] * BOXT-N12EU is as per the outline drawing below without side round holes.
Basic Information
| Dimension width W(mm) | 140 | Dimension vertical H(mm) | 105 | Dimension depth D(mm) | 50 |
|---|---|---|---|---|---|
| Material | Iron | Protection function (environmentally resistant) | None | Intermediate plate | Without Board |
| Installation | Indoor | Locking type | 4-Point Screw-Fastened Model | Paint | Baked Finish |
| Main body plate thickness(mm) | 1.6 | Features | With Holes | Color | Black (Matte / Approximate Munsell Value N1) |
| Rated voltage(V) | UL: 300 / VDE: 660 | Rated current(A) | UL: 15 / VDE: 20 | Number of electrodes(P) | 12 |
| Clamp type | Band Clamp European Model |
Please check the type/dimensions/specifications of the part BOXT-A12EU-B in the European-Model Spring Clamp Space-Saving Terminal Block Box series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
