Misumi Original Touch Panel GX7 Series Supported Cable
● Optional extras available for connections with PLCs of well-known manufacturers
Wiring and Wire Color Page >>Click here
Part Number
Configured Part Number is shown.
GTP-GXK1D-WR-[0.2-15/0.1]
Specifications
| Specified Length (m) | ~ 0.9 | 1 ~ 4 | 4.1 ~ 50 |
| Tolerance | +20mm | +50mm | + 3% of Total Length |

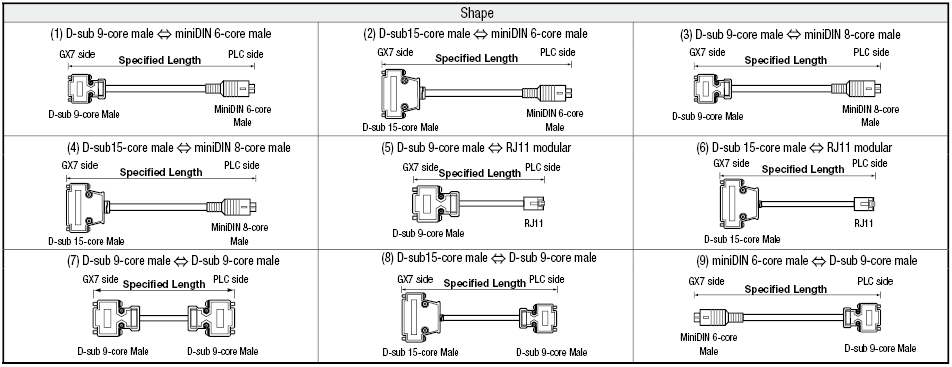

| PLC | Touch Panel GX7 | Interface | Shape | Model Number of Connection Cable between PLC and Touch Panel | Specified Length (m) | |||||
| Manufacturer / Series | Model Number | Connection Method | Connector Shape | Model Number | Connection Method | Connector Shape | ||||
| Mitsubishi Electric Corporation MELSEC-Q | Q□□ Q00J Q□□H Q□□UDH Q□□UDEH | CPU Direct Connection | Mini DIN 6-pin (female) | PLCP-GX7-04W-DC-R | COM2: 04W/05/ 07W/08 COM2 (RS-232C): 10/12/15 | Dsub 9-pin (female) UNC#4-40 | RS-232C | (1) | GTP-GXQ1D-WM-[Specified Length (m)] | 0.2 ~ 15 Can be specified by 0.1m increments |
| PLCP-GX7-10-DC-R | ||||||||||
| PLCP-GX7-12-DC-R | ||||||||||
| PLCP-GX7-15-DC-R | ||||||||||
| PLCP-GX7-05-DC-R | Dsub 15-pin (female) UNC#4-40 | (2) | GTP-GXQ2D-WM-[Specified Length (m)] | |||||||
| PLCP-GX7-07W-DC-R | ||||||||||
| PLCP-GX7-08-DC-R | ||||||||||
| Mitsubishi Electric Corporation MELSEC-FX | FX0 FX1/FX1S/FX1N FX2/FX2N/FX2NC FX3U/FX3UC/FX3G FX3GC/FX3S | CPU Direct Connection | Mini DIN 8-pin (female) | PLCP-GX7-04W-DC-R | COM2: 04W/05/ 07W/08 COM2 (RS-422): 10/12/15 | Dsub 9-pin (female) UNC#4-40 | RS-422 | (3) | GTP-GXF1D-WM-[Specified Length (m)] | 0.2 ~ 15 Can be specified by 0.1m increments |
| PLCP-GX7-10-DC-R | ||||||||||
| PLCP-GX7-12-DC-R | ||||||||||
| PLCP-GX7-15-DC-R | ||||||||||
| PLCP-GX7-05-DC-R | Dsub 15-pin (female) UNC#4-40 | (4) | GTP-GXF2D-WM-[Specified Length (m)] | |||||||
| PLCP-GX7-07W-DC-R | ||||||||||
| PLCP-GX7-08-DC-R | ||||||||||
| Keyence KV | KV Nano KV-700 KV-1000 KV-3000 | Programming Console Port Direct Connection | RJ-11 6-pin Modular Jack | PLCP-GX7-04W-DC-R | COM2: 04W/05/ 07W/08 COM2 (RS-232C): 10/12/15 | Dsub 9-pin (female) UNC#4-40 | RS-232C | (5) | GTP-GXK1D-WR-[Specified Length (m)] | 0.2 ~ 15 Can be specified by 0.1m increments |
| PLCP-GX7-10-DC-R | ||||||||||
| PLCP-GX7-12-DC-R | ||||||||||
| PLCP-GX7-15-DC-R | ||||||||||
| PLCP-GX7-05-DC-R | Dsub 15-pin (female) UNC#4-40 | (6) | GTP-GXK2D-WR-[Specified Length (m)] | |||||||
| PLCP-GX7-07W-DC-R | ||||||||||
| PLCP-GX7-08-DC-R | ||||||||||
| Omron SYSMAC CJ1 | CJ1G CJ1M | Built-in RS-232C Port | Dsub 9-pin (female) M2.6 | PLCP-GX7-04W-DC-R | COM2: 04W/05/ 07W/08 COM2 (RS-232C): 10/12/15 | Dsub 9-pin (female) UNC#4-40 | RS-232C | (7) | GTP-GXC1D-WM-[Specified Length (m)] | 0.2 ~ 15 Can be specified by 0.1m increments |
| PLCP-GX7-10-DC-R | ||||||||||
| PLCP-GX7-12-DC-R | ||||||||||
| PLCP-GX7-15-DC-R | ||||||||||
| PLCP-GX7-05-DC-R | Dsub 15-pin (female) UNC#4-40 | (8) | GTP-GXC2D-WM-[Specified Length (m)] | |||||||
| PLCP-GX7-07W-DC-R | ||||||||||
| PLCP-GX7-08-DC-R | ||||||||||
| All PLCP-GX7 Model Numbers | COM1 | Mini DIN 6-pin (female) | (9) | GTP-GXC3D-WR-[Specified Length (m)] | ||||||
| Omron SYSMAC CJ2 | CJ2H CJ2M | Built-in RS-232C Port | Dsub 9-pin (female) M2.6 | PLCP-GX7-04W-DC-R | COM2: 04W/05/ 07W/08 COM2 (RS-232C): 10/12/15 | Dsub 9-pin (female) UNC#4-40 | RS-232C | (7) | GTP-GXC1D-WM-[Specified Length (m)] | 0.2 ~ 15 Can be specified by 0.1m increments |
| PLCP-GX7-10-DC-R | ||||||||||
| PLCP-GX7-12-DC-R | ||||||||||
| PLCP-GX7-15-DC-R | ||||||||||
| PLCP-GX7-05-DC-R | Dsub 15-pin (female) UNC#4-40 | (8) | GTP-GXC2D-WM-[Specified Length (m)] | |||||||
| PLCP-GX7-07W-DC-R | ||||||||||
| PLCP-GX7-08-DC-R | ||||||||||
| All PLCP-GX7 Model Numbers | COM1 | Mini DIN 6-pin (female) | (9) | GTP-GXC3D-WR-[Specified Length (m)] | ||||||
| Omron SYSMAC CS1 | CS1G CS1H | Built-in RS-232C Port | Dsub 9-pin (female) M2.6 | PLCP-GX7-04W-DC-R | COM2: 04W/05/ 07W/08 COM2 (RS-232C): 10/12/15 | Dsub 9-pin (female) UNC#4-40 | RS-232C | (7) | GTP-GXC1D-WM-[Specified Length (m)] | 0.2 ~ 15 Can be specified by 0.1m increments |
| PLCP-GX7-10-DC-R | ||||||||||
| PLCP-GX7-12-DC-R | ||||||||||
| PLCP-GX7-15-DC-R | ||||||||||
| PLCP-GX7-05-DC-R | Dsub 15-pin (female) UNC#4-40 | (8) | GTP-GXC2D-WM-[Specified Length (m)] | |||||||
| PLCP-GX7-07W-DC-R | ||||||||||
| PLCP-GX7-08-DC-R | ||||||||||
| All PLCP-GX7 Model Numbers | COM1 | Mini DIN 6-pin (female) | (9) | GTP-GXC3D-WR-[Specified Length (m)] | ||||||
| Omron SYSMAC CP1 | CP1E CP1H CP1L | Built-in RS-232C port or CP1W-CIF01 (RS-232C × 1 port) | Dsub 9-pin (female) M2.6 | PLCP-GX7-04W-DC-R | COM2: 04W/05/ 07W/08 COM2 (RS-232C): 10/12/15 | Dsub 9-pin (female) UNC#4-40 | RS-232C | (7) | GTP-GXC1D-WM-[Specified Length (m)] | 0.2 ~ 15 Can be specified by 0.1m increments |
| PLCP-GX7-10-DC-R | ||||||||||
| PLCP-GX7-12-DC-R | ||||||||||
| PLCP-GX7-15-DC-R | ||||||||||
| PLCP-GX7-05-DC-R | Dsub 15-pin (female) UNC#4-40 | (8) | GTP-GXC2D-WM-[Specified Length (m)] | |||||||
| PLCP-GX7-07W-DC-R | ||||||||||
| PLCP-GX7-08-DC-R | ||||||||||
| All PLCP-GX7 Model Numbers | COM1 | Mini DIN 6-pin (female) | (9) | GTP-GXC3D-WR-[Specified Length (m)] | ||||||
More Information
| Specified Length (m) | ~ 0.9 | 1 ~ 4 | 4.1 ~ 50 |
| Tolerance | +20mm | +50mm | + 3% of Total Length |
Basic Information
| Supported touch panels | PLCP-GX7-04W-DC-R / PLCP-GX7-10-DC-R / PLCP-GX7-12-DC-R / PLCP-GX7-15-DC-R | Connection destination unit manufacturer | Keyence KV | Supported models | KV nano / KV-700 / KV-1000 / KV-3000 |
|---|---|---|---|---|---|
| Connection method | RS-232C | Connector 1 | Dsub 9pin Female UNC # 4-40 | Connector 2 | RJ-11 6pin Modular Plug |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
