PRC03 One-touch/Relay Connector Harness
Please use the extension of the straight connector harness
- Connection between Devices
- Solder
- Gold Plated
- One-Touch Lock
- MISUMI Original
● A cable with attached PRC03 connectors used widely as inter-device connections.

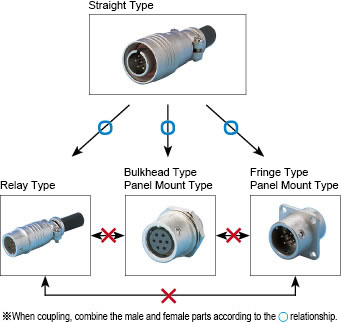

· Straight plugs cannot be mated with one another. Use a panel mount receptacle or a cable for relays when setting up a relay.
Wiring and Wire Color Page
>>Click here
Component Page
>>Click here
Part Number
Configured Part Number is shown.
PRC0332-JSJS-A-2-[0.2-50/0.1]
Specifications
| Specified Length (m) | ~ 0.9 | 1 ~ 4 | 4.1 ~ 50 |
| Tolerance | +20mm | +50mm | + 3% of Specified Length |
| Connector Type | Shape Specification Type | Outline Image Drawing (Unit: mm) | Cable Type | Number of Cores | Specified Length (m) |
| PRC0332 TAJIMI ELECTRONICS CO., LTD. | JP (Male for Relay) |  |  | 2 | 0.2 ~ 50 Can be specified by 0.1m increments |
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| JS (Female for Relay) |  | 2 | |||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| JPP (Male for Relay / Male Plug) |  | 2 | |||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| JSS (Female for Relay / Female Plug) |  | 2 | |||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| JPS (Male for Relay / Female Plug) |  | 2 | |||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| JSP Female for Relay / Male Plug) |  | 2 | |||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| JPJP (Male for Relay / Male for Relay) |  | 2 | |||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| JSJS (Female for Relay / Female for Relay) |  | 2 | |||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| Connector >>Click here | JPJS (Male for Relay / Female for Relay) |  | 2 | ||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| JPY (Male for Relay / Y Terminal) with Pin No. Insertion Mark Tube |  | 2 | |||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 |
| Connector Type | Shape Specification Type | Outline Image Drawing (Unit: mm) | Cable Type | Number of Cores | Specified Length (m) |
| PRC0332 TAJIMI ELECTRONICS CO., LTD. | JSY (Female for Relay / Y Terminal) With Pin No. Insertion Mark Tube |  | A D E | 2 | 0.2 ~ 50 Can be specified by 0.1m increments |
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| JPT (Loose Wires / Male for Relay) With Pin No. Insertion Mark Tube |  | 2 | |||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 | |||||
| Connector >>Click here | JST (Loose Wires / Female for Relay) With Pin No. Insertion Mark Tube |  | 2 | ||
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 7 |
More Information
Electrical Properties

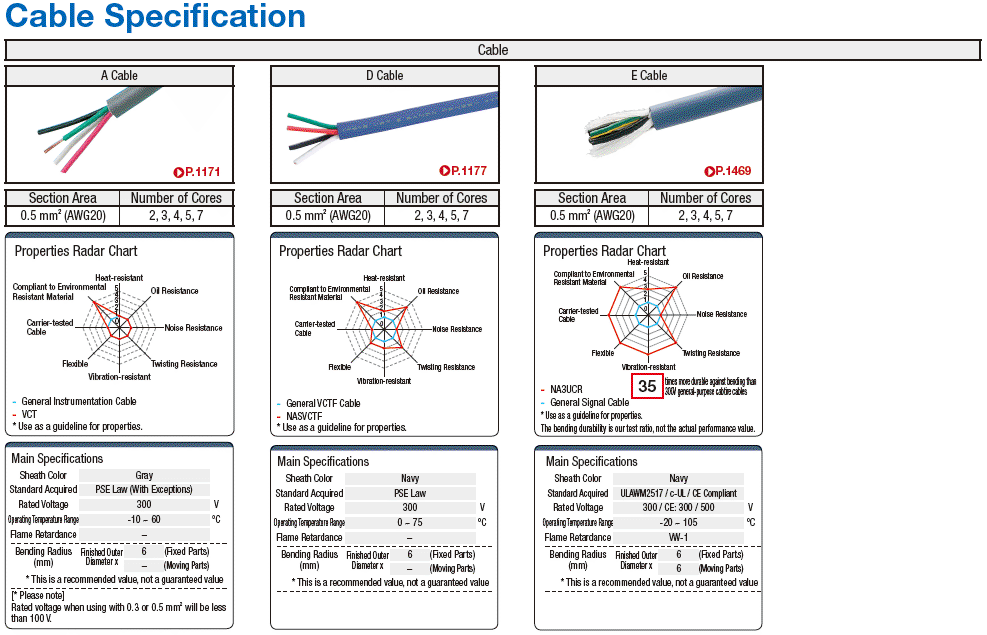

| Number of Cores | Connector | A Cable | D Cable | E Cable | ||||||||
| Rated Current (A or less) | Rated Voltage (V or less) | Section Area | Rated Voltage | Allowable Current A (30°C) | Section Area | Rated Voltage | Allowable Current A (30°C) | Section Area | Rated Voltage | Allowable Current A (30°C) | ||
| AC | DC | |||||||||||
| 2 | 10 | 600 | 840 | 0.5mm2 (AWG20) | 300V | 6 | 0.5mm2 (AWG20) | 300V | 4 | AWG20 (0.5mm2) | 300V | 9 |
| 3 | 360 | 504 | 5 | 3 | 7 | |||||||
| 4 | 5 | 400 | 560 | 4 | 6 | |||||||
| 5 | 350 | 490 | 2 | 5 | ||||||||
| 7 | 4 | |||||||||||
| Part Number |
|---|
| PRC0332-JSJS-A-2-[0.2-50/0.1] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Specified Length (m) |
|---|---|---|---|---|---|
- | 1 Piece(s) | 3 Day(s) or more | 0.2 ～ 50 |
Loading...

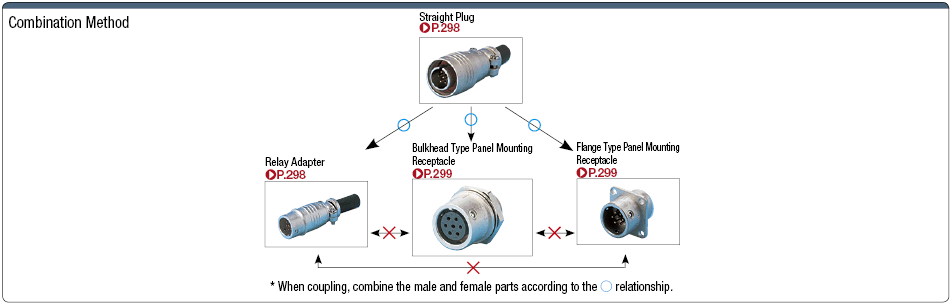

Combination Method
Compatible Wire Size
| Connector Core Number | Conductor Cross-sectional Area | AWG Size | Core Wire Outer Diameter |
|---|---|---|---|
| 2, 3 | 1.4 mm2 or less | AWG16 or less | φ1.6 or less |
| 4, 5, 7 | 0.5 mm2 or less | AWG20 or less | φ1.0 or less |
Material / Finish
| Item | Materials | Finish |
|---|---|---|
| Body Shell | Zinc Alloy | Satin Nickel |
| Contact | Copper Alloy | Nickel Base Gold Plating |
| Insulator | Synthetic Resin | — |
Electrical Properties
| Connector Core Number | Rated Voltage (V or less) | Rated Current (A or less) | Withstand Voltage (VAC or less for 1 minute) |
Insulation Resistance | Contact Resistance | |
|---|---|---|---|---|---|---|
| AC | DC | |||||
| 2 | 600 | 840 | 10 | 1800 | 1000 MΩ or more (500 VDC) |
5 mΩ or less (3 VDC, 1A) |
| 3 | 360 | 504 | 10 | 1000 | ||
| 4 | 400 | 560 | 5 | 1200 | ||
| 5, 7 | 350 | 490 | 5 | 1000 | ||
* Rating represents the current capacity per contact core.
Operating Temperature Range

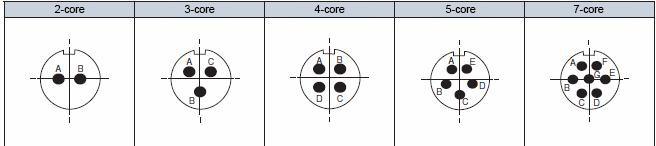

-25°C ~ +85°CContact Arrangement Diagram * View from the female (socket) connector coupling surface.
Basic Information
| Connector type | PRC03 | Connector manufacturer | Tajimi Electronics | CN1 | Female relay straight |
|---|---|---|---|---|---|
| CN2 | Female relay straight | Number Of Cores | 2 | Cable rated voltage(V) | 300 |
| Cable shape | Circular | Shield | N/A | Cable standard (UL/CSA) | N/A |
| Cable color | Gray | Conductor dimensions(AWG) | 20 | Environment resistant | N/A |
| Bend tolerant | N/A | Cable type | A |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
