NA3MF UL Standard

Click this image to zoom it.

Move the mouse over the image to zoom

Volume Discount

MISUMI_Test

300 V UL Mobile Signals Cable

VW-1
ULAWM
Heat-Resistant
Oil-Resistant
Strand Wire
Thinned Wire Conductor
Twisted Pair
300 V

·This product is compatible with "UL Traceability Program / Processed Wire". (c-UL is not compatible)
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
*Color and softness may vary slightly due to manufacturer changes.

Electrical Appliance and Material Safety Law certificate is not obtained.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

NA3MF UL Standard:Related Image
* AWG19 does not use a twisted pair cable.
* Before ordering, confirm that the following symbols in the order (if any) are correct: "( = single-byte bracket"; "1 = One"; "I = i"; "0 = zero"; "O = oh".

Model Number	AWG Size	Core Number / Pair Number ^{* 4} 1P = 2 Cores
NA3MF	25	1P
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
		12P
		18P
		25P
	23	1P
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
		12P
		18P
		25P
	21	1P
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
	19	2
		3
		4
		6

Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
* For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
* 1 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
* 2 Please note that when ordering 1000 m and 500 m, the order will be delivered as 100 m windings (we cannot accept orders for single cables).
* 3 Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering.
* 4 Uses a twisted pair cable except for AWG19 size.

More Information

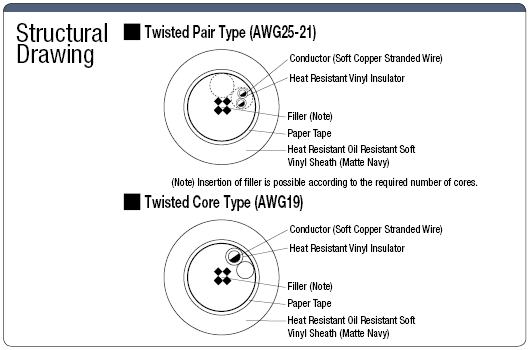

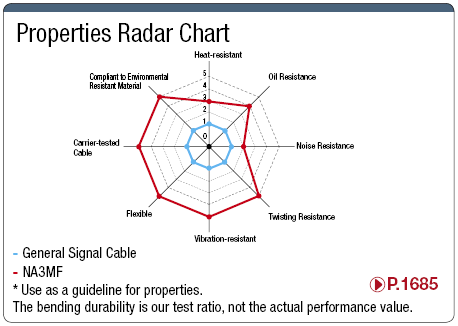

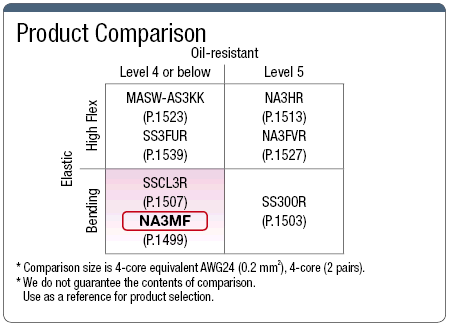

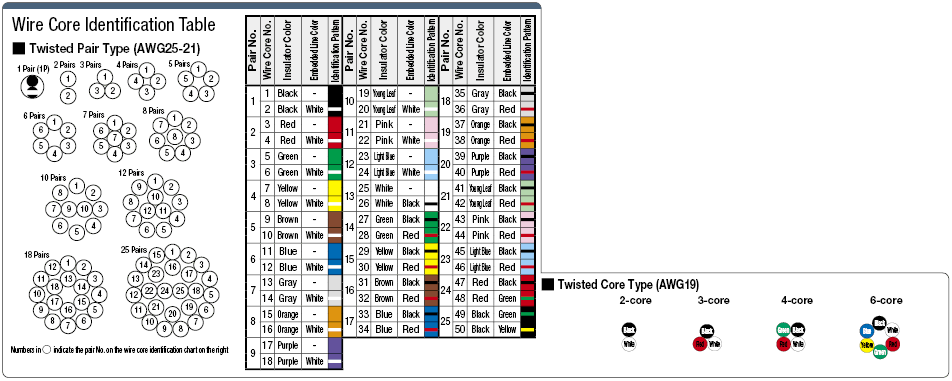

NA3MF UL Standard:Related Image

Specifications

Model Number	AWG Size	Core Number / Pair Number ^{* 1} 1P = 2 Cores	Estimated Section Area ( mm²)^*2	Twisted Structure (See Figure)	Number of Wire Cores	Finished Outer Diameter (mm) ^*6	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter Approx. (mm)	Sheath		Specification	Sample Provided ^*5
Model Number	AWG Size	Core Number / Pair Number ^{* 1} 1P = 2 Cores	Estimated Section Area ( mm²)^*2	Twisted Structure (See Figure)	Number of Wire Cores	Finished Outer Diameter (mm) ^*6	Approximate Mass kg/km	Allowable Current A (30°C) ^*3	Conductor Resistance Ω / km (20°C)	Insulation Properties MΩkm (20°C)	Withstand Voltage V / Min	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*4	Thickness (mm)	Material ^*4	Wire Core Outer Diameter Approx. (mm)	Thickness (mm)	Material ^*4	Specification	Sample Provided ^*5
NA3MF	25	1P	0.2	Twisted Pair	2	4.0	19.8	4.6	102 or less	10 or more	2000	40/0.08	0.58	Tin	0.23	PVC	1.04	0.90	PVC	ULAWM 2517	◎
		2P			4	5.2	33.5	3.7										0.90			◎
		3P			6	5.6	39.8	3.2										1.00			◎
		4P			8	6.0	47.3	2.7										1.00			◎
		5P			10	6.5	57.2	2.5										1.00			◎
		6P			12	6.9	65.2	2.3										1.00			◎
		7P			14	6.9	70.0	2.2										1.00			◎
		8P			16	7.4	79.7	2.1										1.00			◎
		10P			20	8.8	100.2	1.9										1.10			◎
		12P			24	9.2	116.9	1.8										1.20			◎
		18P			36	10.5	164.0	1.5										1.20			◎
		25P			50	12.4	218.4	1.3										1.30			◎
	23	1P	0.3		2	4.3	24.0	6.2	67.8 or less	10 or more	2000	60/0.08	0.72		0.24		1.20	0.90			◎
		2P			4	5.7	41.5	4.8										0.90			◎
		3P			6	6.1	49.1	4.1										1.00			◎
		4P			8	6.7	60.5	3.5										1.00			◎
		5P			10	7.2	74.3	3.3										1.00			◎
		6P			12	7.7	86.3	3.0										1.00			◎
		7P			14	7.7	90.3	2.9										1.00			◎
		8P			16	8.5	108.1	2.7										1.10			◎
		10P			20	9.8	130.1	2.5										1.10			◎
		12P			24	10.3	152.8	2.3										1.20			◎
		18P			36	11.9	216.9	2.0										1.30			◎
		25P			50	14.1	295.4	1.7										1.40			◎
	21	1P	0.5		2	4.7	31.6	8.5	40.7 or less	10 or more	2000	100/0.08	0.92		0.24		1.40	0.90			◎
		2P			4	6.5	56.3	6.7										0.90			◎
		3P			6	6.8	66.4	5.6										1.00			◎
		4P			8	7.4	83.6	4.9										1.00			◎
		5P			10	8.0	101.4	4.6										1.00			◎
		6P			12	8.9	123.1	4.2										1.10			◎
		7P			14	8.9	131.6	4.0										1.10			◎
		8P			16	9.5	148.1	3.8										1.10			◎
		10P			20	11.2	188.2	3.5										1.20			◎
	19	2	0.75	Core / Layer Strand	2	5.1	25.4	10.9	26.6 or less	10 or more	2000	150/0.08	1.13		0.24		1.60	0.90			◎
		3			3	5.5	28.4	9.6										1.00			◎
		4			4	6.0	33.3	8.7										1.00			◎
		6			6	6.9	44.6	7.4										1.00			◎

*1 Please note that when the indicated Core / Pair is 1P (1PS), the number of wire cores will be "x 2-core".
*2 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*3 The value of allowable current is to be used only as a reference value and is not guaranteed.
*4 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other
*5 For the outer diameter size of cables, wire sheath (coat), etc., refer to
"Finished Outer Diameter" in the table above.

Current Reduction Factor

Ambient Temperature (°C)	30	40	50	60	70	80	90	100
Current Reduction Factor	1.00	0.90	0.75	0.73	0.65	0.56	0.44	0.27

Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value 4.6 x 0.9 = 4.14 (A) when the ambient temperature for 2-core AWG25 is 40 °C

: 30; 45; 60

Part Number
NA3MF-19-2-49
NA3MF-19-2-69
NA3MF-19-2-95
NA3MF-19-3-24
NA3MF-19-3-28
NA3MF-19-3-61
NA3MF-19-3-72
NA3MF-19-3-73
NA3MF-19-3-79
NA3MF-19-3-90
NA3MF-19-4-68
NA3MF-19-4-95
NA3MF-19-6-43
NA3MF-19-6-56
NA3MF-21-2P-45
NA3MF-21-2P-78
NA3MF-21-2P-85
NA3MF-21-2P-92
NA3MF-21-3P-100
NA3MF-23-1P-1
NA3MF-23-1P-70
NA3MF-23-2P-58
NA3MF-23-3P-41
NA3MF-23-3P-76
NA3MF-23-4P-14
NA3MF-23-4P-40
NA3MF-23-4P-60
NA3MF-23-4P-77
NA3MF-23-5P-100
NA3MF-23-6P-81
NA3MF-23-8P-100
NA3MF-23-10P-34
NA3MF-23-10P-42
NA3MF-23-10P-52
NA3MF-23-10P-72
NA3MF-23-10P-79
NA3MF-23-12P-34
NA3MF-23-12P-47
NA3MF-23-12P-68
NA3MF-25-1P-100
NA3MF-25-3P-27
NA3MF-25-3P-68
NA3MF-25-3P-91
NA3MF-25-3P-94
NA3MF-25-4P-100
NA3MF-25-5P-40
NA3MF-25-5P-59
NA3MF-25-5P-69
NA3MF-25-5P-87
NA3MF-25-5P-93
NA3MF-25-6P-75

Standard Unit Price	Minimum order quantity	Volume Discount	Days to Ship	Overall Length (m)	Conductor Cross Section (mm²)	AWG size (AWG)	Number Of Cores (Core)	Logarithm	Finished outer diameter (mm)	Other properties	Other properties
MYR 1,016.14	1 Piece(s)		2 Day(s) or more	49	0.75	19	2	-	5.1	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,191.82	1 Piece(s)		2 Day(s) or more	69	0.75	19	2	-	5.1	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,640.92	1 Piece(s)		2 Day(s) or more	95	0.75	19	2	-	5.1	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 686.02	1 Piece(s)		2 Day(s) or more	24	0.75	19	3	-	5.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 800.36	1 Piece(s)		2 Day(s) or more	28	0.75	19	3	-	5.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,454.58	1 Piece(s)		2 Day(s) or more	61	0.75	19	3	-	5.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,716.89	1 Piece(s)		2 Day(s) or more	72	0.75	19	3	-	5.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,740.73	1 Piece(s)		2 Day(s) or more	73	0.75	19	3	-	5.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,883.81	1 Piece(s)		2 Day(s) or more	79	0.75	19	3	-	5.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 2,146.11	1 Piece(s)		2 Day(s) or more	90	0.75	19	3	-	5.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,950.65	1 Piece(s)		2 Day(s) or more	68	0.75	19	4	-	6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 2,725.18	1 Piece(s)		2 Day(s) or more	95	0.75	19	4	-	6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 2,061.68	1 Piece(s)		2 Day(s) or more	43	0.75	19	6	-	6.9	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 2,234.16	1 Piece(s)		2 Day(s) or more	56	0.75	19	6	-	6.9	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 708.49	1 Piece(s)		2 Day(s) or more	-	0.5	21	4	2	6.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,017.41	1 Piece(s)		2 Day(s) or more	-	0.5	21	4	2	6.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,108.72	1 Piece(s)		2 Day(s) or more	-	0.5	21	4	2	6.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,200.03	1 Piece(s)		2 Day(s) or more	-	0.5	21	4	2	6.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 2,167.66	1 Piece(s)	Available	2 Day(s) or more	100	0.5	21	6	3	6.8	Elastic, Vibration-resistant, Pliable, Flexible	-
MYR 27.38	1 Piece(s)		2 Day(s) or more	1	0.3	23	2	1	4.3	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 559.96	1 Piece(s)		2 Day(s) or more	70	0.3	23	2	1	4.3	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 806.78	1 Piece(s)		2 Day(s) or more	58	0.3	23	4	2	5.7	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,050.78	1 Piece(s)		2 Day(s) or more	41	0.3	23	6	3	6.1	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,622.53	1 Piece(s)		2 Day(s) or more	76	0.3	23	6	3	6.1	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 559.96	1 Piece(s)		2 Day(s) or more	14	0.3	23	8	4	6.6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,483.73	1 Piece(s)		2 Day(s) or more	40	0.3	23	8	4	6.6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,849.57	1 Piece(s)		2 Day(s) or more	60	0.3	23	8	4	6.6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 2,373.61	1 Piece(s)		2 Day(s) or more	77	0.3	23	8	4	6.6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 3,290.16	1 Piece(s)	Available	2 Day(s) or more	100	0.3	23	10	5	7.2	Elastic, Vibration-resistant, Pliable, Flexible	-
MYR 3,413.14	1 Piece(s)		2 Day(s) or more	81	0.3	23	12	6	8	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 4,129.33	1 Piece(s)	Available	2 Day(s) or more	100	0.3	23	16	8	8.8	Elastic, Vibration-resistant, Pliable, Flexible	-
MYR 2,744.09	1 Piece(s)		2 Day(s) or more	34	0.3	23	20	10	9.8	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 3,389.76	1 Piece(s)		2 Day(s) or more	42	0.3	23	20	10	9.8	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 3,494.72	1 Piece(s)		2 Day(s) or more	52	0.3	23	20	10	9.8	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 4,838.84	1 Piece(s)		2 Day(s) or more	72	0.3	23	20	10	9.8	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 5,309.29	1 Piece(s)		2 Day(s) or more	79	0.3	23	20	10	9.8	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 3,468.22	1 Piece(s)		2 Day(s) or more	34	0.3	23	24	12	10.3	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 4,794.31	1 Piece(s)		2 Day(s) or more	47	0.3	23	24	12	10.3	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 5,772.29	1 Piece(s)		2 Day(s) or more	68	0.3	23	24	12	10.3	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 576.53	1 Piece(s)	Available	2 Day(s) or more	100	0.2	25	2	1	4.1	Elastic, Vibration-resistant, Pliable, Flexible	-
MYR 561.29	1 Piece(s)		2 Day(s) or more	27	0.2	25	6	3	5.6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,178.02	1 Piece(s)		2 Day(s) or more	68	0.2	25	6	3	5.6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,576.46	1 Piece(s)		2 Day(s) or more	91	0.2	25	6	3	5.6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,628.43	1 Piece(s)		2 Day(s) or more	94	0.2	25	6	3	5.6	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,993.28	1 Piece(s)	Available	2 Day(s) or more	100	0.2	25	8	4	6	Elastic, Vibration-resistant, Pliable, Flexible	-
MYR 1,565.25	1 Piece(s)		2 Day(s) or more	40	0.2	25	10	5	6.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 1,923.96	1 Piece(s)		2 Day(s) or more	59	0.2	25	10	5	6.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 2,250.05	1 Piece(s)		2 Day(s) or more	69	0.2	25	10	5	6.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 2,837.02	1 Piece(s)		2 Day(s) or more	87	0.2	25	10	5	6.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 3,032.68	1 Piece(s)		2 Day(s) or more	93	0.2	25	10	5	6.5	-	Elastic, Vibration-resistant, Pliable, Flexible
MYR 2,671.17	1 Piece(s)		2 Day(s) or more	75	0.2	25	12	6	6.9	-	Elastic, Vibration-resistant, Pliable, Flexible

Basic Information

Rated Voltage	300V	Shield	None	Properties	Oil resistance
Representative Standard	UL	Sheath (outer coating) color	Navy color	Sheath (outer coating) material	PVC
Insulation body materials	PVC	Power supply/signal	For signals

Configure

51 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Overall Length(m)
1

14

24

27

28

34

40

41

42

43

47

49

52

56

58

59

60

61

68

69

70

72

73

75

76

77

79

81

87

90

91

93

94

95

100
Clear
Conductor Cross Section(mm²)
0.2

0.3

0.5

0.75
Clear
AWG size(AWG)
19

21

23

25
Clear
Number Of Cores(Core)
2

3

4

6

8

10

12

16

20

24
Clear
Logarithm
1

2

3

4

5

6

8

10

12
Clear
Finished outer diameter(mm)
4.1

4.3

5.1

5.5

5.6

5.7

6

6.1

6.5

6.6

6.8

6.9

7.2

8

8.8

9.8

10.3
Clear

Days to Ship

All

2 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Additional Products in this Category

Customers Who Viewed This Item Also Viewed

NAMFSB 150 V UL Standard with Shield
MISUMI_Test

Days to Ship : 2 Day(s) or more
SS300R, UL-Standard, Small-Diameter
MISUMI_Test

Standard Price : MYR 25.98-

Days to Ship : 2 Day(s) or more
NA3MFSB UL Standard with Shield
MISUMI_Test

Standard Price : MYR 195.45-

Days to Ship : 2 Day(s) or more
NAMF 150 V UL Standard
MISUMI_Test

Days to Ship : 2 Day(s) or more
NA3FVR Highly Flexible UL Standard
MISUMI_Test

Days to Ship : 2 Day(s) or more
NA3FVRSB Highly Flexible UL Standard with Shield
MISUMI_Test

Days to Ship : 2 Day(s) or more
NA20276R 30 V UL Standard
MISUMI_Test

Days to Ship : 1 Day(s) or more
NARVCTF PSE Supported
MISUMI_Test

Days to Ship : 2 Day(s) or more
SS300RSB, UL-Standard, Small-Diameter Shield
MISUMI_Test

Days to Ship : 2 Day(s) or more
NA3UCR Highly Flexible UL / CE Supported
MISUMI_Test

Days to Ship : 2 Day(s) or more
MRCSB 30V UL/CSA Listed Shielded Signal Cable for Flexing Applications
HANSHIN ELECTRIC WIRE & CABLE

Standard Price : MYR 4,320.92

Days to Ship : 2 Day(s) or more
VCTF23NX UL/PSE Supported
MISUMI_Test

Standard Price : MYR 26.49-

Days to Ship : 2 Day(s) or more

back next

Tech Support

Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations): Tel：(60) 3 7960 8499 / FAX：(60) 3 7960 7499; 9:00am - 6:00pm (Monday - Friday)
9:00am - 1:00pm (Saturday); Technical Inquiry

Top of the page

Payment Method

Credit Card
Bank Transfer

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm

Tel: (60) 3 7890 6399

Inquiry

All Categories

Categories

Search by Application

Brands

Message from MISUMI

My Favorites

Settings

How can we improve?

NA3MF UL Standard

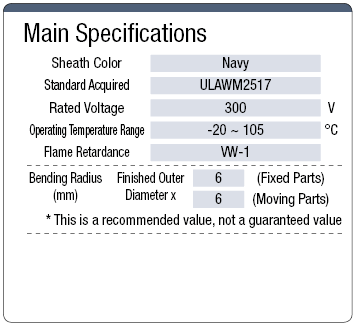

Specifications

More Information

Basic Information

Configure

Specification/Dimensions

Overall Length(m)

Conductor Cross Section(mm²)

AWG size(AWG)

Number Of Cores(Core)

Logarithm

Finished outer diameter(mm)

Days to Ship

Specify Alterations

Additional Products in this Category

Customers Who Viewed This Item Also Viewed

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm

All Categories

Categories

Search by Application

Brands

Message from MISUMI

My Favorites

Settings

How can we improve?

NA3MF UL Standard

Specifications

More Information

Basic Information

Configure

Specification/Dimensions

Overall Length(m)

Conductor Cross Section(mm2)

AWG size(AWG)

Number Of Cores(Core)

Logarithm

Finished outer diameter(mm)

Days to Ship

Specify Alterations

Additional Products in this Category

Customers Who Viewed This Item Also Viewed

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm

Conductor Cross Section(mm²)
