UL2464TA UL-AWM / Listed Standard
300 V UL-AWM / Listed Support for Signal
- c-UL
- VW-1
- FT-1
- ULAWM
- ULLISTED
- Oil-Resistant
- Strand Wire
- 300 V
● UL listed product.
· This product is compatible with "UL Traceability Program / Processed Wire". (c-UL is not compatible)
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* All unit prices are per meter.
Unit Price Calculation Method
[Formula: Last digits of model number (m) x unit price per meter]
Electrical Appliance and Material Safety Law certificate is not obtained.

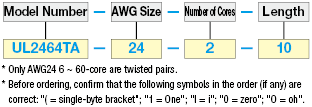

Part Number
Configured Part Number is shown.
Specifications
| Model Number | AWG Size | Core Number / Pair Number * 2 1P = 2 Cores |
| UL2464TA | 24 | 2 |
| 3 | ||
| 4 | ||
| 6 (3P) | ||
| 8 (4P) | ||
| 10 (5P) | ||
| 12 (6P) | ||
| 16 (8P) | ||
| 20 (10P) | ||
| 24 (12P) | ||
| 30 (15P) | ||
| 36 (18P) | ||
| 60 (30P) | ||
| 22 | 2 | |
| 3 | ||
| 4 | ||
| 6 | ||
| 10 | ||
| 12 | ||
| 20 | ||
| 30 | ||
| 20 | 2 | |
| 3 | ||
| 4 | ||
| 6 | ||
| 8 | ||
| 10 | ||
| 12 | ||
| 16 | ||
| 20 | ||
| 24 | ||
| 30 | ||
| 18 | 2 | |
| 3 | ||
| 4 | ||
| 6 | ||
| 10 | ||
| 12 | ||
| 16 | 2 | |
| 3 | ||
| 4 |
Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
* For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
*1 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
*2 Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering.
More Information
Specifications
| Model Number | AWG Size *1 | Core Number / Pair Number * 1 1P = 2 Cores | Estimated Section Area *2 (mm2) | Twisted Structure (See Figure) | Number of Wire Cores | Finished Outer Diameter (mm) | Approximate Mass kg/km | Electrical Properties | Conductor | Insulation | Wire Core Outer Diameter Approx. (mm) | Sheath | Specification | Sample Provided* 5 | |||||||
| Allowable Current A (30°C)* 3 | Conductor Resistance Ω / km (20°C) | Insulation Properties MΩkm (20°C) | Withstand Voltage V / Min | Structure Strands / mm | Outer Diameter Approx. (mm) | Plating *4 | Thickness (mm) | Material *4 | Thickness (mm) | Material *4 | |||||||||||
| UL2464TA | 24 | 2 | 0.2 | > C Twisted Core | 2 | 4.2 | 20 | 6.3 | 97.5 | 10 | 2000 | 7/0.2 | 0.61 | Tin | 0.27 | PVC | 1.15 | 0.9 | PVC | ULAWM2464 c-UL CMX | — |
| 3 | 3 | 4.4 | 23 | 5.3 | — | ||||||||||||||||
| 4 | 4 | 4.7 | 28 | 4.7 | — | ||||||||||||||||
| 6 (3P) | > P Twisted Pair | 6 | 5.8 | 33 | 3.3 | — | |||||||||||||||
| 8 (4P) | 8 | 6.3 | 38 | 3.0 | — | ||||||||||||||||
| 10 (5P) | 10 | 6.8 | 44 | 2.8 | — | ||||||||||||||||
| 12 (6P) | 12 | 7.3 | 50 | 2.6 | — | ||||||||||||||||
| 16 (8P) | 16 | 8.5 | 60 | 2.4 | — | ||||||||||||||||
| 20 (10P) | 20 | 8.5 | 70 | 2.2 | — | ||||||||||||||||
| 24 (12P) | 24 | 9.4 | 85 | 2.1 | — | ||||||||||||||||
| 30 (15P) | 30 | 10.4 | 100 | 1.9 | — | ||||||||||||||||
| 36 (18P) | 36 | 10.9 | 110 | 1.8 | — | ||||||||||||||||
| 60 (30P) | 60 | 13.5 | 180 | 1.5 | — | ||||||||||||||||
| 22 | 2 | 0.3 | > C Twisted Core | 2 | 5.5 | 30 | 4.5 | 57.5 | 10 | 2000 | 17/0.16 | 0.76 | 0.46 | 1.68 | 1.0 | — | |||||
| 3 | 3 | 5.7 | 40 | 3.9 | — | ||||||||||||||||
| 4 | 4 | 6.2 | 40 | 3.4 | — | ||||||||||||||||
| 6 | 6 | 7.1 | 60 | 2.9 | — | ||||||||||||||||
| 10 | 10 | 8.8 | 90 | 2.4 | — | ||||||||||||||||
| 12 | 12 | 9.1 | 100 | 2.0 | — | ||||||||||||||||
| 20 | 20 | 11.0 | 160 | 1.8 | — | ||||||||||||||||
| 30 | 30 | 12.9 | 220 | 1.5 | — | ||||||||||||||||
| 20 | 2 | 0.5 | > A Twisted Core | 2 | 5.8 | 40 | 6.0 | 36.2 | 10 | 2000 | 21/0.18 | 0.95 | 0.46 | 1.87 | 1.0 | — | |||||
| 3 | 3 | 6.1 | 50 | 5.2 | — | ||||||||||||||||
| 4 | 4 | 6.6 | 50 | 4.6 | — | ||||||||||||||||
| 6 | > C Twisted Core | 6 | 7.7 | 80 | 3.9 | — | |||||||||||||||
| 8 | 8 | 8.9 | 100 | 3.4 | — | ||||||||||||||||
| 10 | 10 | 9.6 | 120 | 3.2 | — | ||||||||||||||||
| 12 | 12 | 9.9 | 130 | 2.7 | — | ||||||||||||||||
| 16 | 16 | 10.9 | 170 | 2.4 | — | ||||||||||||||||
| 20 | 20 | 12.0 | 210 | 2.4 | — | ||||||||||||||||
| 24 | 24 | 13.3 | 250 | 2.0 | — | ||||||||||||||||
| 30 | 30 | 14.1 | 290 | 2.0 | — | ||||||||||||||||
| 18 | 2 | 0.75 | > A Twisted Core | 2 | 6.4 | 50 | 10.5 | 22.8 | 10 | 2000 | 35/0.18 | 1.2 | 0.46 | 2.1 | 1.0 | — | |||||
| 3 | 3 | 6.7 | 60 | 9.1 | — | ||||||||||||||||
| 4 | 4 | 7.2 | 70 | 8.1 | — | ||||||||||||||||
| 6 | > N Twisted Core | 6 | 8.5 | 100 | 6.8 | — | |||||||||||||||
| 10 | 10 | 10.6 | 160 | 5.6 | — | ||||||||||||||||
| 12 | 12 | 11.0 | 190 | 4.7 | — | ||||||||||||||||
| 16 | 2 | 1.25 | > A Twisted Core | 2 | 7.0 | 60 | 12.7 | 14.3 | 10 | 2000 | 26/0.26 | 1.5 | 0.46 | 2.5 | 1.0 | — | |||||
| 3 | 3 | 7.4 | 80 | 11.0 | — | ||||||||||||||||
| 4 | 4 | 8.0 | 100 | 9.8 | — | ||||||||||||||||
*1 Please note that when the indicated Core / Pair is 1P (1PS), the number of wire cores will be "x 2-core".
*2 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*3 The value of allowable current is to be used only as a reference value and is not guaranteed.
*4 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other
Current Reduction Factor
| Ambient Temperature (°C) | 30 | 40 | 50 | 60 | 70 |
| Current Reduction Factor | 1.00 | 0.89 | 0.77 | 0.63 | 0.45 |
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value for AWG24 2-core when the ambient temperature is 40°C: 3.7 x 0.89 = 3.293 (A)
Wire Core Identification Table
| C | Refer to >> Click here |
| P | Refer to >> Click here |
| A | Refer to >> Click here |
| N | Refer to >> Click here |
| Part Number |
|---|
| UL2464TA-18-10-74 |
| UL2464TA-22-2-43 |
| UL2464TA-22-3-54 |
| UL2464TA-22-10-66 |
| UL2464TA-22-12-14 |
| UL2464TA-22-12-34 |
| UL2464TA-24-3-7 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Overall Length (m) | Conductor Cross Section (mm2) | AWG size (AWG) | Number Of Cores (Core) | Finished outer diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|
MYR 3,519.10 | 1 Piece(s) | 2 Day(s) or more | 74 | 0.75 | 18 | 10 | 10.6 | ||
MYR 520.02 | 1 Piece(s) | 2 Day(s) or more | 43 | 0.3 | 22 | 2 | 5.5 | ||
MYR 651.17 | 1 Piece(s) | 2 Day(s) or more | 54 | 0.3 | 22 | 3 | 5.7 | ||
MYR 2,538.95 | 1 Piece(s) | 2 Day(s) or more | 66 | 0.3 | 22 | 10 | 8.8 | ||
MYR 638.62 | 1 Piece(s) | 2 Day(s) or more | 14 | 0.3 | 22 | 12 | 9.1 | ||
MYR 1,526.93 | 1 Piece(s) | 2 Day(s) or more | 34 | 0.3 | 22 | 12 | 9.1 | ||
MYR 119.48 | 1 Piece(s) | 2 Day(s) or more | 7 | 0.2 | 24 | 3 | 4.4 |
Loading...

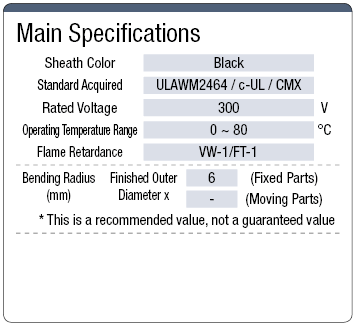

Basic Information
| Rated Voltage | 300V | Shield | None | Properties | Oil resistance |
|---|---|---|---|---|---|
| Representative Standard | UL / CSA(c-UL) | Sheath (outer coating) color | Black | Sheath (outer coating) material | PVC |
| Insulation body materials | PVC |
Specification/Dimensions
-
Overall Length(m)
-
Conductor Cross Section(mm2)
-
AWG size(AWG)
-
Number Of Cores(Core)
-
Finished outer diameter(mm)
Days to Ship
-
- All
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- MAST-UL2517: UL2517-compatible UL-Standard Wire
- NAKVVSB 100 V or less with Shield
- 300 V Shielded Cable for Signals
- Compensating Lead Wire - Thermocouple K Type - KX-1-G-NVVR-SA Series - New Color Type
- H05Z-K 90°C
- ÖLFLEX® CLASSIC 110 CH
- ÖLFLEX® CLASSIC FD 810 CY
- ÖLFLEX® ROBOT 900 DP
Customers Who Viewed This Item Also Viewed
-
UL2464TASB UL-AWM / Listed Standard With ShieldMISUMI_Test
Standard Price : MYR 554.76-
Days to Ship : 2 Day(s) or more
-
MAST-UL2464SB: UL2464-compatible UL-Standard Shielded WireMISUMI_Test
Standard Price : MYR 18.21-
Days to Ship : 2 Day(s) or more
-
-
MVVS 100 V or Less with Shield
MISUMI_Test
Standard Price : MYR 90.44-
Days to Ship : 2 Day(s) or more
-
MAST-UL2464: UL2464-compatible UL-Standard WireMISUMI_Test
Standard Price : MYR 29.30-
Days to Ship : 2 Day(s) or more
-
-
-
UL2464SSB UL Standard with ShieldMISUMI_Test
Standard Price : MYR 1,262.48
Days to Ship : 2 Day(s) or more
-
-
-
-
SSCL3 UL Listed (CL3) SupportMISUMI_Test
Standard Price : MYR 15.54-
Days to Ship : 2 Day(s) or more
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：(60) 3 7960 8499 / FAX：(60) 3 7960 7499
- 9:00am - 6:00pm (Monday - Friday)
9:00am - 1:00pm (Saturday) - Technical Inquiry
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
