OTSCVB 90 V With Shield

OTSCVB 90 V With Shield

Click this image to zoom it.

Move the mouse over the image to zoom

MISUMI_Test

MISUMI_Test

For Weak Current Circuit General-purpose Signals Cable with Shield

  • VW-1
  • ULAWM
  • Strand Wire
  • Single Shield
  • Twisted Pair
  • Less than 100 V

· This product is compatible with "UL Traceability Program / Processed Wire". (c-UL is not compatible)
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* Color and softness may vary slightly due to manufacturer changes.

Electrical Appliance and Material Safety Law certificate is not obtained.

PDF

Part Number

Configured Part Number is shown.

OTSCVB-0.5-6P-83

Specifications

OTSCVB 90 V With Shield:Related Image

Model NumberSection Area
(mm2)		Number of Pairs *3
1P = 2 Cores		Total Length
or
Specified Length
OTSCVB0.21P1
~
100
(Specify 1 m
Increment)
2P
3P
4P
5P
6P
7P
10P
12P
15P
18P
20P
25P
32P
50P
0.31P
2P
3P
4P
5P
6P
7P
10P
12P
15P
18P
20P
25P
32P
50P
0.51P
2P
3P
4P
5P
6P
7P
10P
12P
15P
18P
20P
25P
32P
50P

More Information


Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
* For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
*1 Stock products are indicated with T or A in the price column at right.
*2 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
*3 Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering. (Check the Specification Table for number of wire cores) 1P (1PS) is "x 2-core".

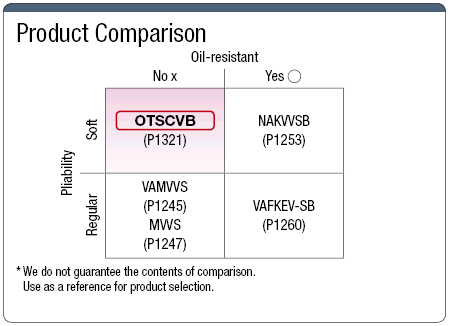

OTSCVB 90 V With Shield:Related Image

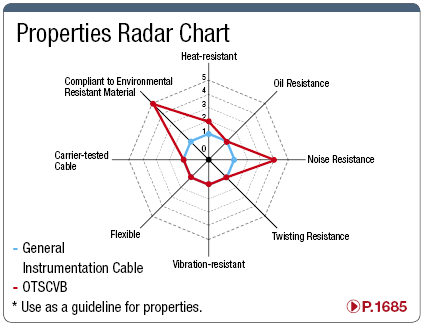

OTSCVB 90 V With Shield:Related Image

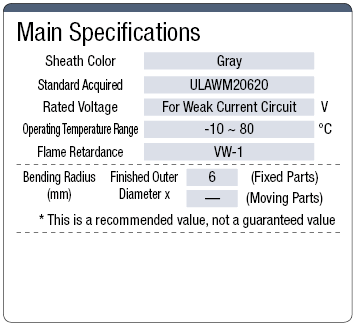

OTSCVB 90 V With Shield:Related Image

Specifications
Model NumberSection Area
(mm2)		Number of Pairs *1
1P = 2 Cores		AWG
Size
Reference *2		Twisted

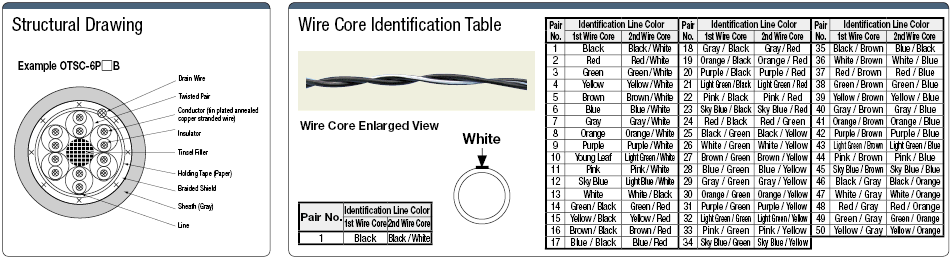

Structure
(See Figure)		Number of
Wire Cores		Finished
Outer Diameter
(mm)		Approximate
Mass
kg/km		Electrical PropertiesConductorInsulationWire Core
Outer Diameter
Approx. (mm)		SheathSpecification
Allowable Current
A (30°C)* 3		Conductor Resistance
Ω / km (20°C)		Insulation Properties
MΩkm (20°C)		Withstand Voltage
V / Min		Structure
Strands / mm		Outer Diameter
Approx. (mm)		Plating *4Thickness
(mm)		Material *4Thickness
(mm)		Material *4
OTSCVB0.21P25Twisted Pair24.4203.91131010007/0.180.54Tin0.23PVC10.85PVCN/A
2P45.5353.1
3P65.7452.7
4P86.1502.4
5P106.6552.2
6P127.3702.11.0
7P147.3801.9
10P208.91001.8
12P249.21201.71.1
15P309.91401.6
18P3610.91551.51.2
20P4011 1801.4
25P5012.52201.31.3
32P64142701.21.4
50P10016.54001.11.5
0.31P2225.1356.1521010007/0.260.780.31.380.85
2P46.5504.9
3P67.3704.31.0
4P88903.9
5P108.51053.6
6P129.61253.51.2
7P149.61403.2
10P2011.71952.91.3
12P2411.82102.8
15P3012.82452.6
18P36143202.41.4
20P4014.43202.3
25P5016.14202.21.5
32P6417.95152.0
50P10021.67201.71.7
0.51P2025.6407.935.61010007/0.320.960.31.60.85
2P46.9706.4
3P67.6955.41.0
4P88.21105.0
5P108.91354.7
6P129.91554.41.2
7P149.91804.2
10P2012.32353.8
12P2412.82903.61.3
15P3013.63303.3
18P36154003.11.4
20P4015.44303.0
25P5017.35302.81.5
32P6418.86502.61.6
50P10023.89702.21.8


*1 Please note that when the indicated Core / Pair is 1P (1PS), the number of wire cores will be "x 2-core".
*2 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*3 The value of allowable current is to be used only as a reference value and is not guaranteed.
*4 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other

Current Reduction Factor
Ambient Temperature (°C)3040506070
Current Reduction Factor10.880.750.580.33
Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value 3.9 x 0.88 = 3.43 (A) when the ambient temperature is 40°C at 1P 0.2mm2

OTSCVB 90 V With Shield:Related Image
30
45
60
  1. 1
Part Number
OTSCVB-0.5-6P-83
