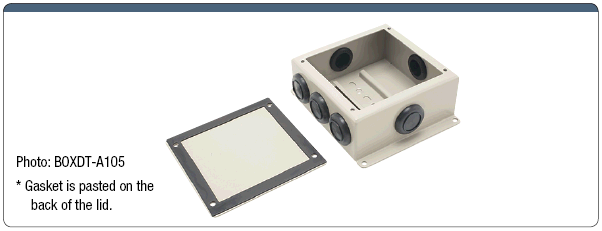

Steel Terminal Block Box, with Lid Model DIN Rail
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
Relay box with DIN rail model
- Space-saving
- Steel
- Fixed Size
● Relay box with screwed lid.
● The lid can be chosen from 2 models: "with window" and "without window."
● DIN standard 35 mm rail has been attached.
· The body does not have a waterproof and dustproof structure.
· Since the DIN rail has been welded, it cannot be removed.
· The surface treatment is a baked finish (paint color 5Y7/1).
Part Number
Configured Part Number is shown.
Specifications

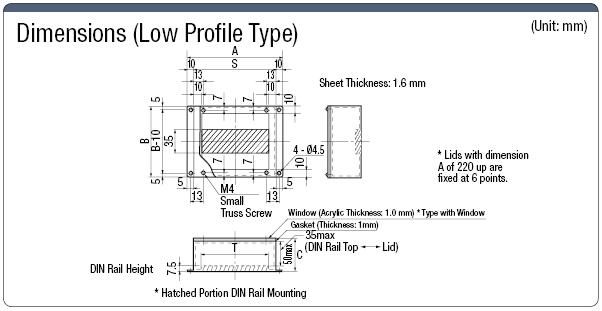

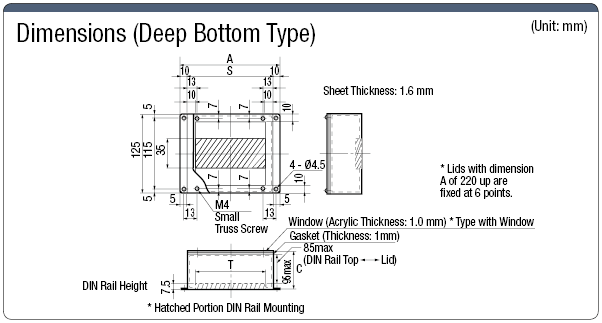

Dimensional Table
| Model Number | Size (Unit: mm) | |||||
| A | B | C | S | T | ||
| BOXDT-N BOXD-N BOXDT-A BOXD-A | 80 | 100 | 105 | 50MAX | 80 | 55 |
| 105 | 125 | 105 | 105 | 80 | ||
| 120 | 140 | 105 | 120 | 95 | ||
| 150 | 170 | 105 | 150 | 125 | ||
| 220 | 240 | 105 | 220 | 195 | ||
| 255 | 275 | 125 | 255 | 230 | ||
| 290 | 310 | 125 | 290 | 265 | ||
| 360 | 380 | 125 | 360 | 335 | ||
| BOXDF-N BOXDTF-N BOXDF-A BOXDTF-A | 120 | 140 | 125 | 95MAX | 120 | 95 |
| 220 | 240 | 125 | 220 | 195 | ||
* For BOXD-A, there is no product for 150, 220, 255, 290, 360.

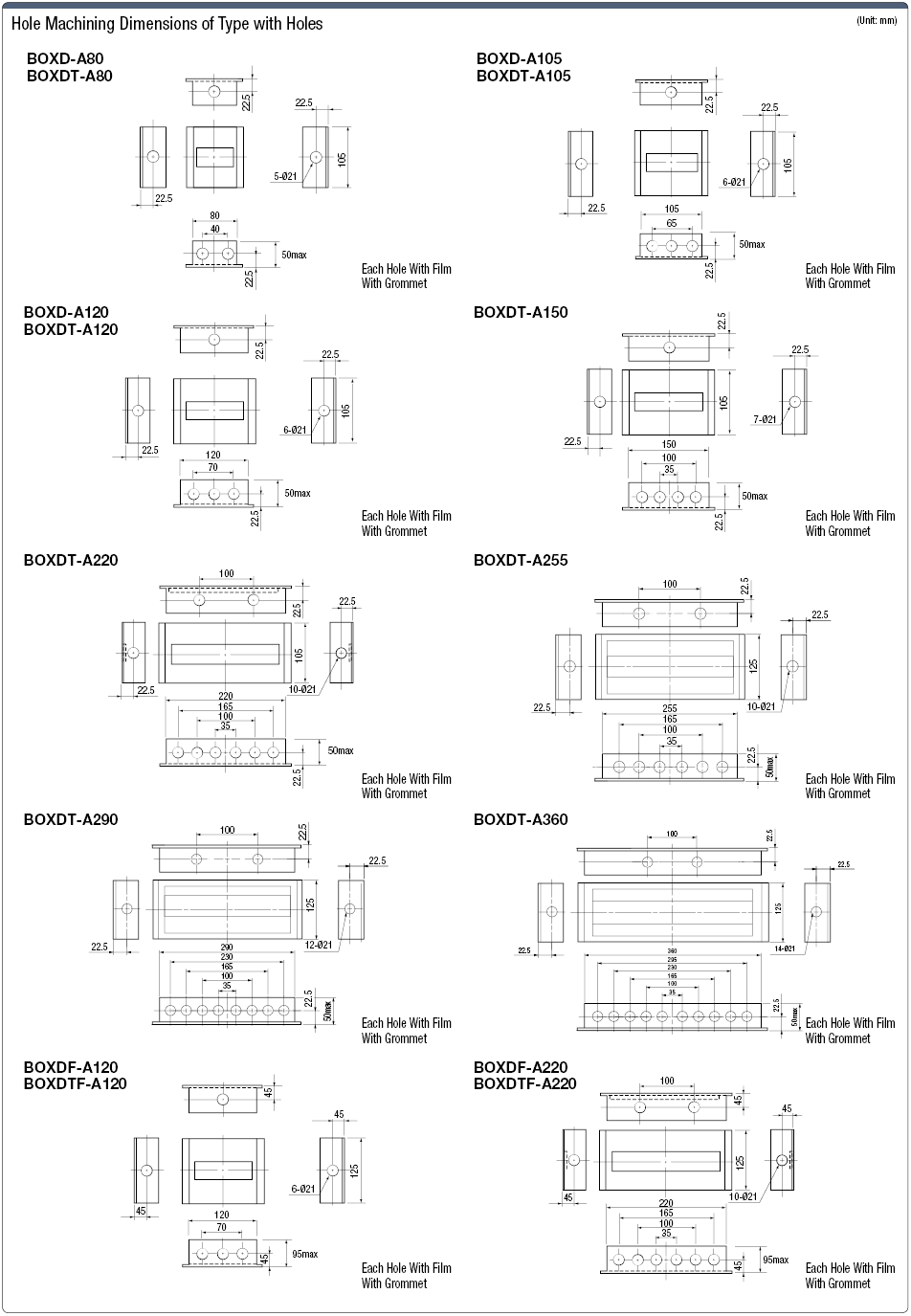

■ With Hole, Without Window
| Model Number | Cover Screw Quantity | Self Weight (g) | |
| BOXDT-A | 80 | 4 | 466 |
| BOXDT-A | 105 | 4 | 588 |
| BOXDT-A | 120 | 4 | 644 |
| BOXDT-A | 150 | 4 | 773 |
| BOXDT-A | 220 | 6 | 1070 |
| BOXDT-A | 255 | 6 | 1332 |
| BOXDT-A | 290 | 6 | 1498 |
| BOXDT-A | 360 | 6 | 1839 |
| BOXDTF-A | 120 | 4 | 985 |
| BOXDTF-A | 220 | 6 | 1560 |
■ With Hole, With Window
| Model Number | Cover Screw Quantity | Self Weight (g) | |
| BOXD-A | 80 | 4 | 430 |
| BOXD-A | 105 | 4 | 528 |
| BOXD-A | 120 | 4 | 573 |
| BOXDF-A | 120 | 4 | 896 |
| BOXDF-A | 220 | 6 | 1377 |
■ Without Hole, Without Window
| Model Number | Cover Screw Quantity | Self Weight (g) | |
| BOXDT-N | 80 | 4 | 484 |
| BOXDT-N | 105 | 4 | 592 |
| BOXDT-N | 120 | 4 | 654 |
| BOXDT-N | 150 | 4 | 774 |
| BOXDT-N | 220 | 6 | 1046 |
| BOXDT-N | 255 | 6 | 1353 |
| BOXDT-N | 290 | 6 | 1511 |
| BOXDT-N | 360 | 6 | 1852 |
| BOXDTF-N | 120 | 4 | 1012 |
| BOXDTF-N | 220 | 6 | 1574 |
■ Without Hole, With Window
| Model Number | Cover Screw Quantity | Self Weight (g) | |
| BOXD-N | 80 | 4 | 446 |
| BOXD-N | 105 | 4 | 531 |
| BOXD-N | 120 | 4 | 584 |
| BOXDF-N | 120 | 4 | 923 |
| BOXDF-N | 220 | 6 | 1394 |
More Information
| Part Number |
|---|
| BOXDF-A220 |
| BOXDF-N120 |
| BOXDT-A105 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Dimension width W (mm) | Dimension vertical H (mm) | Dimension depth D (mm) | Features |
|---|---|---|---|---|---|---|---|---|
MYR 630.09 | 1 Piece(s) | Available | 1 Day(s) | 240 | 105 | 95 | With Hole, With Window, Irremovable DIN Rail | |
MYR 449.37 | 1 Piece(s) | Available | 2 Day(s) or more | 140 | 125 | 95 | No hole, window included, irremovable DIN rail | |
MYR 267.50 | 1 Piece(s) | Available | 2 Day(s) or more | 125 | 105 | 50 | With Hole, Without Window, Irremovable DIN Rail |
Loading...
Drawing
Basic Information
| Material | Iron | Protection function (environmentally resistant) | None | Intermediate plate | Without Board |
|---|---|---|---|---|---|
| Installation | Indoor | Locking type | 4-Point Screw-Fastened Model | Paint | Baked Finish |
| Main body plate thickness(mm) | 1.6 | Color | Gray (Approximately Munsell Value 5Y7/1) |
Specification/Dimensions
-
Dimension width W(mm)
-
Dimension vertical H(mm)
-
Dimension depth D(mm)
-
Features
- No hole, window included, irremovable DIN rail
- With Hole, With Window, Irremovable DIN Rail
- With Hole, Without Window, Irremovable DIN Rail
-
CAD
- 2D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
