Aluminum Rack Case ER Type
- Volume Discount

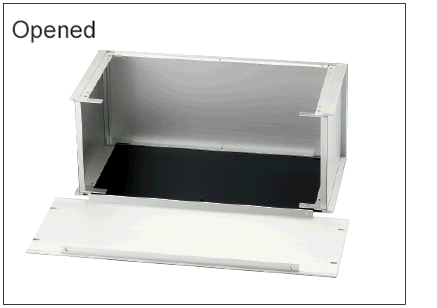

A rack case with a panel structure in which all surfaces are flat.
- Aluminum
- Fixed Size
- Hole Machining
- Web Box
A rack case with a panel structure in which all surfaces are flat.
● This rack case has a panel structure and is made from easily machined aluminum that complies with the EIA standard.
● Comes in two colors: silver (S) or black (B).
Part Number
Configured Part Number is shown.
ER133-20-S
Specification Table

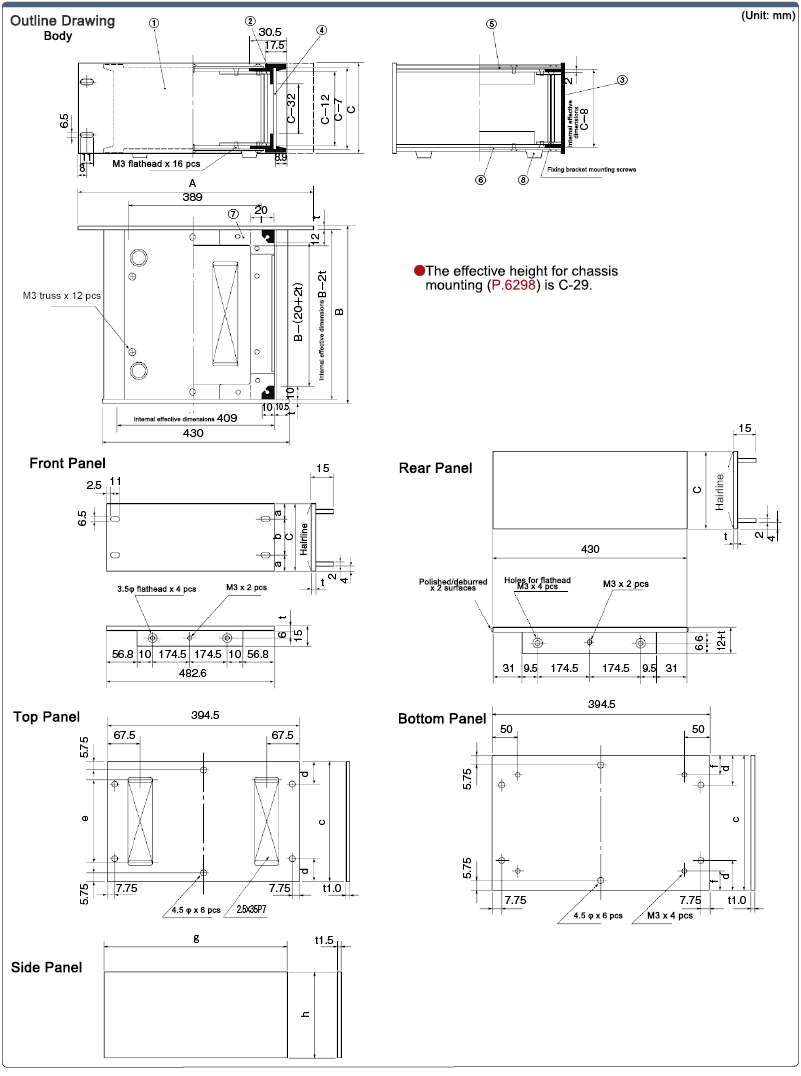

| Unit Size | Model | Color specifications | Size (unit: mm) | Dead Weight (kg) | |||||||||||
| A | B | C | t | a | b | c | d | e | f | g | h | ||||
| 2U | ER88-20 | S | 482.6 | 200 | 88 | 3 | 5.9 | 76.2 | 193.5 | 29.75 | 119 | 30 | 194 | 81 | 2.5 |
| B | |||||||||||||||
| ER88-32 | S | 482.6 | 320 | 88 | 3 | 5.9 | 76.2 | 313.5 | 44.75 | 245 | 40 | 314 | 81 | 3.4 | |
| B | |||||||||||||||
| ER88-43 | S | 482.6 | 430 | 88 | 3 | 5.9 | 76.2 | 423.5 | 59.75 | 329 | 50 | 424 | 81 | 4.2 | |
| B | |||||||||||||||
| 3U | ER133-20 | S | 482.6 | 200 | 132.5 | 3 | 37.7 | 57.1 | 193.5 | 29.75 | 119 | 30 | 194 | 125.5 | 2.9 |
| B | |||||||||||||||
| ER133-32 | S | 482.6 | 320 | 132.5 | 3 | 37.7 | 57.1 | 313.5 | 44.75 | 245 | 40 | 314 | 125.5 | 3.8 | |
| B | |||||||||||||||
| ER133-43 | S | 482.6 | 430 | 132.5 | 3 | 37.7 | 57.1 | 423.5 | 59.75 | 329 | 50 | 424 | 125.5 | 4.7 | |
Basic Specifications
| Number | Name | Number of Pieces | Material | Color/Surface Treatment |
| 1 | Front Panel | 1 | A6063S-T5 | HL Silver/Black Anodized Aluminum |
| 2 | Frame | 4 | A6063S-T5 | HL Silver/Black Anodized Aluminum |
| 3 | Rear Panel | 1 | A6063S-T5 | HL Silver/Black Anodized Aluminum |
| 4 | Side board | 2 | A1050P-H24 t1.5 | HL Silver/Black Anodized Aluminum |
| 5 | Top Plate | 1 | SPCC t1.0 | Black Leather-Tone Coating |
| 6 | Bottom Plate | 1 | SPCC t1.0 | Black Melamine Coating |
| 7 | Fixing Bracket | 4 | SPCC t2.0＋A6063S-T5 | Chromate Plating + Anodized Aluminum |
| 8 | Rubber Feet | 4 | Natural Rubber | Black |
| Color specifications | Front Panel | Rear Panel | Frame |
| S | Silver | Silver | Silver |
| B | Black | Black | Black |
| Color specifications | Side board | Top・Bottom Plate |
| S | Silver | Black |
| B | Black | Black |
Basic Information
| Dimension width W(mm) | 482.6 | Dimension vertical H(mm) | 132.5 | Dimension depth D(mm) | 200 |
|---|---|---|---|---|---|
| Material | Aluminum | Protection function (environmentally resistant) | None | Intermediate plate | Without Board |
| Installation | Indoor | Locking type | Screw-Fastened Model | Features | 3U, Top plate / bottom plate are made of iron |
| Color | Front And Rear Panel, Side Plate: Silver / Top / Bottom Plates: Black |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
