XAC series carbide ball end mill, 2-flute / short, long shank model
Move the mouse over the image to zoom
- Volume Discount
Long shank items are available at low prices
- TiAlN
- General Steel
- 2 Flutes
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| XAC-LS-BEM2S2 |
| XAC-LS-BEM2S3 |
| XAC-LS-BEM2S4 |
| XAC-LS-BEM2S5 |
| XAC-LS-BEM2S6 |
| XAC-LS-BEM2S8 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | R Size (mm) | Flute Length (ℓ) (mm) | Overall Length (L) (mm) | Shank Diameter (d) (mm) | Outer Diameter D (mm) |
|---|---|---|---|---|---|---|---|---|---|
MYR 191.57 | 1 Piece(s) | Available | 2 Day(s) or more | 2 | 8 | 100 | 4 | 4 | |
MYR 260.36 | 1 Piece(s) | Available | 2 Day(s) or more | 3 | 10 | 120 | 6 | 6 | |
MYR 338.32 | 1 Piece(s) | Available | 2 Day(s) or more | 4 | 14 | 140 | 8 | 8 | |
MYR 470.33 | 1 Piece(s) | Available | 2 Day(s) or more | 5 | 18 | 180 | 10 | 10 | |
MYR 650.70 | 1 Piece(s) | Available | 2 Day(s) or more | 6 | 22 | 200 | 12 | 12 | |
MYR 1,195.49 | 1 Piece(s) | Available | 2 Day(s) or more | 8 | 30 | 250 | 16 | 16 |
| Part Number |
|---|
Loading...

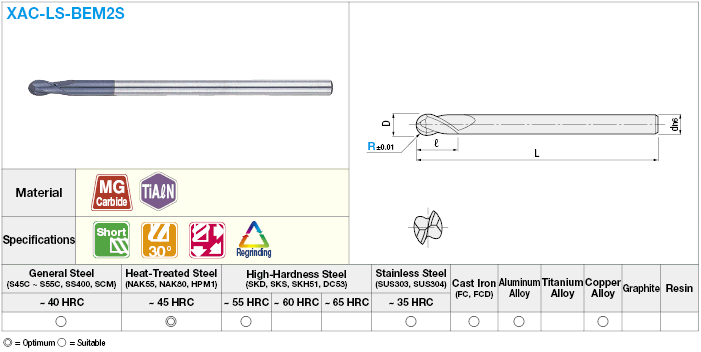

Specifications
| Model Number | Flute Length ℓ |
Outer Diameter D |
Overall Length L |
Shank Diameter d |
|
| Tip R |
|||||
| XAC-LS-BEM2S | 2 | 8 | 4 | 100 | 4 |
| 3 | 10 | 6 | 120 | 6 | |
| 4 | 14 | 8 | 140 | 8 | |
| 5 | 18 | 10 | 180 | 10 | |
| 6 | 22 | 12 | 200 | 12 | |
| 8 | 30 | 16 | 250 | 16 |
For Cutting Conditions, Refer to >>Click here.
More Information
● The high tool rigidity and excellent chipping discharge makes it ideal for high precision milling of 3-dimensional molds.
● Delivers a finish with a very good working surface roughness after machining.
● The long shank model is ideal for machining deep grooves.
Basic Information
| Model | Bore | Work Material | General Steel / Heat-Treated Steel / High-Hardness Steel ~ HRC55 / Stainless Steel / Cast Iron / Aluminum / Copper | Number of Flutes(sheet) | 2 |
|---|---|---|---|---|---|
| Coating | TiAlN | R Precision(μm) | ±0.01 | Processing Applications | Curved Surface / Side Surface / Carving / R-Groove |
| Inventory Classification | Stocked Product | Torsion Availability | Included |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
