TAK Clamp (Eccentric Washer Cam Clamp)
- Volume Discount
Easy clamping just by fastening bolts. For processing many small workpieces
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| TAKPC8 |
| TAKPC10 |
| TAKPC12 |
| TAKPS8 |
| TAKPS10 |
| TAKPS12 |
| TAKVC8 |
| TAKVC10 |
| TAKVC12 |
| TAKVS8 |
| TAKVS10 |
| TAKVS12 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | No. | Material | A (mm) | B (mm) | F (mm) | Applicable Bolt M | Clamp Displacement X (mm) | T (mm) | V (mm) | R (mm) | Q (mm) | Bolt Insertion Part (Ellipse) P (mm) | Bolt Insertion Part (Ellipse) P+X (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 69.00 | 1 Piece(s) | Available | 2 Day(s) or more | 8 | Brass (C3604) | 22 | 20.5 | - | M8 | 0.8 | 6 | 16 | R12 | 10.3 | 9 | 9.8 | |
MYR 77.18 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | Brass (C3604) | 26 | 24 | - | M10 | 1 | 8 | 20 | R14 | 12 | 10.6 | 11.6 | |
MYR 110.97 | 1 Piece(s) | Available | 2 Day(s) or more | 12 | Brass (C3604) | 30 | 28 | - | M12 | 1.2 | 10 | 24 | R16 | 14.2 | 14 | 15.2 | |
MYR 54.84 | 1 Piece(s) | Available | 2 Day(s) or more | 8 | S45C | 22 | 20.5 | - | M8 | 0.8 | 6 | 16 | R12 | 10.3 | 9 | 9.8 | |
MYR 59.74 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | S45C | 26 | 24 | - | M10 | 1 | 8 | 20 | R14 | 12 | 10.6 | 11.6 | |
MYR 81.54 | 1 Piece(s) | Available | 2 Day(s) or more | 12 | S45C | 30 | 28 | - | M12 | 1.2 | 10 | 24 | R16 | 14.2 | 14 | 15.2 | |
MYR 102.25 | 1 Piece(s) | Available | 2 Day(s) or more | 8 | Brass (C3604) | 25 | 30 | 19 | M8 | 0.8 | 6 | 16 | R5 | 10.3 | 9 | 9.8 | |
MYR 122.95 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | Brass (C3604) | 30 | 35 | 22 | M10 | 1 | 8 | 20 | R6 | 12 | 10.6 | 11.6 | |
MYR 200.33 | 1 Piece(s) | Available | 2 Day(s) or more | 12 | Brass (C3604) | 40 | 43 | 30 | M12 | 1.2 | 10 | 24 | R8 | 14.2 | 14 | 15.2 | |
MYR 79.91 | 1 Piece(s) | Available | 2 Day(s) or more | 8 | S45C | 25 | 30 | 19 | M8 | 0.8 | 6 | 16 | R5 | 10.3 | 9 | 9.8 | |
MYR 94.62 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | S45C | 30 | 35 | 22 | M10 | 1 | 8 | 20 | R6 | 12 | 10.6 | 11.6 | |
MYR 129.49 | 1 Piece(s) | Available | 2 Day(s) or more | 12 | S45C | 40 | 43 | 30 | M12 | 1.2 | 10 | 24 | R8 | 14.2 | 14 | 15.2 |
Loading...

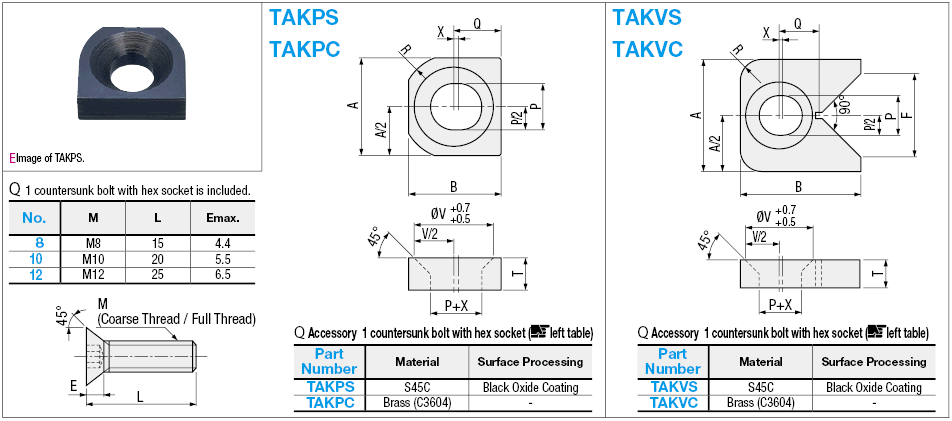

Specifications
| Part Number | Applicable Bolt M | Clamp Displacement X | A | B | F | T | V | R | Q | Bolt Insertion Part (Ellipse) | Recommended Screw Mounting Position | ||
| No. | |||||||||||||
| P | P+X | ||||||||||||
| TAKPS (S45C Type) TAKPC (Brass Type) | 8 | M8 | 0.8 | 22 | 20.5 | - | 6 | 16 | R12 | 10.3 | 9 | 9.8 | 9.7 ~ 9.8 |
| 10 | M10 | 1.0 | 26 | 24 | - | 8 | 20 | R14 | 12 | 10.6 | 11.6 | 11.4 ~ 11.5 | |
| 12 | M12 | 1.2 | 30 | 28 | - | 10 | 24 | R16 | 14.2 | 14 | 15.2 | 13.4 ~ 13.5 | |
| TAKVS (S45C Type) TAKVC (Brass Type) | 8 | M8 | 0.8 | 25 | 30 | 19 | 6 | 16 | R5 | 10.3 | 9 | 9.8 | - |
| 10 | M10 | 1.0 | 30 | 35 | 22 | 8 | 20 | R6 | 12 | 10.6 | 11.6 | - | |
| 12 | M12 | 1.2 | 40 | 43 | 30 | 10 | 24 | R8 | 14.2 | 14 | 15.2 | - | |
