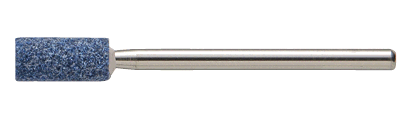

Grinding Stone with Shaft, KG Abrasive Particles
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
Now offering the standard-size hugely popular grind stone complete with a shaft in a convenient pack
Part Number
Configured Part Number is shown.
[Specifications]
● Name in Product No.: KG Abrasive Grain
● Bonding Agent: Vitrified
● Shaft Material: SUM23
| Part Number |
|---|
| MKGR10-13-3-40 |
| MKGR13-13-3-40 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Outer Diameter D (mm) | Maximum Rotation Speed (min-1) |
|---|---|---|---|---|---|---|
MYR 14.26 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | 35000 | |
MYR 14.26 | 1 Piece(s) | Available | 2 Day(s) or more | 13 | 26000 |
Loading...
Specifications
| Model Number | Grinding Wheel Outer Diameter (mm) | Thickness (T) (mm) | Shaft Diameter (mm) | Shaft Length (mm) | Particle Size (#) | Degree of Coupling | Maximum Rotation Speed (min-1) |
| MKGR6-13-3-40 | 6 | 13 | 3 | 40 | 60 | P | 42,000 |
| MKGR8-13-3-40 | 8 | 43,000 | |||||
| MKGR10-13-3-40 | 10 | 35,000 | |||||
| MKGR13-13-3-40 | 13 | 26,000 |
Basic Information
| Type | Grindstone | Particle Size(#) | 60 | Shaft Diameter d(mm) | 3 |
|---|---|---|---|---|---|
| Thickness T(mm) | 13 | Shaft Length(mm) | 40 | Product Number Name | KG Abrasive Grain |
| Grade | P |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
