Timing Pulley S8M Type
Easy specification of shaft hole type/diameter. MISUMI can machine the shaft hole for the pulley of the Mitsuboshi belt without drawings for delivery.
Japanese Only
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Belt Width Used (mm) (mm) | Number of Teeth (T) | Pulley Shape | Material | Outermost diameter (mm) | Keyway | Shaft Bore Dia. d (mm) | Shaft hole specifications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 271.93 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 18 | B | [Steel] Steel | 54 | - | 16 | N (New JIS keyway hole + tapping) | ||
MYR 277.37 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 18 | A | [Steel] Steel | 54 | - | 12 | N (New JIS keyway hole + tapping) | ||
MYR 277.37 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 18 | A | [Steel] Steel | 54 | - | 17 | N (New JIS keyway hole + tapping) | ||
MYR 373.60 | 1 Piece(s) | 9 Day(s) or more | - | 40 | 18 | B | [Steel] Steel | 54 | - | 20 | N (New JIS keyway hole + tapping) | ||
MYR 365.16 | 1 Piece(s) | 9 Day(s) or more | - | 40 | 18 | B | [Steel] Steel | 54 | - | 14 | P (round hole + tap) | ||
MYR 322.27 | 1 Piece(s) | 9 Day(s) or more | - | 26 | 19 | B | [Steel] Steel | 57 | - | 21 | N (New JIS keyway hole + tapping) | ||
MYR 340.41 | 1 Piece(s) | 9 Day(s) or more | - | 40 | 19 | A | [Steel] Steel | 57 | - | 16 | N (New JIS keyway hole + tapping) | ||
MYR 275.33 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 20 | B | [Steel] Steel | 60 | - | 22 | P (round hole + tap) | ||
MYR 285.65 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 20 | A | [Steel] Steel | 60 | - | 13 | N (New JIS keyway hole + tapping) | ||
MYR 311.17 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 20 | B | [Steel] Steel | 60 | - | 17 | P (round hole + tap) | ||
MYR 311.17 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 20 | B | [Steel] Steel | 60 | - | 18 | P (round hole + tap) | ||
MYR 332.34 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 20 | B | [Steel] Steel | 60 | - | 13 | P (round hole + tap) | ||
MYR 265.78 | 1 Piece(s) | 6 Day(s) or more | 10 | 40 | 20 | A | [Steel] Steel | 60 | - | - | NA | ||
MYR 334.14 | 1 Piece(s) | 9 Day(s) or more | - | 40 | 20 | A | [Steel] Steel | 60 | - | 16 | P (round hole + tap) | ||
MYR 227.26 | 1 Piece(s) | 9 Day(s) or more | - | 15 | 21 | A | [Steel] Steel | 62 | - | 12 | H (round hole) | ||
MYR 256.80 | 1 Piece(s) | 9 Day(s) or more | - | 15 | 21 | A | [Steel] Steel | 62 | - | 18 | N (New JIS keyway hole + tapping) | ||
MYR 258.51 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 21 | B | [Steel] Steel | 62 | - | 20 | H (round hole) | ||
MYR 262.74 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 21 | B | [Steel] Steel | 62 | - | 23 | H (round hole) | ||
MYR 290.15 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 21 | A | [Steel] Steel | 62 | - | 18 | H (round hole) | ||
MYR 294.37 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 21 | A | [Steel] Steel | 62 | - | 22 | H (round hole) | ||
MYR 311.26 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 21 | A | [Steel] Steel | 62 | - | 20 | P (round hole + tap) | ||
MYR 405.80 | 1 Piece(s) | 9 Day(s) or more | - | 40 | 21 | B | [Steel] Steel | 62 | - | 20 | N (New JIS keyway hole + tapping) | ||
MYR 228.51 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 22 | A | [Steel] Steel | 65 | - | 19 | H (round hole) | ||
MYR 253.83 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 22 | A | [Steel] Steel | 65 | - | 22 | P (round hole + tap) | ||
MYR 311.19 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 22 | B | [Steel] Steel | 65 | - | 21 | H (round hole) | ||
MYR 328.08 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 22 | B | [Steel] Steel | 65 | - | 16 | P (round hole + tap) | ||
MYR 295.63 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 22 | A | [Steel] Steel | 65 | - | 25 | H (round hole) | ||
MYR 320.94 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 22 | A | [Steel] Steel | 65 | - | 20 | N (New JIS keyway hole + tapping) | ||
MYR 312.50 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 22 | A | [Steel] Steel | 65 | - | 16 | P (round hole + tap) | ||
MYR 365.08 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 22 | B | [Steel] Steel | 65 | - | 23 | N (New JIS keyway hole + tapping) | ||
MYR 333.88 | 1 Piece(s) | 9 Day(s) or more | - | 40 | 22 | A | [Steel] Steel | 65 | - | 18 | H (round hole) | ||
MYR 263.82 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 24 | A | [Steel] Steel | 70 | - | 23 | P (round hole + tap) | ||
MYR 263.82 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 24 | A | [Steel] Steel | 70 | - | 25 | P (round hole + tap) | ||
MYR 305.93 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 24 | B | [Steel] Steel | 70 | - | 27 | N (New JIS keyway hole + tapping) | ||
MYR 247.63 | 1 Piece(s) | 6 Day(s) or more | - | 26 | 24 | A | [Steel] Steel | 70 | - | - | NA | ||
MYR 326.90 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 24 | B | [Steel] Steel | 70 | - | 25 | H (round hole) | ||
MYR 343.77 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 24 | B | [Steel] Steel | 70 | - | 15 | P (round hole + tap) | ||
MYR 309.94 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 24 | A | [Steel] Steel | 70 | - | 27 | H (round hole) | ||
MYR 309.94 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 24 | A | [Steel] Steel | 70 | - | 28 | H (round hole) | ||
MYR 326.81 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 24 | A | [Steel] Steel | 70 | - | 15 | P (round hole + tap) | ||
MYR 347.66 | 1 Piece(s) | 5 Day(s) or more | - | 30 | 24 | B | [Steel] Steel | 70 | - | 19 | H (round hole) | ||
MYR 305.50 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 25 | B | [Steel] Steel | 72 | - | 27 | P (round hole + tap) | ||
MYR 314.79 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 25 | A | [Steel] Steel | 72 | - | 23 | P (round hole + tap) | ||
MYR 354.05 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 25 | B | [Steel] Steel | 72 | - | 23 | P (round hole + tap) | ||
MYR 318.13 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 25 | A | [Steel] Steel | 72 | - | 25 | H (round hole) | ||
MYR 335.01 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 25 | A | [Steel] Steel | 72 | - | 20 | P (round hole + tap) | ||
MYR 356.29 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 25 | B | [Steel] Steel | 72 | - | 20 | H (round hole) | ||
MYR 360.50 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 25 | B | [Steel] Steel | 72 | - | 24 | H (round hole) | ||
MYR 360.50 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 25 | B | [Steel] Steel | 72 | - | 27 | H (round hole) | ||
MYR 360.88 | 1 Piece(s) | 5 Day(s) or more | - | 40 | 25 | A | [Steel] Steel | 72 | - | 19 | H (round hole) | ||
MYR 381.98 | 1 Piece(s) | 5 Day(s) or more | - | 40 | 25 | A | [Steel] Steel | 72 | - | 17 | P (round hole + tap) | ||
MYR 431.53 | 1 Piece(s) | 5 Day(s) or more | - | 40 | 25 | B | [Steel] Steel | 72 | - | 16 | P (round hole + tap) | ||
MYR 252.25 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 26 | A | [Steel] Steel | 75 | - | 17 | H (round hole) | ||
MYR 286.01 | 1 Piece(s) | 5 Day(s) or more | - | 15 | 26 | A | [Steel] Steel | 75 | - | 28 | N (New JIS keyway hole + tapping) | ||
MYR 324.54 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 26 | A | [Steel] Steel | 75 | - | 18 | N (New JIS keyway hole + tapping) | ||
MYR 341.21 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 26 | B | [Steel] Steel | 75 | - | 23 | H (round hole) | ||
MYR 366.53 | 1 Piece(s) | 5 Day(s) or more | - | 26 | 26 | B | [Steel] Steel | 75 | - | 18 | N (New JIS keyway hole + tapping) | ||
MYR 370.34 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 26 | B | [Steel] Steel | 75 | - | 25 | H (round hole) | ||
MYR 399.89 | 1 Piece(s) | 9 Day(s) or more | - | 30 | 26 | B | [Steel] Steel | 75 | - | 26 | N (New JIS keyway hole + tapping) | ||
MYR 398.11 | 1 Piece(s) | 5 Day(s) or more | - | 40 | 26 | A | [Steel] Steel | 75 | - | 21 | P (round hole + tap) |
Loading...
Basic Information
| Type | Timing pulley | Belt Series | S8M | Surface Treatment | No |
|---|---|---|---|---|---|
| Pulley/Idler | Pulley (No Bearing) | Belt Shape Type | Round tooth profile super torque |

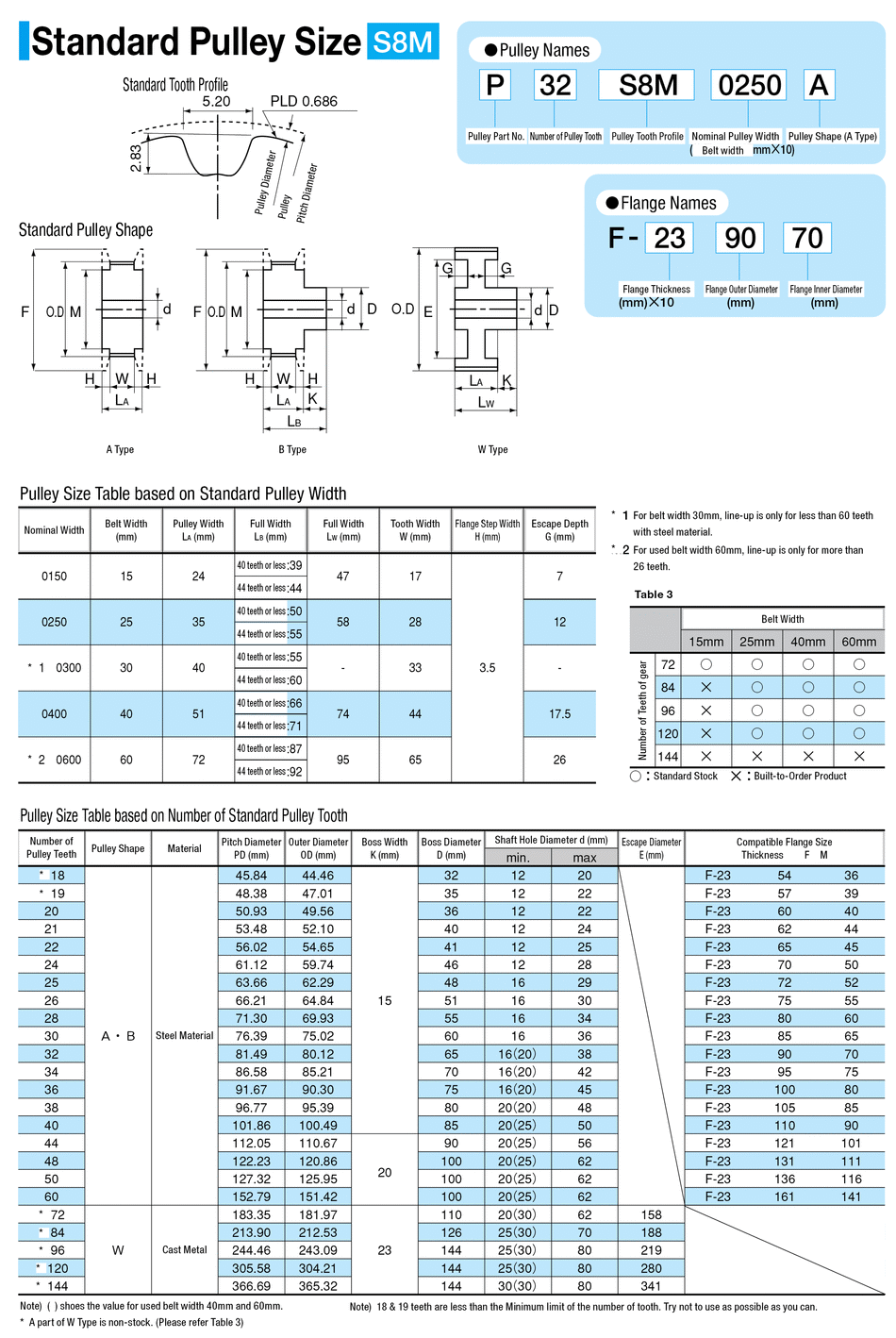

Specification/Dimensions
-
Belt Width Used (mm)(mm)
-
Number of Teeth(T)
-
Pulley Shape
- A
- B
- W
-
Material
- Steel
- Steel
-
Keyway
- H (round hole)
- N (new JIS keywayed bore + tap)
- P (round hole + tap)
-
Shaft Bore Dia. d(mm)
-
Shaft hole specifications
- H (round hole)
- N (New JIS keyway hole + tapping)
- NA
- P (round hole + tap)
-
type
- S8M
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 5 Day(s) or Less
- 6 Day(s) or Less
- 9 Day(s) or Less
- 10 Day(s) or Less
- 16 Day(s) or Less
- 29 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
