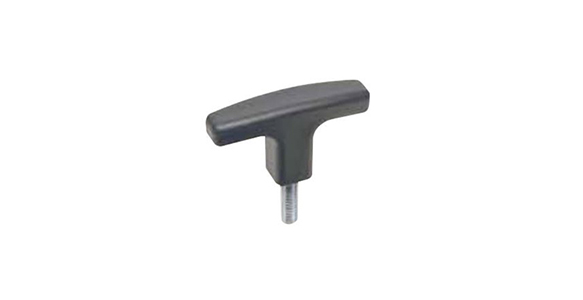

Square Shaped T Handle (TH-N)
Screw size is M6 ~ M12 with a resin knob with abundantly high mechanical strength. Operating temperature -30 degrees to 130 degrees.
Part Number
Configured Part Number is shown.
Square Type T Handle Outline Drawing & Dimensions
Tapped
Stud

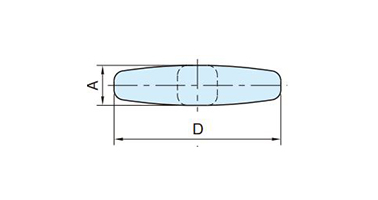

Common outline drawing

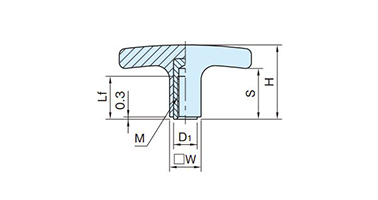

Tapped outline drawing

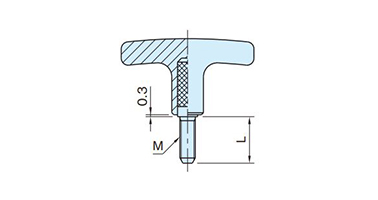

Stud outline drawing
Tapped
| Part Number | D | M | H | A | W | S | Lf | D1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| TH40N | 40 | M 6 × 1 | 30 | 13 | 13 | 20 | 16 | 9 | 16 |
| TH55N | 55 | 33 | 15 | 15 | 22 | 18 | 10 | 27 | |
| TH55NA | M 8 × 1.25 | 20 | 28 | ||||||
| TH67N | 67 | 37 | 16.5 | 16.5 | 25 | 11 | 36 | ||
| TH80NA | 80 | 41 | 20 | 20 | 26 | 25 | 13 | 50 | |
| TH80N | M10 × 1.5 | 56 | |||||||
| TH95N | 94 | M12 × 1.75 | 46 | 21 | 21 | 28.5 | 18 | 66 |
Stud
| Part Number | D | M | H | A | W | S | L | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| TH40N×20 | 40 | M6 × 1 | 30 | 13 | 13 | 20 | 20 | 17 |
| TH55NA×20 | 55 | M8 × 1.25 | 33 | 15 | 15 | 22 | 28 | |
| TH67N×25 | 67 | 37 | 16.5 | 16.5 | 25 | 25 | 38 | |
| TH80N×30 | 80 | M10 × 1.5 | 41 | 20 | 20 | 26 | 30 | 58 |
| TH95N×30 | 94 | M12 × 1.75 | 46 | 21 | 21 | 28.5 | 68 |
Technical Data
Operating temperature -30 to +130℃

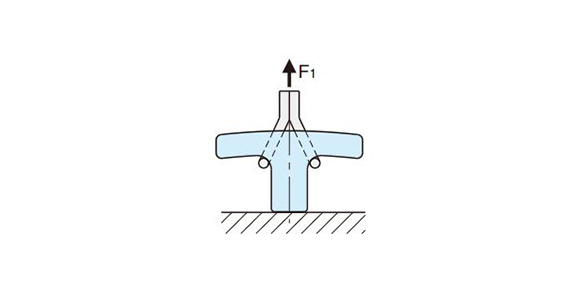

Mechanical strength
Mechanical strength fig.1
| Size | Vertical Direction (F1) Tensile Stress | |
|---|---|---|
| TH-N | 40 | 2.5 kN |
| 55 | 3.3 kN | |
| 67 | 4.5 kN | |
| 80 | 7 kN | |
| 95 | 8 kN | |
Mechanical strength fig.2
Notes
The material properties of the resin may degrade when used under high temperatures or high humidity conditions.
| Part Number |
|---|
| TH40N |
| TH55NA |
| TH80N |
| TH80NX30 |
| TH95NX30 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Mounting Section Type | Mounting Section Diameter (mm) and/or Diameter | Mounting Section Length L (mm) | Male Tip Machining | Female Thread, Round hole processing | Mounting Section Material | Mounting Section Surface Treatment | Main Body Outer Diameter D (Ø) | Main Body Height H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 45.58 | 1 Piece(s) | 1 Day(s) | 10 | Female Thread | M6 | 16 | - | Blind Hole | Brass | No | 40 | 30 | ||
MYR 52.45 | 1 Piece(s) | 1 Day(s) | 10 | Female Thread | M8 | 20 | - | Blind Hole | Brass | No | 55 | 33 | ||
MYR 81.69 | 1 Piece(s) | 1 Day(s) | 10 | Female Thread | M10 | 25 | - | Blind Hole | Brass | No | 80 | 41 | ||
MYR 55.76 | 1 Piece(s) | 1 Day(s) | 10 | Male thread | M10 | 30 | No | - | [Steel] Steel | Zinc Plating | 80 | 41 | ||
MYR 82.06 | 1 Piece(s) | 1 Day(s) | 10 | Male thread | M12 | 30 | No | - | [Steel] Steel | Zinc Plating | 94 | 46 |
Loading...
Basic Information
| Main Body Type | T Shaped | T Shaped Kind | Bar | Additional Function | No |
|---|---|---|---|---|---|
| Main Body Material | Polyamide | Main Body Surface Treatment | No | Main Body Color | Matt Black |
Specification/Dimensions
-
Mounting Section Type
- Male thread
- Female Thread
-
Mounting Section Diameter (mm) and/or Diameter
-
Mounting Section Length L(mm)
-
Male Tip Machining
- No
-
Female Thread, Round hole processing
- Blind Hole
-
Mounting Section Material
- Steel
- Brass
- Steel
-
Mounting Section Surface Treatment
- No
- Zinc Plating
-
Main Body Outer Diameter D(Ø)
-
Main Body Height H(mm)
-
type
- TH-N
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
