Flange Socket
[Features]
▪ Prevents deformation of the area around the bolt head (the cupping phenomenon) thanks to a large seating area
▪ Integrated seating surface on the bolt head to avoid fatigue issues like those with spring washers, etc.
▪ Stable tightening torque and axial force with the smooth seating surface
▪ Smoother fixing, as the increased seating area permits larger holes to be drilled
▪ Reduces component count as washers are not required
Japanese Only
| Part Number |
|---|
| 070003015 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 1.35 | 1 Piece(s) | 1 Day(s) |
Loading...
Basic Information
| Nominal of Thread (M) | 3 | Length L or l (mm) | 15 | Pitch(mm) | 0.5 |
|---|---|---|---|---|---|
| Mounting Hole Shape | Hex Socket | Basic Shape | Standard (Round) | Material | SCM435 |
| Surface Treatment | Black oxide coating | Thread Type | Metric coarse | Additional Shape | Flanged |
| Sales Unit | Low Quantity (can be purchased from one) | Application | Standard | Strength Class (Steel) | 12.9 |
| Screw Type | Half Thread |

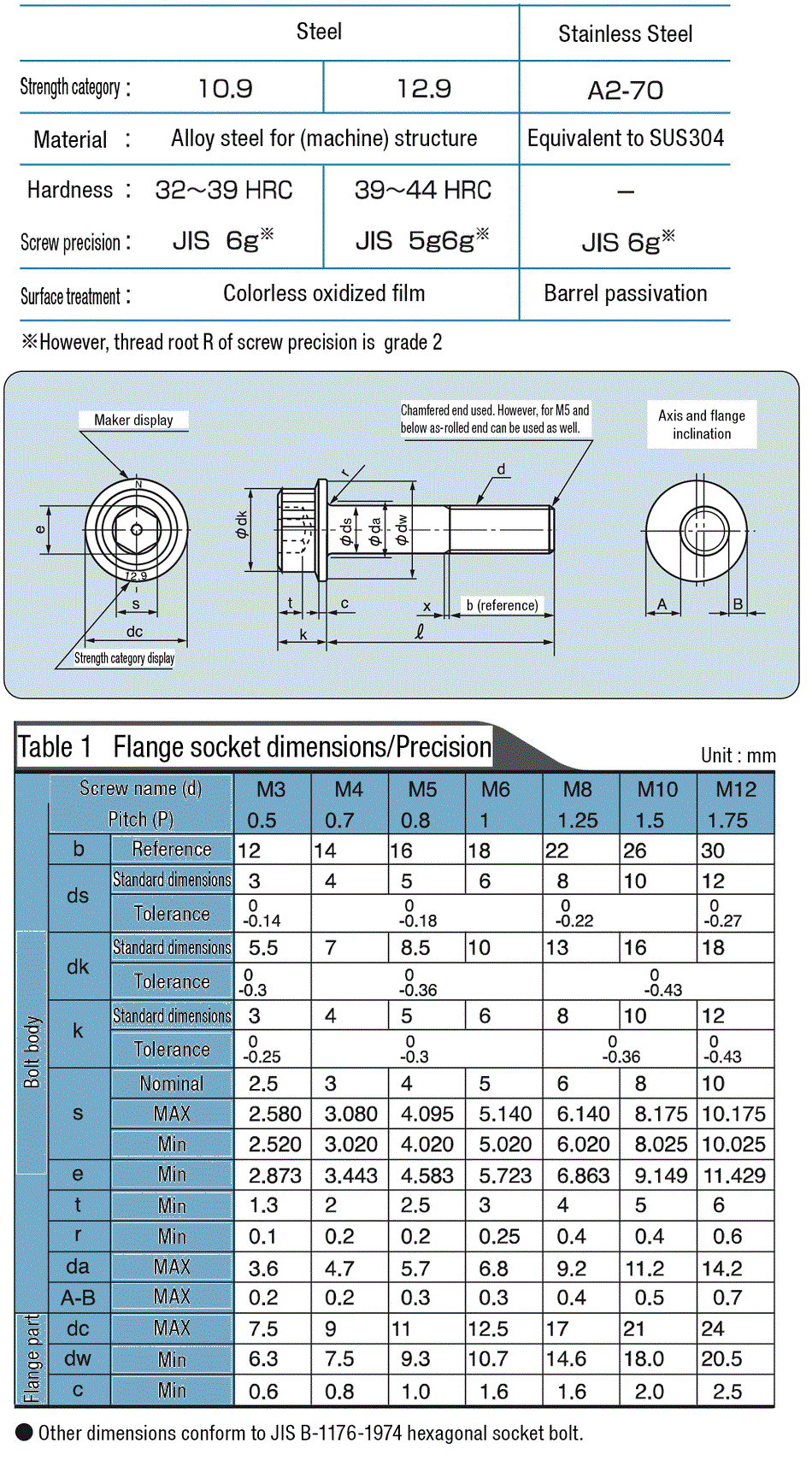

Please check the type/dimensions/specifications of the part 070003015 in the Flange Socket series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
