Stainless-Steel Flat Torque Hinge B-1109
Made from stainless steel for superior corrosion resistance. Since there is no metal friction, metal powder / noise is not generated.
Hinge torque is not really affected by environment temperature. Initial setting torque can be held for many years.
Part Number
Configured Part Number is shown.
Stainless-Steel Construction With Excellent Corrosion Resistance

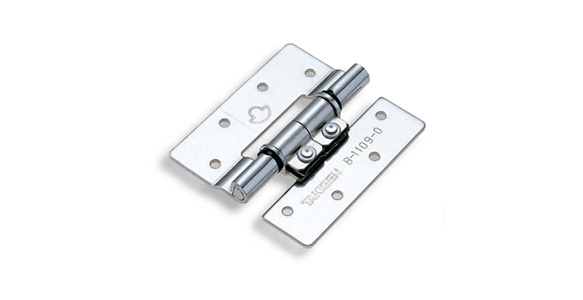

B-1109-0 external appearance

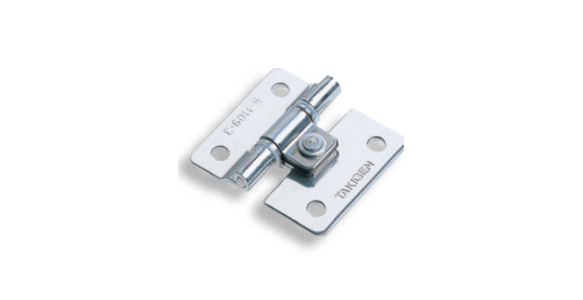

B-1109-3 external appearance

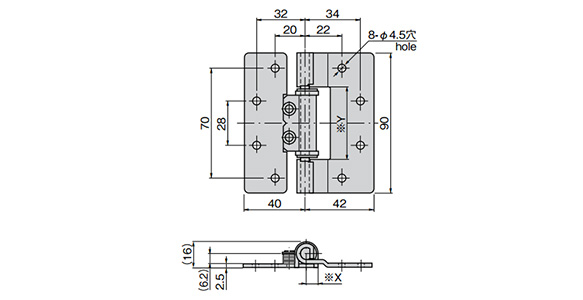

B-1109-0 dimensional drawing

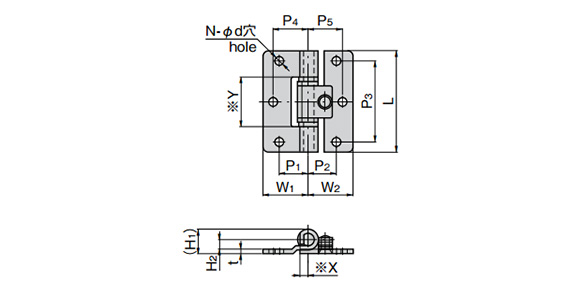

B-1109-1 to 3 dimensional drawing
Usage Method

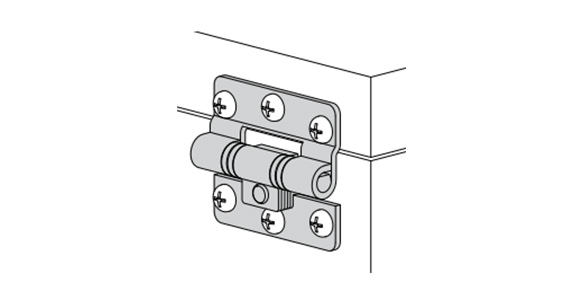

B-1109 series application example

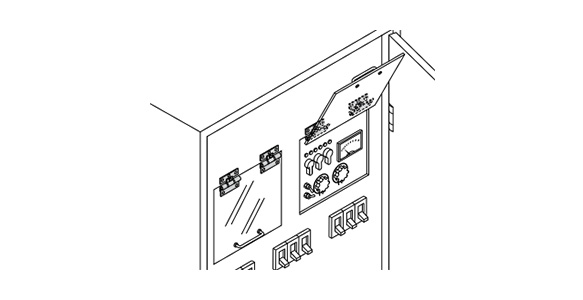

B-1109 series application example
| Product No. | L | W1 | W2 | (H1) | H2 | t | P1 | P2 | P3 | P4 | P5 | ød | N | X | Y | Rated Load Torque cN·m | Product Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B-1109-0 | See the drawings | 7.5 | 44 | 539 ±20% | 195 | ||||||||||||
| B-1109-1 | 50 | 22 | 22 | 12 | 5 | 2 | 14 | 14 | 40 | 17 | 17 | 4.2 | 6 | 4 | 23.7 | 147 ±15% | 55 |
| B-1109-2 | 40 | 16 | 21 | 8.5 | 3.7 | 1.2 | 11 | 16 | 30 | - | 16 | 3.2 | 5 | 2 | 17.2 | 78.4 ±15% | 22 |
| B-1109-3 | 30 | 15 | 20 | 7.5 | 3 | 10 | 15 | 20 | - | - | 4 | 2.5 | 14.2 | 29.4 ±15% | 14 | ||
Durability testing: 20,000 operations or more (at rated torque)
Operating temperature range: -10 to +45°C
B-1109-0; 294 to 589 cN·m
B-1109-1; 107 to 196 cN·m
B-1109-2; 39 to 98 cN·m
B-1109-3 / 9 to 49 cN·m
Mount with the shaft horizontal.
Do not use 3 or more on one cover.
Do not use lubricating oil, etc.
Loading...
Basic Information
| Main Body Type | Damper, Torque, Spring Hinge | Material | Stainless Steel Plate (SUS304) | Surface Finish | Barrel Grinding |
|---|---|---|---|---|---|
| Plate Thickness t(mm) | 1.2 | Mounting Hole | Through Hole |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
