Rotating Pull A-174

Rotating Pull A-174

When not in use it collapses flush with the surface, and is safe even in a narrow place where traffic is heavy.

PDF

Lies Flat When Not In Use, Making It Safe Even In Narrow Locations With High Traffic

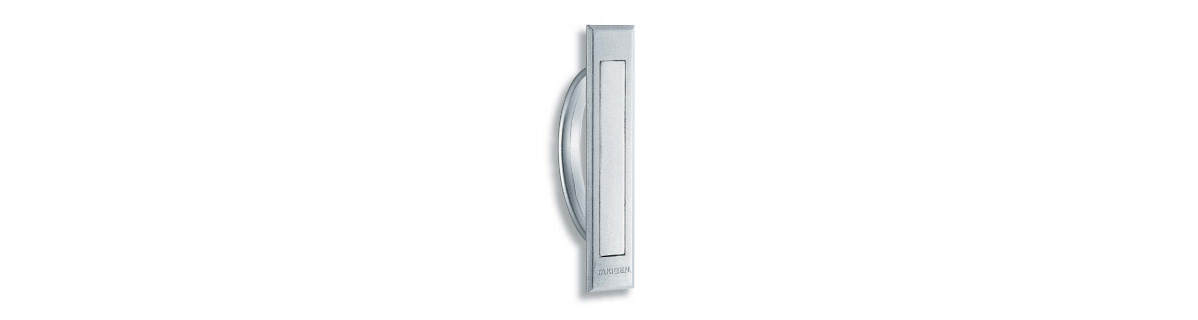

A-174-0 external appearance

A-174-0 external appearance

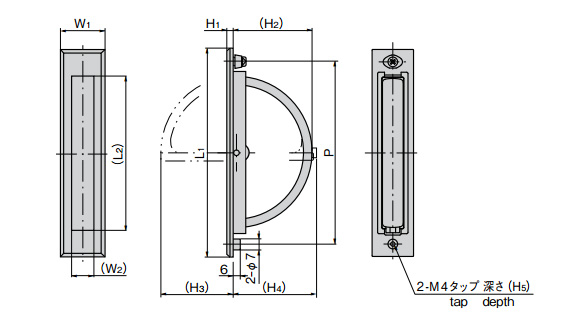

A-174 series dimensional drawing

A-174 series dimensional drawing

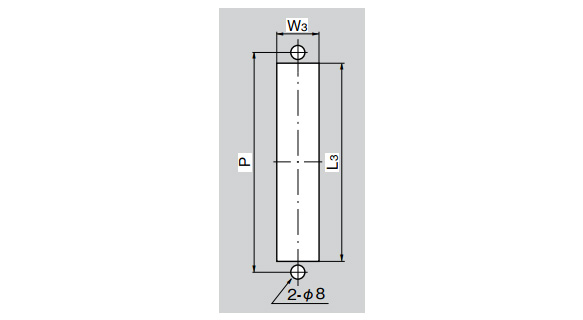

Hole drilling panel dimensions

Hole drilling panel dimensions

Product No.L1(L2)L3W1(W2)W3H1(H2)(H3)(H4)(H5)PMax. Applicable Panel ThicknessWorking Load NProduct Mass (g)
A-174-01501101183016233.558516151322.3294260
A-174-11259299251421349435251101.8165
A-174-21006673201217237294048590
A-174-375445015913224192746245
A-174-48853601810152.229233347460
Part Number
A-174-0
A-174-1
A-174-3
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipPitch P
(mm)
W2
(mm)
H2
(mm)
Product CD

MYR 74.73

1 Piece(s) 1 Day(s) 132165800394

MYR 47.19

1 Piece(s) 1 Day(s) 110144900395

MYR 29.19

1 Piece(s) 1 Day(s) 6292400397

Loading...

  1. 1


Basic Information

Main Body Type Rotation Pull Handle Shape Main Body Material Zinc Alloy (ZDC) Additional Function Storage Shape
Applied Load(N) 294 Main Body, Surface Treatment Satin chrome plating Mounting Method Female Screw
