Ball Catch C-90
Ball catch with excellent rust prevention. Ideal for hot and humid conditions.
[Features]
· Made of all stainless steel and has excellent corrosion resistance (C-1090).
· Ideal for high temperature and high humidity.
· Smooth pull in and pull out.
Part Number
Configured Part Number is shown.
C-90-1
Can Be Smoothly Removed And Inserted

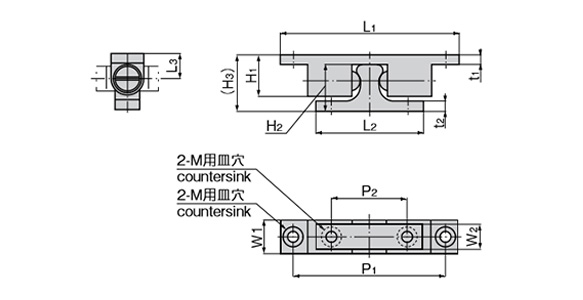

C-90 dimensional drawing

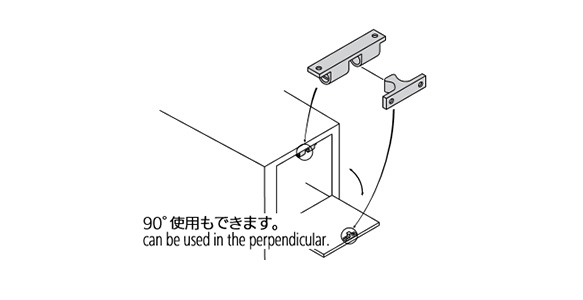

Application example
90°use is also possible
| Product No. | L1 | L2 | L3 | W1 | W2 | H1 | H2 | (H3) | t1 | t2 | P1 | P2 | M | Insertion/Removal Load (Reference) N Insertion/Removal Load (Reference) | Product Mass (g) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZDC | Removal | Insertion | SUS | ZDC | |||||||||||||
| C-90-0 | 70 | 42 | 10.5 | 13 | 10 | 17 | 19 | 23 | 4 | 4 | 60 | 30 | M4 | 50 | 50 | 78 | 70 |
| C-90-1 | 50 | 30 | 7.5 | 10 | 9 | 12 | 13 | 16 | 2.5 | 2.5 | 40 | 20 | M4 | 18.6 | 27.4 | 28 | 25 |
| C-90-2 | 43 | 25 | 6 | 8 | 7.5 | 10 | 11 | 13.5 | 2.5 | 2.5 | 35 | 16 | M3 | 8.8 | 19.6 | 16 | 15 |
| Part Number |
|---|
| C-90-1 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 15.26 | 1 Piece(s) | 1 Day(s) |
Loading...
Basic Information
| Type | Ball catching | Adsorption Power(N) | 18.6 | Length L(mm) | 50 |
|---|---|---|---|---|---|
| Width W(mm) | 10 | Mounting Method | Imposition | Mounting Hole Dia. D(mm) | M4 |
| Body Material | Zinc Alloy | Main Body Surface Treatment | Chrome Plating | Height H(mm) | 16 |
| Product Code | 20359 |
Please check the type/dimensions/specifications of the part C-90-1 in the Ball Catch C-90 series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
