Stainless-Steel Safety Lock Stay B-1474

Stainless-Steel Safety Lock Stay B-1474

[Features]
· Fully fixed type focused on safety.
· Safety lock mechanism added to conventional stay B-1460.
· Will not close unless the lock is released by pressing the button.
· SUS316 type with salt tolerance specification.
· For right and left side.

PDF

Part Number

Configured Part Number is shown.

B-1474-2-R

Safety-Conscious Completely Fixed Type

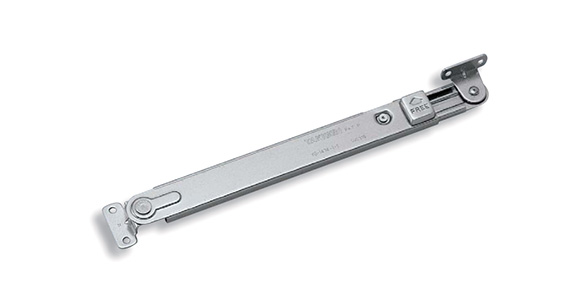

B-1474-1-R external appearance

B-1474-1-R external appearance

B-1474-1-R dimensional drawing

B-1474-1-R dimensional drawing

Reference Operation Example, Application Example

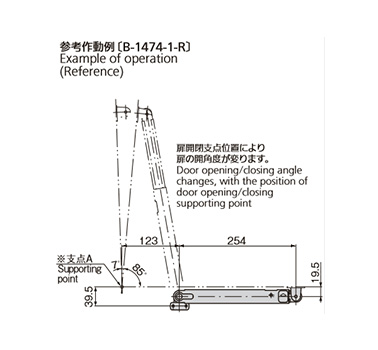

B-1474 reference operation example *The opening angle will change depending on the location of the door opening pivot point.

B-1474 reference operation example *The opening angle will change depending on the location of the door opening pivot point.

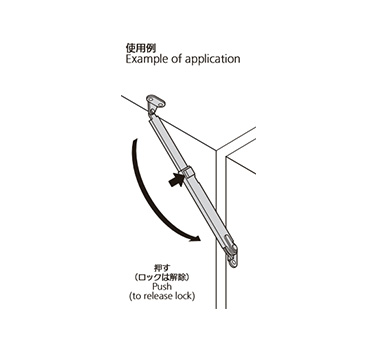

B-1474 application example

B-1474 application example

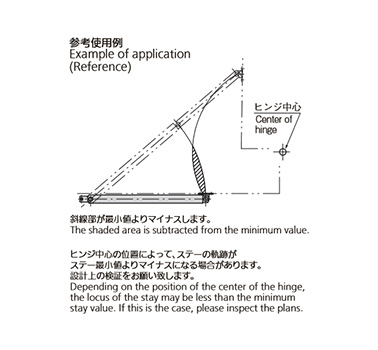

B-1474 reference application example (Hatched area is subtracted from the minimum value. Depending on the hinge center position, the stay trajectory may be less than the stay minimum value. Verification of design is required.)

B-1474 reference application example (Hatched area is subtracted from the minimum value. Depending on the hinge center position, the stay trajectory may be less than the stay minimum value. Verification of design is required.)

Product No.RemarksL1L2StrokeProduct Mass (g)
B-1474-1-LLeft type400252148290
B-1474-1-RRight type
B-1474-2-LLeft type30020298240
B-1474-2-RRight type
B-1474-3-LLeft type20015248200
B-1474-3-RRight type
Part Number
B-1474-2-R
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to Ship

MYR 213.52

1 Piece(s) 1 Day(s)

Loading...

  1. 1


Basic Information

Door Opening Manner Upward Opening Stay Type Expansion and Contraction・Slide Flexible, Slide Type Slide Flat Square Bar
Stopper Stop in full open state Stopper Release Push Button Body Material Stainless Steel Plate (SUS316)
Main Body Surface Treatment Barrel Grinding Allowable Load(N) 392 Length L at Extention(mm) 300
Stroke S(mm) 98 For Right Side•For Left Side For Right Side Product Code 11401

Please check the type/dimensions/specifications of the part B-1474-2-R in the Stainless-Steel Safety Lock Stay B-1474 series.
