Flat One-Touch Canopy Stay B-38
One-touch stay that locks with steel ball and leaf spring
[Features]
· Locks with the movement of a steel ball and leaf spring.
· For right and left side.
Part Number
Configured Part Number is shown.
Locks With Steel Ball And Plate Spring

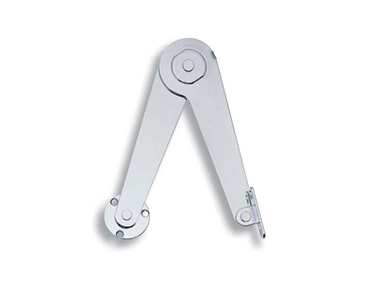

B-38-1-R external appearance

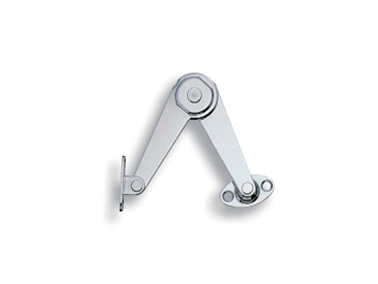

B-38-3-L external appearance

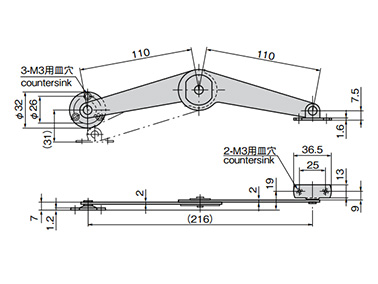

B-38-1-R dimensional drawing
B-38-2-R dimensional drawing
B-38-3-R dimensional drawing

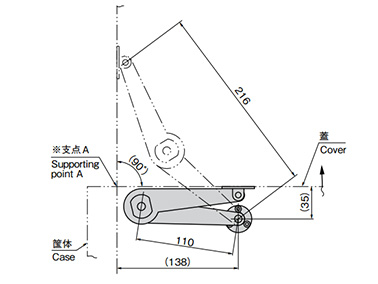

B-38-1-R reference operation example
- *Pivot point A, cover opening pivot point; the opening angle differs depending on the location of this pivot point.
| Product No. | Remarks | Product Mass (g) |
|---|---|---|
| B-38-1-L | Left type | 125 |
| B-38-1-R | Right type | 125 |
| B-38-2-L | Left type | 50 |
| B-38-2-R | Right type | 50 |
| B-38-3-L | Left type | 35 |
| B-38-3-R | Right type | 35 |
| Part Number |
|---|
| B-38-1-L |
| B-38-2-L |
| B-38-3-L |
| B-38-3-R |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Length L at Extention (mm) | For Right Side•For Left Side | Product Code |
|---|---|---|---|---|---|---|---|
MYR 37.43 | 1 Piece(s) | 1 Day(s) | 216 | For Left Side | 10114 | ||
MYR 25.39 | 1 Piece(s) | 1 Day(s) | 121 | For Left Side | 10116 | ||
MYR 21.59 | 1 Piece(s) | 1 Day(s) | 104 | For Left Side | 10118 | ||
MYR 21.59 | 1 Piece(s) | 1 Day(s) | 104 | For Right Side | 10119 |
Loading...
Basic Information
| Door Opening Manner | Canopy | Stay Type | Rotation | Rotation Type | Flap |
|---|---|---|---|---|---|
| Stopper | Stop in full open state | Stopper Release | No | Body Material | Cold Rolled Steel Plate |
| Main Body Surface Treatment | Chrome plating |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
