Stainless-Steel Knurled Knob Fastener With Spring A-1039
The feeling of the operation is nice due to the force of the spring, and when removing the door using that same force, you can flip up the knurled knob, allowing you to judge the disengagement point and improve its efficiency.
Since the knob part is fixed to the detaching position of the door, the knob does not come off completely from the door and the work can be finished quickly.
Part Number
Configured Part Number is shown.
A-1039-1
Improved Usability

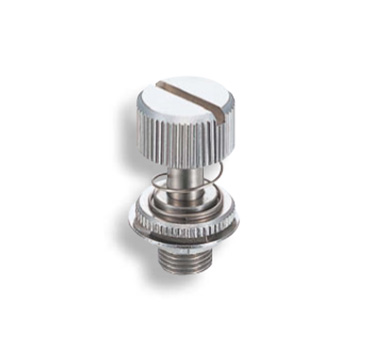

A-1039 external appearance

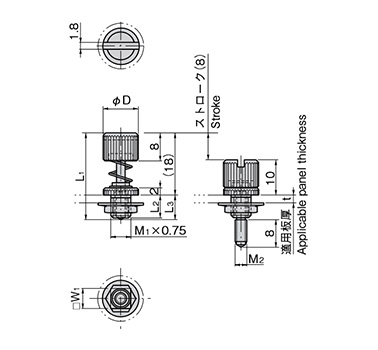

A-1039 dimensional drawing

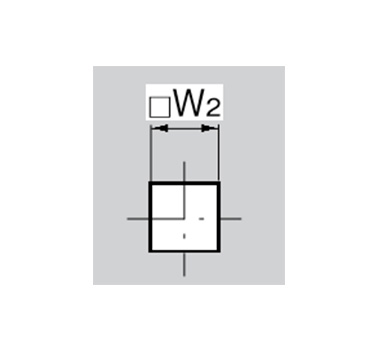

Panel hole drilling dimensions

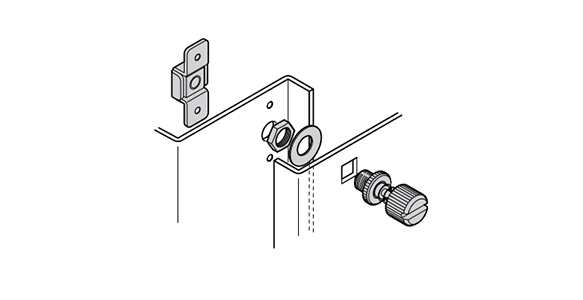

Mounting method A

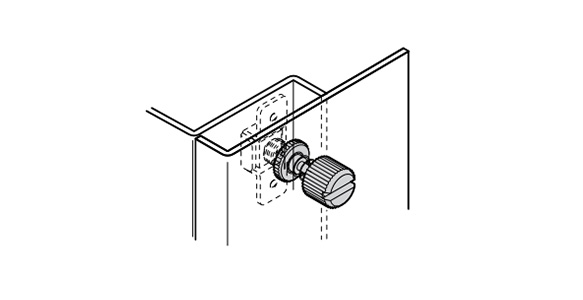

Mounting method B
| Product No. | Remarks | L1 | L2 | L3 | W1 | W2 | øD | M1 | M2 | t | Product Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A-1039-1 | For M3 | 25 | 6.5 | 7 | 6 | 6.5 | 10 | 6 | M3 | 0.8 to 2.3 | 7 |
| A-1039-2 | For M4 | 25 | 6.5 | 7 | 6 | 6.5 | 11 | 6 | M4 | 0.8 to 2.3 | 8 |
| A-1039-3 | For M5 | 27 | 8 | 9 | 8 | 8.5 | 13 | 8 | M5 | 0.8 to 2.3 | 13 |
| A-1039-4 | For M6 | 27 | 8 | 9 | 8 | 8.5 | 14 | 8 | M6 | 0.8 to 2.3 | 16 |
| Part Number |
|---|
| A-1039-1 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 25.45 | 1 Piece(s) | 1 Day(s) |
Loading...
Basic Information
| Main Body, Type | Round Shape | Mounting Section Type | Male thread | Mounting Section Dia. d (mm) or Nominal Dia. | M3 |
|---|---|---|---|---|---|
| Mounting Section, Length L(mm) | 7 | Round Shape, Type | Cylindrical Shape | Side Machined | Knurling |
| Main Body Material | Stainless Steel Rod (SUS303) | Main Body, Surface Treatment | Buffing | Mounting Section, Material | Stainless Steel Rod |
| Mounting Section, Surface Treatment | No | Main Body, Outer Dia. D(Ø) | 10 | Main Body, Height t(mm) | 10 |
| Product Code | 3156 |
Please check the type/dimensions/specifications of the part A-1039-1 in the Stainless-Steel Knurled Knob Fastener With Spring A-1039 series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
