Stainless-Steel Large Slide Bolt C-1247
Made from stainless steel for superior corrosion resistance.
Part Number
Configured Part Number is shown.
Stainless-Steel Construction With Excellent Corrosion Resistance

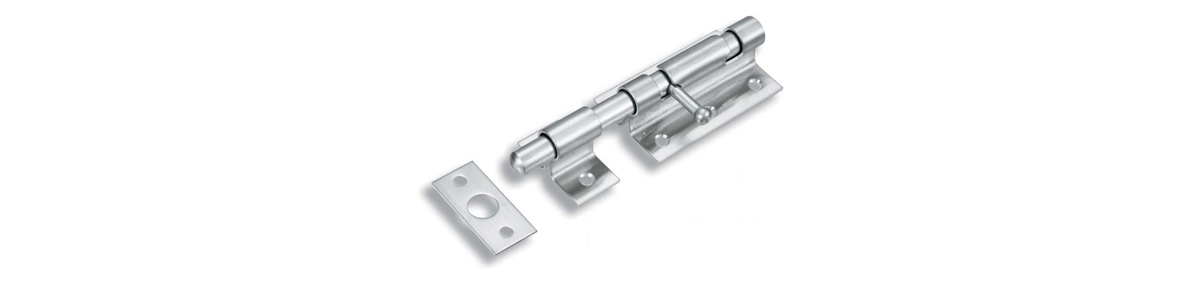

C-1247-3 external appearance

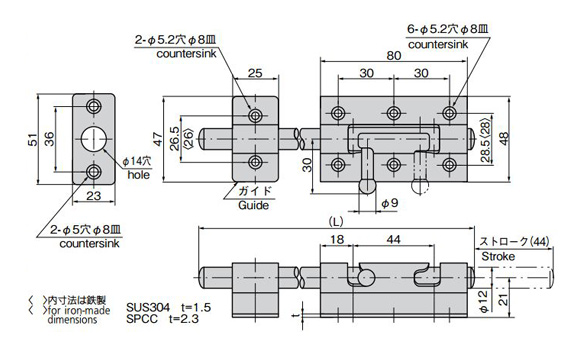

C-1247-1 to 3 dimensional drawing *Stainless steel

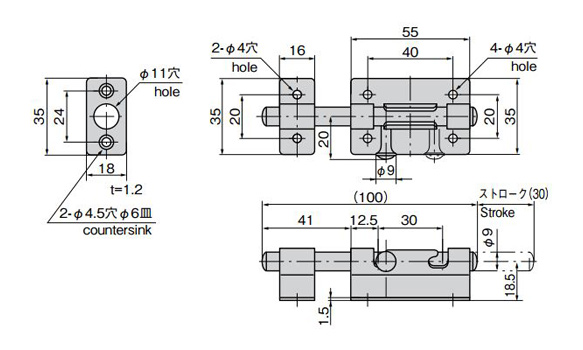

C-1247-4 dimensional drawing *Stainless steel
| Product No. | (L) | Product Mass (g) | |
|---|---|---|---|
| SUS | SUS | SPCC | |
| C-1247-1 | 450 | 524 | 650 |
| C-1247-2 | 300 | 392 | 485 |
| C-1247-3 | 150 | 260 | 330 |
| C-1247-4 | See the drawing | 126 | |
| Part Number |
|---|
| C-1247-2 |
| C-1247-3 |
| C-1247-4 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Full Length (mm) | Overall width (mm) | Stroke (mm) | Surface Finish | Product Code |
|---|---|---|---|---|---|---|---|---|---|
MYR 66.50 | 1 Piece(s) | 1 Day(s) | 300 | 48 | 44 | Gloss barrel polishing | 20965 | ||
MYR 50.23 | 1 Piece(s) | 1 Day(s) | 150 | 48 | 44 | Gloss barrel polishing | 20966 | ||
MYR 33.31 | 1 Piece(s) | 1 Day(s) | 100 | 35 | 30 | Electrolytic Polishing | 21463 |
Loading...
Basic Information
| Mounting Method | Imposition Type | Material | Cold rolled stainless steel plate |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
