Popular Solenoid Lock (Locked When Turned On) LE-33-22
Electric lock for small and medium sized doors. Solenoid type electric lock that turns on power supply and locks (locked when energized type)
Part Number
Configured Part Number is shown.
LE-33-22
Solenoid Type That Locks When Turned ON

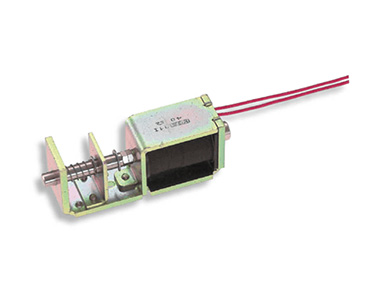

LE-33-22 external appearance
LE-33-22 dimensional drawing
LE-33-23 dimensional drawing
| Product No. | Rated Current (mA) | Power Consumption (W) | Latch Extension Force (Horizontal) N | Product Mass (g) |
|---|---|---|---|---|
| LE-33-22 | 145 | 3.5 | 0.7 | 133 |
| LE-33-23 | 104 | 2.5 | 0.25 | 46 |
| Part Number |
|---|
| LE-33-22 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 101.14 | 1 Piece(s) | 1 Day(s) |
Loading...
Basic Information
| Main Body Overall Length(mm) | 70 | Main Body Width(mm) | 20 | Main Body Height(mm) | 29.4 |
|---|---|---|---|---|---|
| Stroke(mm) | 5 | Latch extrusion force(N) | 0.7 | Ambient Operating Temperature(℃) | -5℃～+40℃ |
| Ambient Operating Humidity | 85% RH or Less | Part Number | Energized locking type | Lead Wire(mm) | 200 |
| Product Code | 50234 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
