Side Push/Pull Toggle Clamp
Suited for inspection jigs, welding jigs, and other assembly or machining jigs.
Japanese Only
Part Number
Configured Part Number is shown.
TPPM50
| Part Number |
|---|
| TPPM50 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 73.73 | 1 Piece(s) | 1 Day(s) |
Loading...
Basic Information
| Type | Hold Down Horizontal Handle | Attaching Method | No base | Tightening Force (Range Selectable)(N) | Up to 1399 |
|---|---|---|---|---|---|
| Body Material | Steel | Clamp Screw | fixation | Clamp Screw Size | M6 |
| Clamp Screw Material | Steel | Arm Length L(mm) | 20 | Tightening Force(N) | 910 |
| Attaching Portion Shape | Screw | Tip Screw Type | Steel Bolt | Full Length(mm) | 64 |

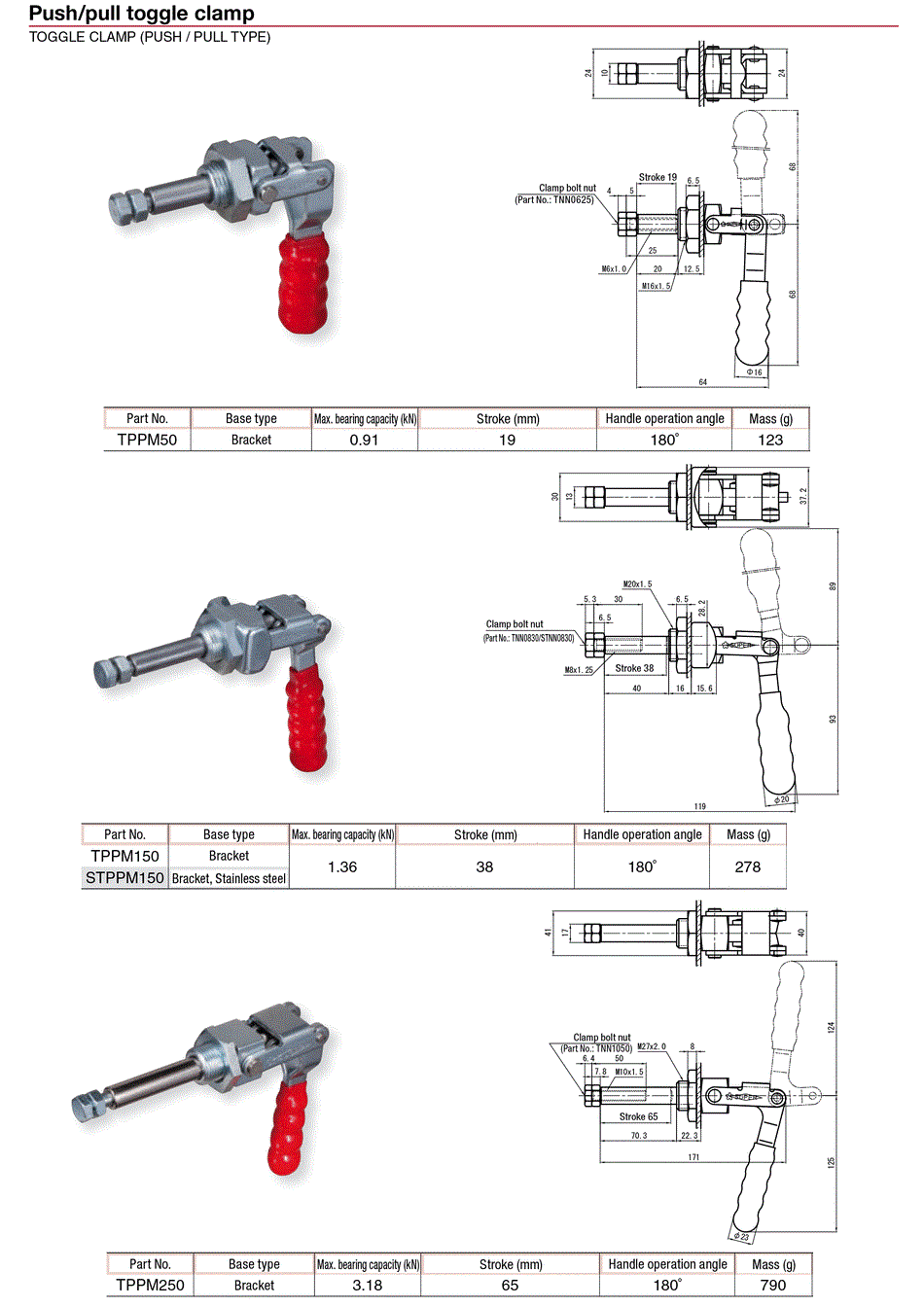

Please check the type/dimensions/specifications of the part TPPM50 in the Side Push/Pull Toggle Clamp series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
