Flange Socket【1-200 Pieces Per Package】
Able to prevent tightened subsidence of the object seating surface (Cupping phenomena) because of its large seating area.
Japanese Only
| Part Number |
|---|
| CSHHF-ST3W-M4-8 |
| CSHHF-ST3W-M4-15 |
| CSHHF-STGSC-M8-22 |
| CSHHF-STGSC-M8-70 |
| Part Number | Standard Unit Price | Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Days to Ship | Nominal of Thread (M) | Length L or l (mm) | Pitch (mm) | Surface Treatment | Sales Unit | Screw Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 1.29 | 1 Piece(s) | 3 Day(s) or more | 4 | 8 | 0.7 | [Trivalent Chromate] Trivalent White | Low Quantity (can be purchased from one) | Complete thread | |||
MYR 1.35 | 1 Piece(s) | 4 Day(s) or more | 4 | 15 | 0.7 | [Trivalent Chromate] Trivalent White | Low Quantity (can be purchased from one) | Complete thread | |||
MYR 640.56 | 200 Pieces Per Package | 1 Pack(s) | 9 Day(s) or more | 8 | 22 | 1.25 | [Tin Plating] Tin cobalt | Box/package | Complete thread | ||
MYR 865.33 | 100 Pieces Per Package | 1 Pack(s) | 9 Day(s) or more | 8 | 70 | 1.25 | [Tin Plating] Tin cobalt | Box/package | Half Thread |
Loading...
Basic Information
| Mounting Hole Shape | Hex Socket | Basic Shape | Standard (Round) | Material | Steel |
|---|---|---|---|---|---|
| Thread Type | Metric coarse | Additional Shape | Flanged | Application | Standard |

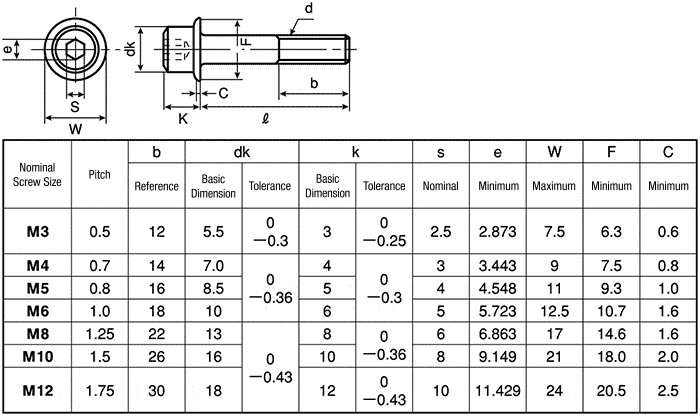

Specification/Dimensions
-
Nominal of Thread (M)
-
Length L or l (mm)
-
Pitch(mm)
-
Surface Treatment
- Trivalent Chromate
- Tin Plating
- Trivalent Chromate
-
Sales Unit
- Low Quantity (can be purchased from one)
- Box/package
-
Screw Type
- Complete thread
- Half Thread
-
type
- CSHHF-ST3W-M
- CSHHF-STGSC-M
Days to Ship
-
- All
- 3 Day(s) or Less
- 4 Day(s) or Less
- 9 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
