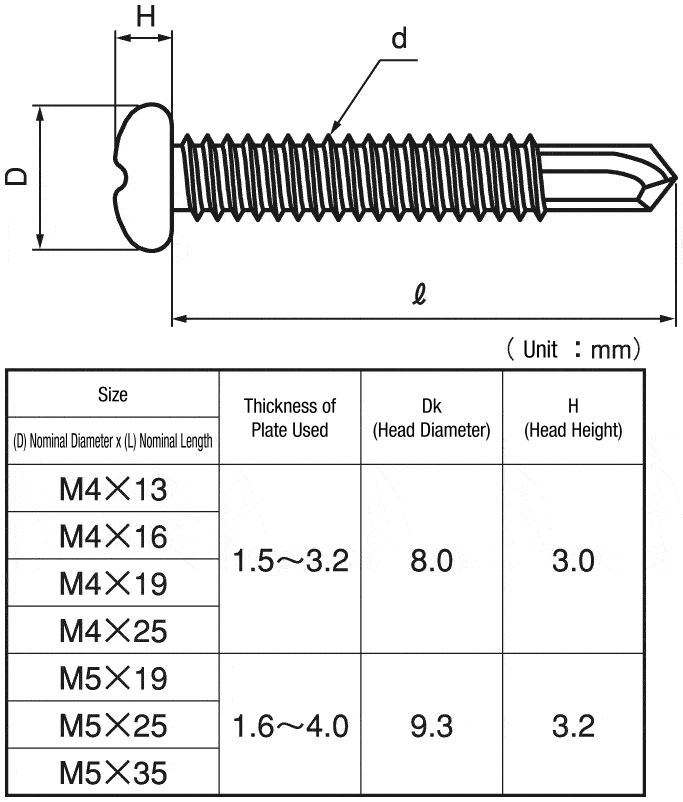

Pan Head ASL503MRX Screw
[Detailed shape] Pan head
[Mount hole shape] Phillips head
[Basic shape] Standard (round)
[Material] Stainless steel
[Surface treatment] None
[Thread ridge type] Self-drilling
[Tip shape] Conical tip
[Usage] Standard
[Nominal designation (M)] 3.5 4 5
[Length (mm)] 13 16 19 25 35
[Sales unit] Loose (can be purchased individually) box / pack
Part Number
Configured Part Number is shown.
CSPPNT-SUS-D4-25
- Download
Product Details - CAD Data unavailable
Basic Information
| Thread Nominal (M) | 4 | Length L (mm) | 25 | Detailed Shape | Pan |
|---|---|---|---|---|---|
| Mounting Hole Shape | Phillips | Basic Shape | Standard (Round) | Material | Stainless Steel |
| Surface Treatment | No | Thread Type | Drill Screw | Tip Shape | Cone Point |
| Sales Unit | Low Quantity (can be purchased from one) | Application | Standard |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
