Linear bushing round flange long type
Brand-name products provided by MISUMI-VONA are carefully-selected from the products of Asian manufacturers and offered based on customers' needs. Make your selection based on your individual needs. KBS , since its founding in 1995, has steadily built a domestic following in China. The linear bushings, the company's leading products, top the market in China.
Japanese Only
Part Number
Configured Part Number is shown.
LKBMF16LUU
Basic Information
| Type | Flange | Style | Standard | Flange Type | Standard Flange |
|---|---|---|---|---|---|
| Shaft diameter(Ø) | 16 | Overall Length L(mm) | 70 | Outer Cylinder Material | Bearing Steel |
| Outer Cylinder Surface Treatment | No Surface Treatment | Motion | Linear Motion | Lubrication Type | No |
| Ball Recirculating Type | Single | Outer Dia. D(Ø) | 28 | Basic Load Rating: Dynamic Load (Details)(N) | 1,230 |
| Basic Load Rating: Static Load(N) | 2,350 | Accuracy | Standard Grade | Inscribed Circle Dia. Tolerance (Negative Side)(mm) | -0.01 |
| Eccentricity(µm) | 15 | Types | Flanged End Face | Length | Long |
| Flange Shape | Round Flanged | The material of a ball | Bearing Steel | Seal | Both end seal |
Please check the type/dimensions/specifications of the part LKBMF16LUU in the Linear bushing round flange long type series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- LM Stroke Bushing (Straight/Without Seal), ST Type, ST-B Type
- Square bushing square flange type [LKBMKUU]
- Flanged Linear Bushings - Standard Type - Single Type - with Square Flange
- Flanged Linear Bushing - Spigot Joint - Single Type - with Square Flange [LMYMKPUU]
- Flanged Linear Bushings LFDB-Shaped Double Boss-Positioned Round-Shaped Flanges
- Flanged Linear Bushings LFDTB-Shaped Double Boss-Positioned T-Shaped Flange
- Maintenance-freelinear bushing housingCH-MF shapesinglecompactaluminum case
- Linear Bushing SBF Series (Round Flange Type)
Customers Who Viewed This Item Also Viewed
-

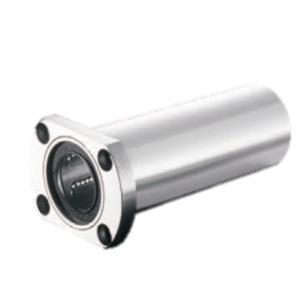

![Linear bushing two-face flange long type [LKBMHLUU]](//stg0-my.misumi-ec.com/linked/material/mech/KBS1/PHOTO/221005196972.jpg?$product_recommend_b$)
