Push Type Toggle Clamp ST-HTC
[Application]
· Used as an assembly, inspection, and welding clamp.
[Features]
· Low-cost compared to other products.
Japanese Only
Part Number
Configured Part Number is shown.
ST-HTC603PS
Economy Push Type Toggle Clamp

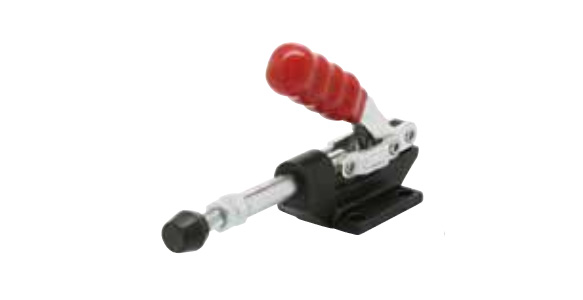

ST-HTC603PS external appearance

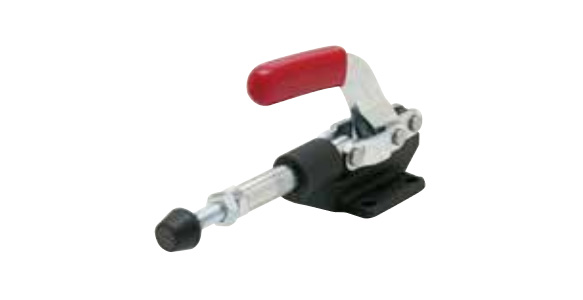

ST-HTC608PS external appearance

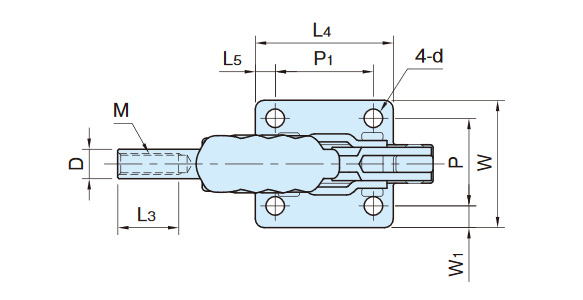

ST-HTC-PS dimensional drawing

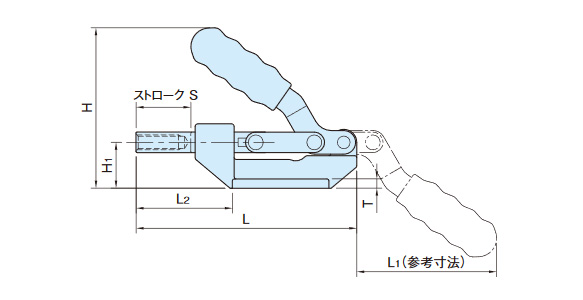

ST-HTC-PS dimensional drawing
| Main Body | Base | Shaft |
|---|---|---|
| SPCC | SCM440 | S45C |
| Grip | Bolt, Nut | Pad |
| Polyvinyl chloride | SUM41 | Chloroprene rubber (CR) |
| Part Number | S | M | L3 | D | H1 | L | H | W | L2 | L4 | T | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-HTC603PS | 31.8 | M8 | 25 | 11 | 24 | 123 | 85.5 | 48 | 52 | 52.1 | 5 | 6.7 |
| ST-HTC608PS | 41.4 | M10 | 30 | 15.7 | 32 | 153 | 103 | 57 | 76.8 | 57 | 6 | 8.5 |
| Part Number | P | P1 | W1 | L5 | L1 | Clamping Pressure (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|
| ST-HTC603PS | 33 | 36.5 | 7.5 | 7.8 | 78 | 3 | 380 |
| ST-HTC608PS | 41.4 | 41.4 | 7.8 | 7.8 | 122 | 4 | 570 |
| Part Number |
|---|
| ST-HTC603PS |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 124.47 | 1 Piece(s) | 1 Day(s) |
Loading...
Basic Information
| Type | Hold Down Horizontal Handle | Attaching Method | Flanged | Tightening Force (Range Selectable)(N) | 2000 to 3099 |
|---|---|---|---|---|---|
| Body Material | SPCC | Clamp Screw | fixation | Clamp Screw Size | M8 |
| Clamp Screw Material | SUM41 (Bolt, Nut)+Chloroprene Rubber (Pad) | Arm Height H(mm) | 24 | Arm Length L(mm) | 52 |
| Tightening Force(N) | 3000 | Tip Screw Type | Bolt with Rubber |
Please check the type/dimensions/specifications of the part ST-HTC603PS in the Push Type Toggle Clamp ST-HTC series.
