End Cap For Square Pipe (NDEQ)
[Features]
· When inserting the end cap into the pipe, the tapered cavity inside the end cap pressurizes the inner wall of the pipe and tightening the nut makes it difficult to come out.
Part Number
Configured Part Number is shown.
NDEQ25-M8
Outline Drawing And Dimensions For End Cap For Square Pipe

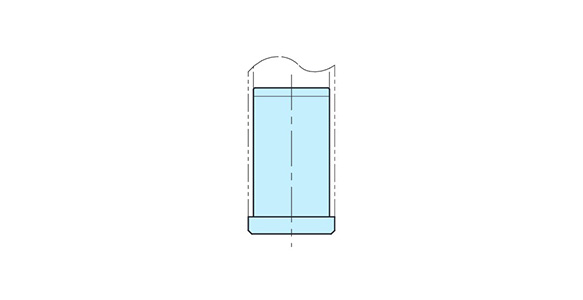

NDEQ20/NDEQ30A/ NDEQ25/ NDEQ30B outline drawings

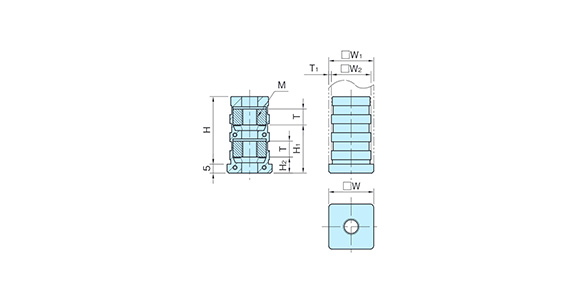

NDEQ25/ NDEQ30A outline drawings
| Model Number | W | W1 | T1 | W2 | M | T | H1 | H2 | H | Allowable Load (kN) Note) | Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NDEQ20-M8 | 20 | 20 | 1.5 | 17 | M8 × 1.25 | 6.5 | 30 | 10.5 | 37 | 3 | 17 |
| NDEQ25-M8 | 25 | 25 | 1.5 | 22 | M8 × 1.25 | 6.5 | 30 | 10.5 | 36 | 23 | |
| NDEQ25-M10 | M10 × 1.5 | 8 | 29.5 | 10 | 37 | 33 | |||||
| NDEQ25-M12 | M12 × 1.75 | 10 | 27 | 8 | 41 | ||||||
| NDEQ30A-M8 | 30 | 30 | 1.5 | 27 | M8 × 1.25 | 6.5 | 30 | 10.5 | 37 | 32 | |
| NDEQ30A-M10 | M10 × 1.5 | 8 | 29.5 | 10 | 44 | ||||||
| NDEQ30B-M8 | 2 | 26 | M8 × 1.25 | 6.5 | 30 | 10 | 31 | ||||
| NDEQ30B-M10 | M10 × 1.5 | 8 | 29.5 | 42 |
Technical Data
Usable temperature -30 to +100°C
| Part Number |
|---|
| NDEQ25-M8 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS |
|---|---|---|---|---|---|
MYR 16.78 | 1 Piece(s) | 1 Day(s) | 10 |
Loading...
Basic Information
| Type | Accessory | Accessory Type | End Cap | Screw Size M | M8x1.25 |
|---|---|---|---|---|---|
| Material | Polyamide Matte Black | Width W(□) | 25 | Length W2(□) | 22 |
Please check the type/dimensions/specifications of the part NDEQ25-M8 in the End Cap For Square Pipe (NDEQ) series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
