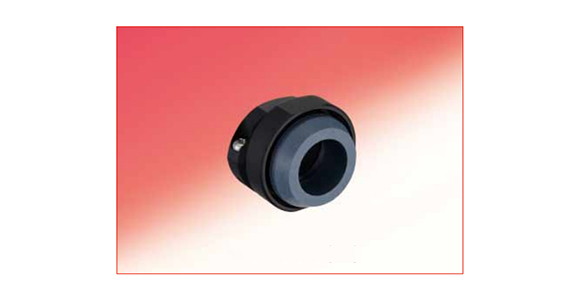

Compatible Cord Clamp For Circular Connectors
This is a cord clamp for the RM/HR22 series waterproof connector.
Japanese Only
Part Number
Configured Part Number is shown.
Compatible Cord Clamp For Circular Connectors
Standard Type
JR13WCC-6(71)

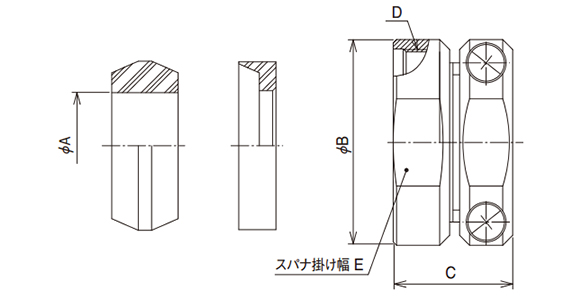

Outline drawing (representative image)
| Product No. | HRS No. | øA | øB | C | D | E |
|---|---|---|---|---|---|---|
| JR13WCC-4(71) | 114-2045-0 71 | 4 | 20 | 17 | M16 × 0.75 | 17 |
| JR13WCC-5(71) | 114-2046-3 71 | 5 | ||||
| JR13WCC-6(71) | 114-2047-6 71 | 6 | ||||
| JR13WCC-7(71) | 114-2048-9 71 | 7 | ||||
| JR13WCC-8(71) | 114-2049-1 71 | 8 | ||||
| JR13WCC-9(71) | 114-2050-0 71 | 9 | ||||
| JR13WCC-10(71) | 114-2051-3 71 | 10 |
Simple Type
JR13WCC-A6(71)

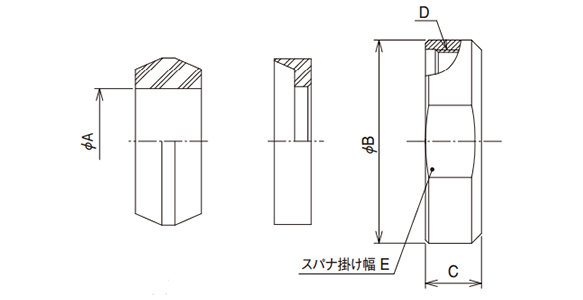

Outline drawing (representative image)
| Product No. | HRS No. | øA | øB | C | D | E |
|---|---|---|---|---|---|---|
| JR13WCCA-4(71) | 114-2069-9 71 | 4 | 19 | 7.5 | M16 × 0.75 | 17 |
| JR13WCCA-5(71) | 114-2070-8 71 | 5 | ||||
| JR13WCCA-6(71) | 114-2071-0 71 | 6 | ||||
| JR13WCCA-7(71) | 114-2072-3 71 | 7 | ||||
| JR13WCCA-8(71) | 114-2073-6 71 | 8 | ||||
| JR13WCCA-9(71) | 114-2074-9 71 | 9 | ||||
| JR13WCCA-10(71) | 114-2075-1 71 | 10 |
- *Because too high of a cable clamping force is undesirable for simple cord clamps, use only after confirming the cable clamping force.
| Part Number |
|---|
| JR13WCC-10(72) |
| JR13WCCA-10(72) |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Features |
|---|---|---|---|---|---|
MYR 42.81 | 1 Piece(s) | 3 Day(s) or more | Screw tightening | ||
MYR 34.21 | 1 Piece(s) | 3 Day(s) or more | Without screw |
Loading...
Basic Information
| Connector Shape | Round shape | Connector series initials | J·K·L | J·K·L | JR |
|---|---|---|---|---|---|
| Protection function (environmentally resistant) | IP67 | Shell Size | 13 | Plating of part touching terminal | No terminal |
| Product Category | Cord clamp | Specifications | For RM15WTPZ / For RM15WTLP / For HR22-12WTLP | Conforming cable outer diameter(mm) | φ10 |
| Operating Temperature Range(°C) | -25 to +85 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
